Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Enterprise
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huawei 3g Wifi Wireless Router AR151W-P Support NGN IMSUS$ 200 - 1,000MOQ: 1 Piece -
Huawei Wireless 3G WiFi Router AR151 IMSUS$ 200 - 500MOQ: 1 Piece
-
Huawei IMS NGN Wireless Router AR207 3G WifiUS$ 200 - 1,000MOQ: 1 Piece
-
Huawei PST Wireless AR158E RouterUS$ 200 - 1,000MOQ: 1 Piece
-
Cisco ASR 1006 RouterNegotiableMOQ: 1 Piece
Products Status
Stock
Type
Wireless
Application
Enterprise
Function
Firewall, QoS, VPN, Other, Firewall, QoS, VPN, ACL,ARP security,ICMP attack defense, URPF, CPCAR
LAN Ports
4
WAN Ports
Other, 1 x G.SHDSL 8-wire
Certification
UL/GS/CE/CB/RoHS/WEEE/FCC
Brand Name
HUAWEI
Model Number
AR158E
Place of Origin
Guangdong, China
HUAWEI Router AR150
Huawei’s next-generation routers, the AR 150 and AR 200 series are designed for enterprise branch offices and small businesses, delivering a comprehensive set of services, including routing, switching, voice, security, and wireless access. The AR 150 and AR 200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The AR 150 and AR 200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.
The AR 150 and AR 200 series are fixed interface routers that provide a comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The AR 150 and AR 200 also employ embedded hardware encryption for security as well as a voice Digital Signal Processor (DSP) for voice services.
| Item | AR158E | ||||||||||
| Hardware | |||||||||||
| Forwarding performance(64 Byte) | 300 Kpps | ||||||||||
| Forwarding performance(with services) | 100 Mbps | ||||||||||
| Fixed WAN ports | 1 x ADSL2+ Annex A/M, 1 x FE (the interface LAN 0 of which can be used as one WAN interface) | ||||||||||
| Fixed Ethernet switching ports | 4 x FE | ||||||||||
| Fixed voice ports | |||||||||||
| Integrated 3G | |||||||||||
| USB 2.0 ports | 1 | ||||||||||
| Serial auxiliary/console ports | 1 | ||||||||||
| Memory size (default/maximum) | 512 MB | ||||||||||
| Flash memory (default/maximum) | 512 MB | ||||||||||
| Maximum power | 24W | ||||||||||
| Power supply (AC) | 100 V to 240 V | ||||||||||
| Frequency | 50/60 Hz | ||||||||||
| Dimensions (H x W x D) | 44.5 mm x 300 mm x 220 mm (1.75 in. x 11.8 in. x 8.66 in.) | ||||||||||
| Operating temperature | 0°C to 40°C | ||||||||||
| Relative humidity | 5% to 90% (non-condensing) | ||||||||||
| Software | |||||||||||
| Basic feature | DHCP server/client/relay, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, TCP, UDP, ARP, Sub interface management | ||||||||||
| WAN Standards compliance | G.SHDSL.bit ITU-T G.991.2 | ||||||||||
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP | ||||||||||
| WLAN(AC) | AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management) | ||||||||||
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc. | ||||||||||
| IPv4 unicast routing | Routing policy, static route, RIP v1/v2, OSPF, IS-IS, BGP | ||||||||||
| IPv6 unicast routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+ | ||||||||||
| Multicast | IGMP version1/2/3, PIM SM, PIM DM, MSDP | ||||||||||
| VPN | IPSec VPN, GRE VPN, DSVPN(except AR150 series), SSL VPN(except AR150 series), L2TP VPN | ||||||||||
| QoS | Diffserv mode, Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), HQoS | ||||||||||
| Security | ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI | ||||||||||
| Management and maintenance | Upgrade management, device management, GTL, SNMP(v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, NetConf, CLI | ||||||||||

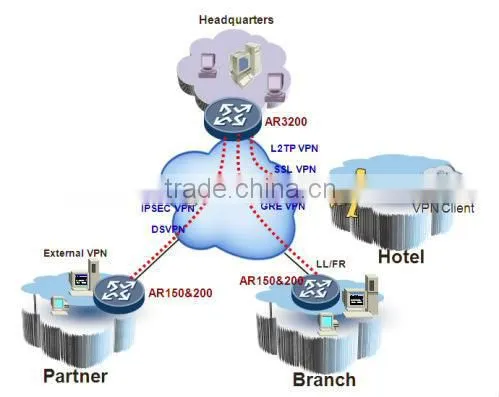

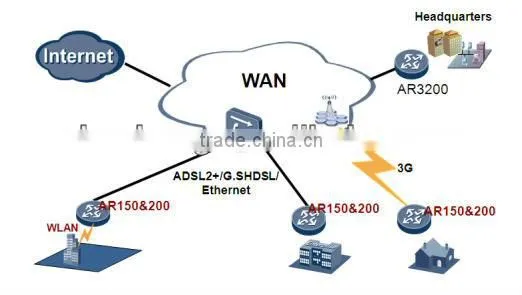

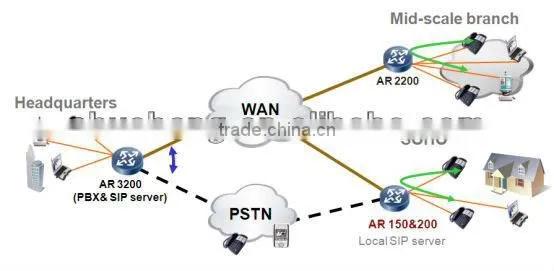

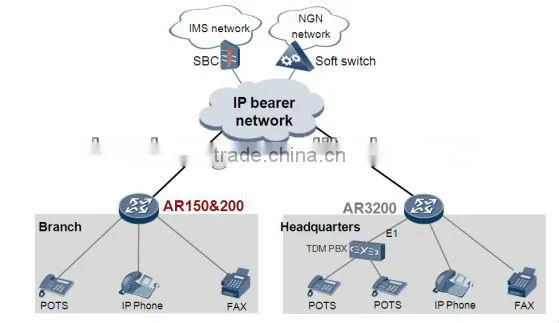

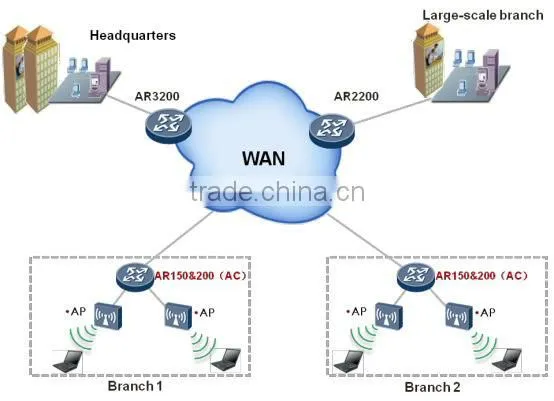

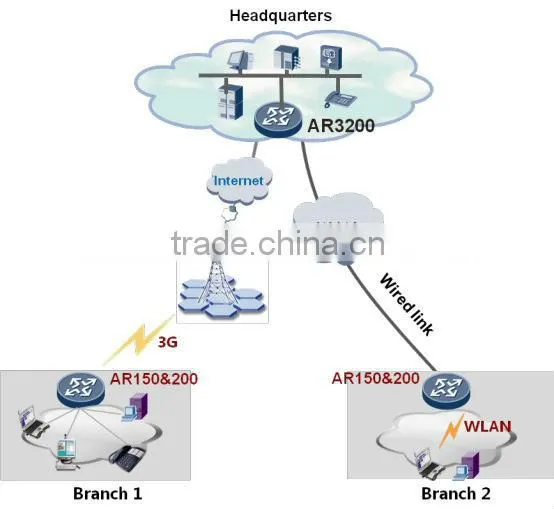

Deployment Scenarios
