Goldweb GD-W810N ADSL2/2+  Wireless modem

1 Introduction
The GD-W810N is an ADSL access device that supports multiple line modes. It provides one 10/100Base-T Ethernet interface at the user end. The device provides high-speed ADSL broadband connection to the Internet or Intranet for high-end users, such as net cafes and office users. The device provides high performance access to the Internet, downlink up to 24 Mbps and uplink up to 1 Mbps.
The device supports WLAN access. It can connect to the Internet through a WLAN AP or WLAN device. It complies with IEEE 802.11, 802.11b/g/n specifications, WEP, WPA, and WPA2 security specifications.



2 Safety Precautions
Follow the following instructions to prevent the device from risks and damage caused by fire or electric power:
  Use volume labels to mark the type of power.
  Use the power adapter packed within the device package.
  Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet or damaged lines and plugs may cause electric shock or fire accident. Check the power cords regularly. If you find any damage, replace it at once.
  Proper space left for heat dissipation is necessary to avoid damage caused by overheating to the device. The long and thin holes on the device are designed for heat dissipation to ensure that the device works normally.

  Do not cover these heat dissipation holes.

  Do not put this device close to a place where a heat source exists or high temperature occurs. Avoid the device from direct  sunshine.
  Do not put this device close to a place where it is over damp or watery. Do not spill any fluid on this device.
  Do not connect this device to any PCs or electronic products, unless our customer engineer or your broadband provider instructs you to do this, because any wrong connection may cause power or fire risk.
  Do not place this device on an unstable surface or support.



3 System Requirements
Recommended system requirements are as follows:
  A 10/100 base-T Ethernet card is installed on your PC
  A hub or Switch. (connected to several PCs through one of Ethernet interfaces on the device)
  Operating system: Windows 98SE, Windows 2000, Windows ME, Windows XP
  Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or higher



4 Features
The device supports the following features:
  Various line modes
  External PPPoE dial-up access
  Internal PPPoE/PPPoA dial-up access
  1483Briged/1483Routed/MER/IPoA access
  Multiple PVCs (up to eight) and these PVCs can be isolated from each other
  A single PVC with multiple sessions
  Multiple PVCs with multiple sessions
  802.1Q and 802.1P protocol

  DHCP server

  NAPT
  Static route
  Firmware upgrading through Web, TFTP, or FTP
  Resetting to the factory defaults through Reset button or Web
  DNS
  Virtual server
  DMZ
  Two-level passwords and usernames
  Web interface
  Telnet CLI
  System status display
  PPP session PAP/CHAP
  IP filter
  IP quality of service (QoS)
  Remote access control
  Line connection status test
  Remote managing through Telnet or HTTP
  Backup and restoration of configuration file
  Ethernet interface supporting crossover detection, auto-correction, and polarity correction
  Universal plug and play (UPnP)

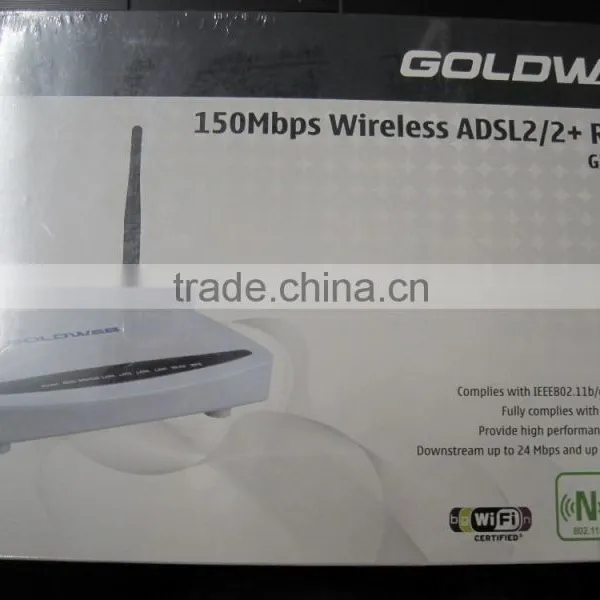

6 Picture
