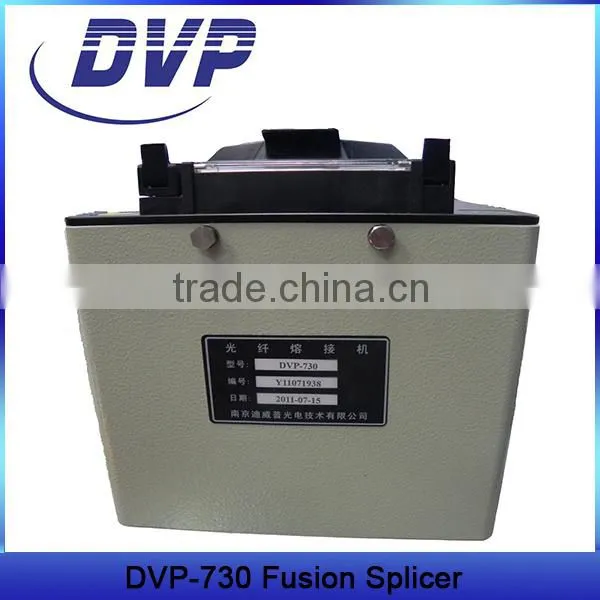

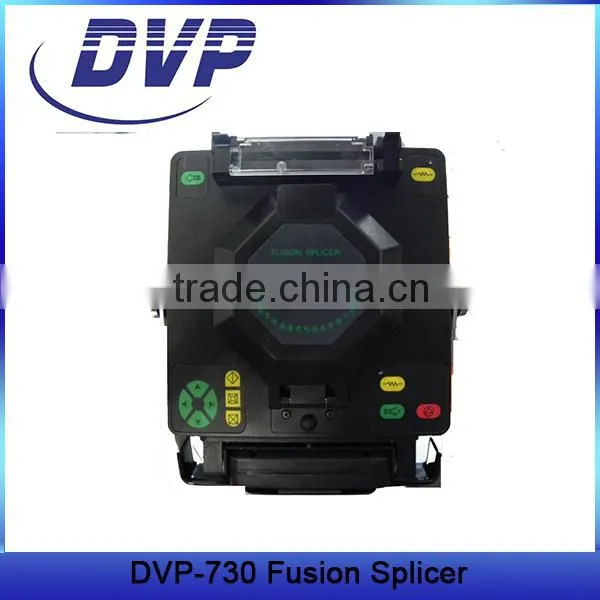

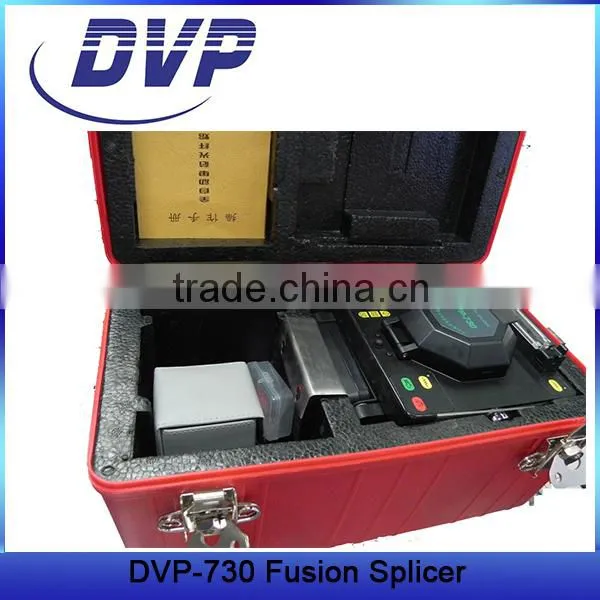

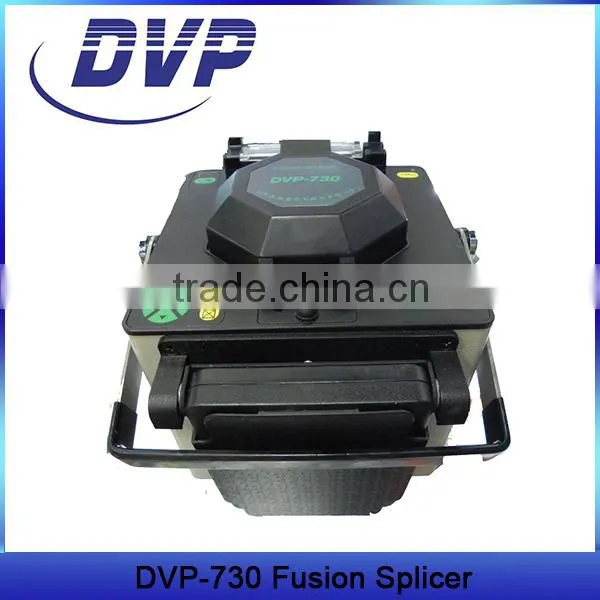

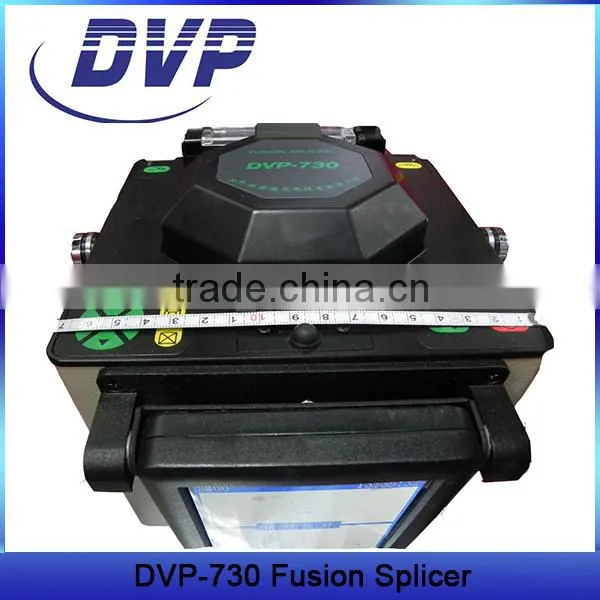

Original Large capacity optical fiber Fusion Splicer DVP-730
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
Cladding diameter |
100 to 150um |
Coating diameter |
100 to 1000um |
Fiber cleaved length |
8-22mm |
Splicing mode |
Auto & Manual |
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm |
Language |
English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
Interface |
RS232 interface & video output AC adaptor:85~260V input voltage |
Environment conditions: |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |
Internal battery: 12V voltage, 10Ah, than 200 times of continuous splices and heats DC adaptor:12V voltage,optional multipurpose external battery |
Dimensions/Weight |
170(D)×170(W)×140(H)mm/3.3KG |

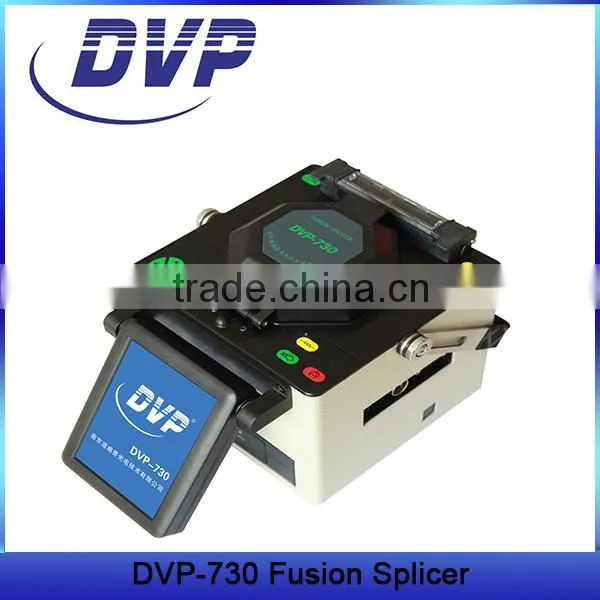

- Reversible monitor with control panel on each side
- Color LCD monitor & 256 magnification
- Large capacity internal battery
- Max. Wind velocity of 15m/s.
- 8 Sec. splice time, 40 Sec. tube-heat time
- Simultaneous X and Y views
- SYSTEM TEST ensures the best working condition
- User programmable
- Auto check fiber end face
- Auto calibrate parameters
- Store 8000 groups of splice results
- Multiple language options
