Specifications
Compact & Light weightFully Automatic Operation
5000m altitude ensures Splice Quality

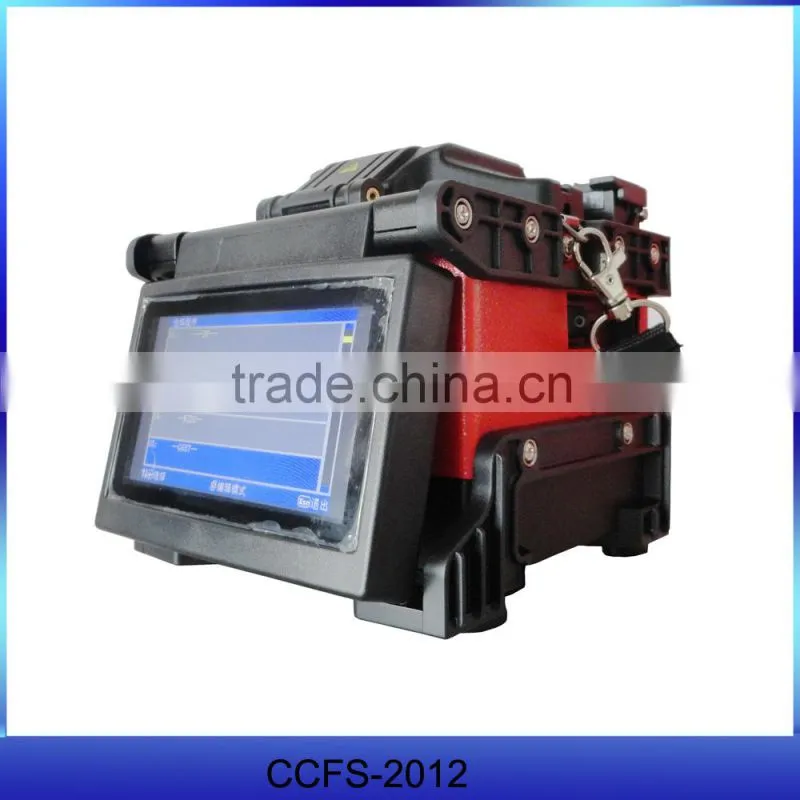

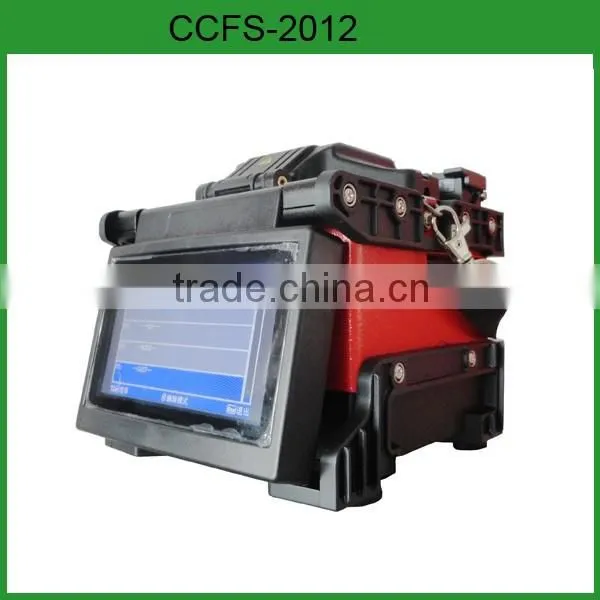

Fiber Splicing CCFS-2012 Cheap Supply
Features
l Compact & Light weight
l Fully Automatic Operation
l 5000m altitude ensures Splice Quality
l SYSTEM TEST ensures the best working condition
l Color LCD monitor
l Pause function, convenient for scientific research
l Store 8000 groups of splice results
l USB&DC interface
l High battery capacity, up to 120 times of continuous splice and heat
SPECIFICATIONS
Applicable fibers |
SM, MM, DS, NZ-DS(G655), EDF |
Fiber cleaved length |
8-22mm |
Average splice loss |
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm |
Splice Program |
15 groups of preset programs, 1 group of manual setting |
Language |
English, Chinese, Korean, Russian, Spanish, Portuguese, German, French |
Environment conditions |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |
AC adaptor: 85~260V input voltage Internal battery: 12V, 6Ah, up to 120 times of continuous splice and heat |
Dimensions/Weight |
142(D)×122(W)×138(H)mm/1.95kg |
STANDARD PACKAGE
Fusion Splicer, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Manual Instruction, Carry Case, Fiber Cleaver, Fiber Stripper, AC Adaptor, AC Power Cord
