Specifications
Compact & Light weightFully Automatic Operation
5000m altitude ensures Splice Quality

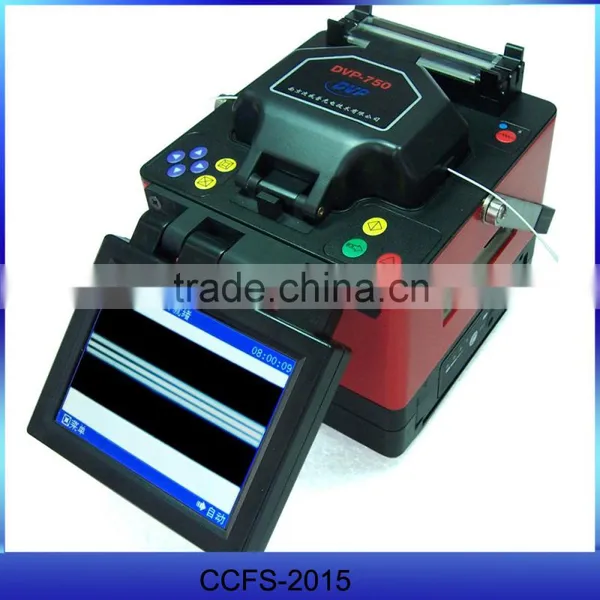

Fiber Fusion Equipment CCFS-2015 In stock
——Features——
l High definition LCD display
l PAS technology
l Core or cladding alignment
l Double heaters,30 Sec. tube-heat time
l 3 magnification modes, max. 360 magnification
l 4 display modes, fiber core visible
l 8 Sec. splice time
l Lithium battery
l Max. wind velocity of 15m/s
l Splicing method: auto, manual
l Store 8000 groups of splice results
l USB interface
——Specifications——
Applicable fibers |
SM, MM, NZ-DS(G655), EDF and others |
Average splice loss |
0.02dB(SM),0.01dB(MM). 0.04dB(NZDS) |
Return loss |
≥60dB |
Tension test |
2.0N(200gf)(Standard) |
Protection sleeve length |
20mm, 40mm, 60mm and other series micro protection sleeves |
Splicing program |
80 groups |
Language |
English, Chinese, Korean, Russian, Spanish , French, German, Portuguese and others |
Environment conditions: |
-25~+50℃ (operation temperature), 0~95%RH (humidity), 0~5000m (altitude) |
Storage environment |
-40~ +80℃ (temperature) , 0~95%RH (humidity) |
Power supply |
AC adaptor: 85~260V input voltage Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat |
Dimensions/Weight |
140(D)×150(W)×160(H)mm/2.8kg |
—— Standard package——
Main body, Internal Battery, Charger, Spare Electrodes, Cooling Tray, Manual Instruction, Carry Case, Fiber Cleaver, Fiber Stripper, AC Adaptor, AC Power Cord
