Specifications
CO/CPE 4 ports VDSL2 Modem 100/100Mpbs 17a/30a CCPAM1002+4*10/100Mbps
TU-T G.993.2 VDSL2 standard
VDSL2 Profiles:17a/30

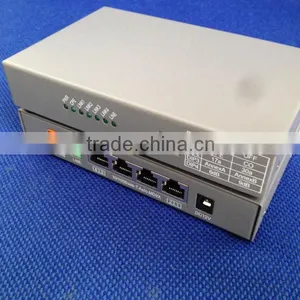

CO/CPE VDSL2 Modem 4*100/100Mpbs ports17a/30a CCPAM1002+
VDSL2 Modem
Very High-speed Connectivity for Internet Access and IPTV Service
The CCPAM1002 is a single VDSL2 port modem equipped with four Ethernet ports by embedded 10/100Mbps Ethernet Switch. Compliant with ITU-T G.993.2 VDSL2 standard, the CCPAM1002 interoperates with major chipsets, and supports Profile 30a with line rate up to 100Mbps/100Mbps for various bandwidth-consuming applications, like video streaming or Video on Demand. Besides forwarding Ethernet packets between VDSL2 port and Ethernet ports, CCPAM- 1000 also provides Hardware IGMP snooping for IGMP v1/v2 to facilitate IPTV services without interfering with other applications.
Standard-compliant to ITU-T G.993.2
The CCPAM1002 complies with the international standards and interoperates with other major/open chipsets. It supports different profiles (8a, 8b, 8c, 8d, 12a, 12b, 17a, and 30a); different band plans (997, 998, and proprietary) and different annex types (Annex A, Annex B), by factory settings to fit into different requirements. Benefit from the latest chip design technology, CCPAM1002 consumes less power (less than 2 watt per VDSL2 port) and has shorter training time to make device up and running.
Long Reach Ethernet (LRE): Back-to-back Applications
In addition to using one CCPAM1002 to connect to ISP/Telco’s DSLAM for accessing Internet or video services, users can utilize a pair of CCPAM1002 for back-to-back applications. Theoretically the maximum length for Ethernet cable is within 100 meters. With two CCPAM1002 modems, users can have 100/100Mbps connectivity over a twisted-pair phone line up to 200 meters or longer. This capability can help users to bridge two distinct LAN segments in longer distance or to have surveillance service a little farther over existing twisted-pair phone cables.
Easy Installation
The CCPAM1002 is easy to use. Simply connect the hardware interfaces without the need for complicated configuration efforts, the device will synchronizes with VDSL2 DSLAM (VTU-O) in auto-negotiated mode and allow users to access the Internet or watch IPTV instantly.

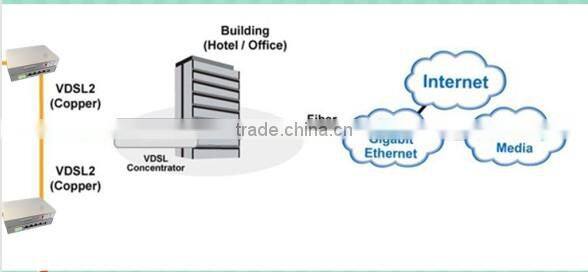

Deployment scenario for VDSL using FTTx:

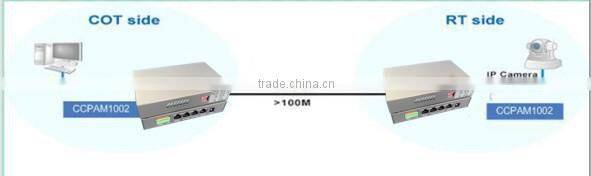

Back-to-back connectivity:
Features & Specifications:
VDSL2 Compliance
• Compliant with VDSL2 Standard, ITU-T G.993.2
• VDSL2 Profiles: 8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a
• Supports 997 and 998 Band Plans
• Supports Annex A, Annex B
• Upstream/Downstream connection rates greater than 100/100Mbps
• OLR (On Line Reconfiguration), UB0 Supported
• Supports Ethernet 802.3ah
Network Protocols and Features
• Transparent bridging
• Ethernet over VDSL (EoVDSL) Bridging
• IEEE 802.3/3u compliant
• Hardware IGMP Snooping for IGMP v1/v2
Management
• Simple management function via DIP Switch

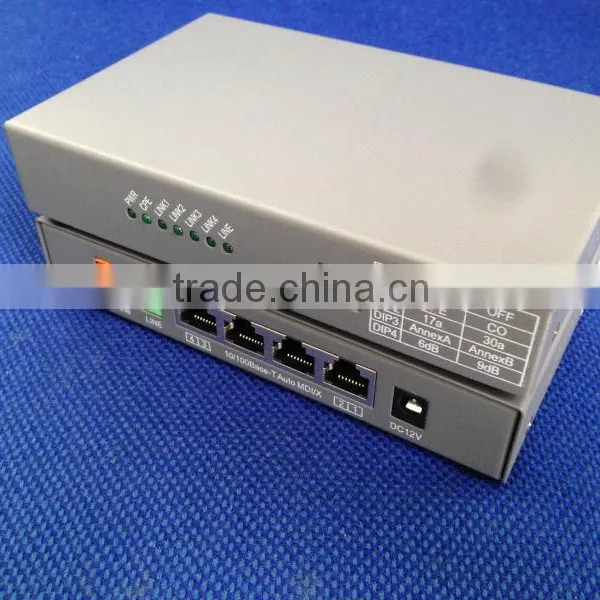

Hardware Specifications
Physical Interface
• VDSL: one DIP2 connector
• PHONE:one DIP2 connector

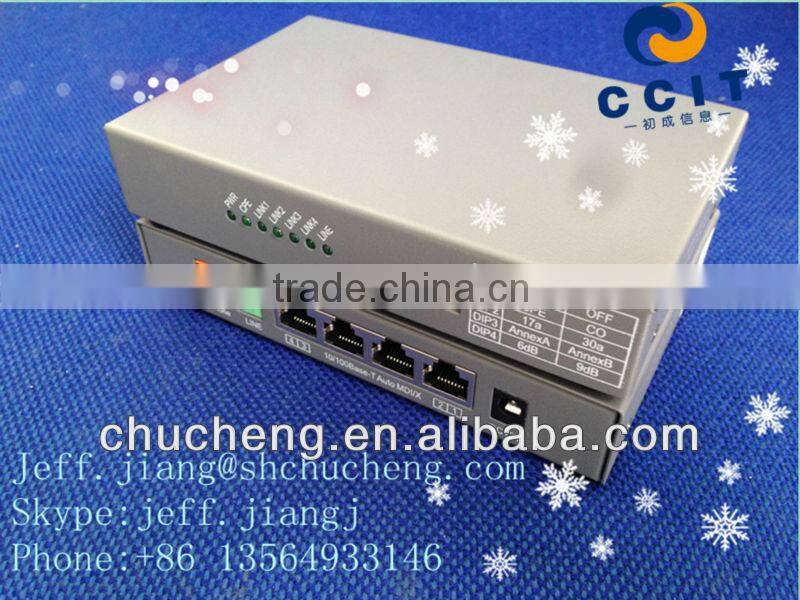

• DIP Switch: DIP4 for Setting RT/COT mode and Protocol
• Ethernet: 4-port 10/100Mbps auto-crossover (MDI / MDI-X) Switch
• Power jack
Physical Specifications
• Dimensions: 204mm x 127mm x 50mm
Power Requirements
• Input: 9~12VDC, 1A
Operating Environment
• Operating temperature: -40 - 85 °C
• Storage temperature: -40 - 100 °C
• Humidity:10 - 95% non-condensing

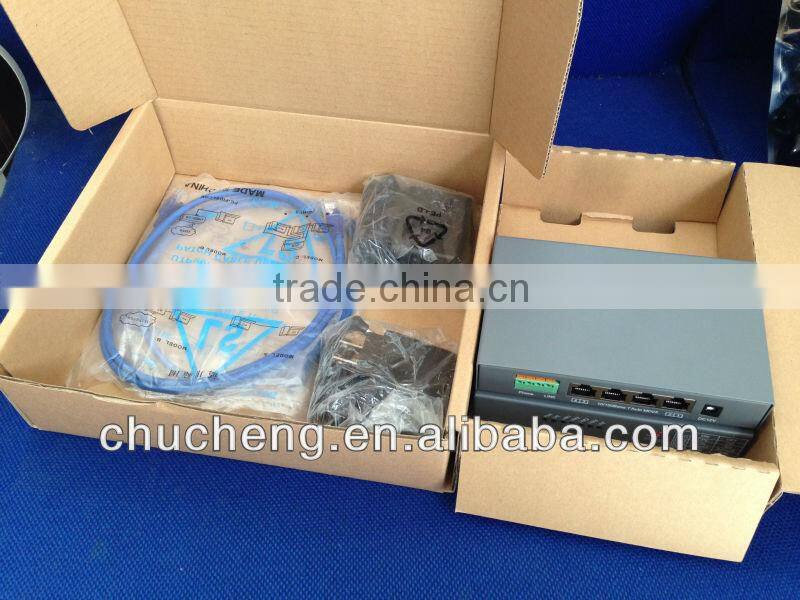

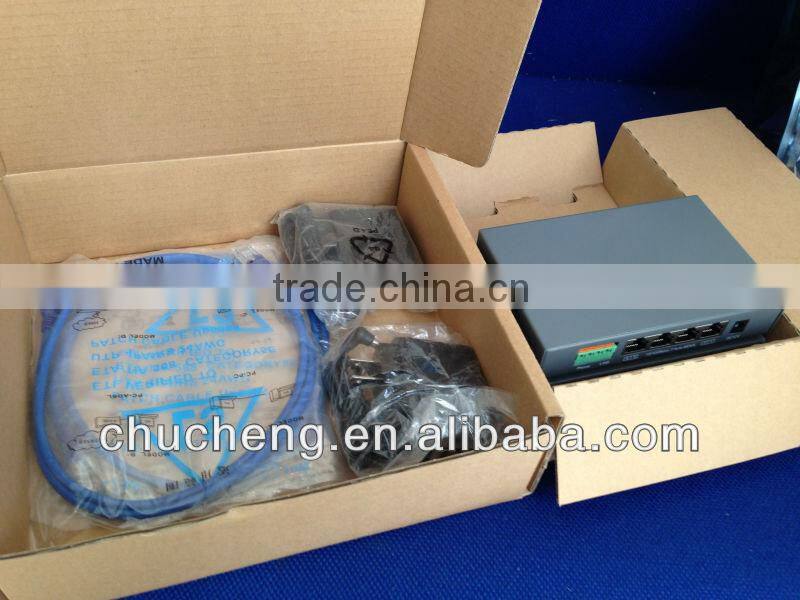

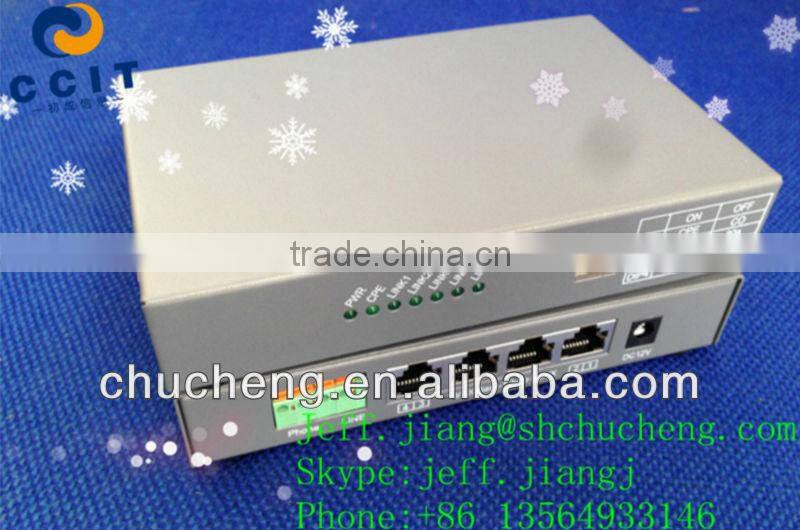

Pictures:
