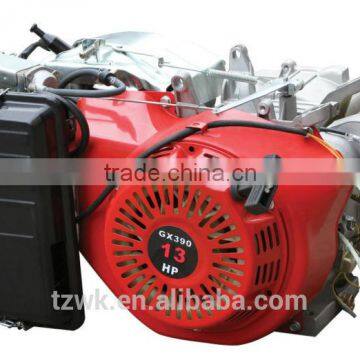

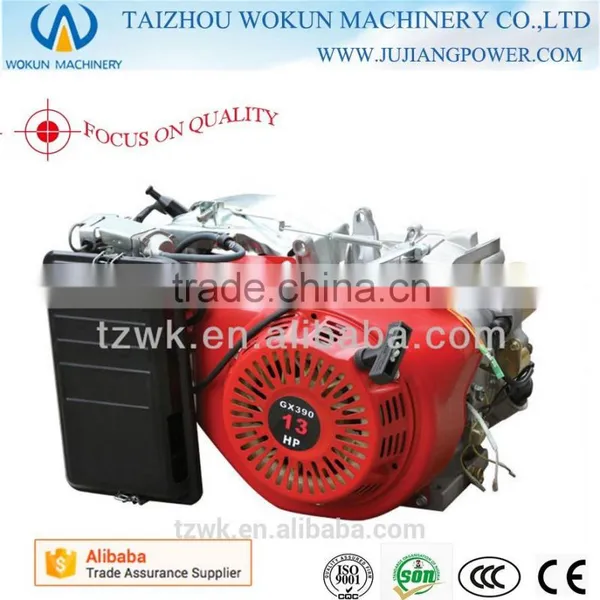

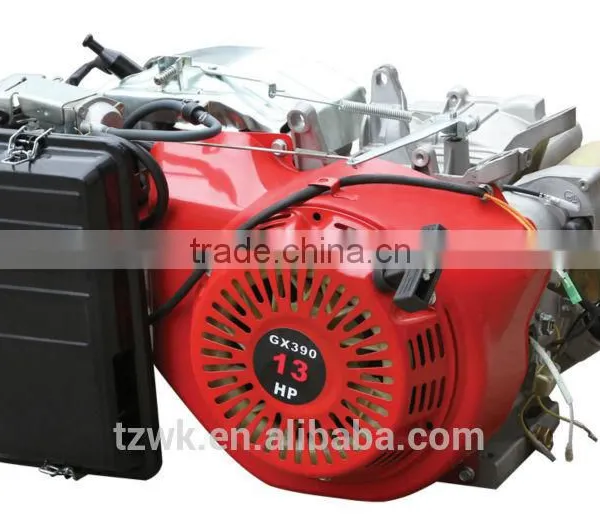

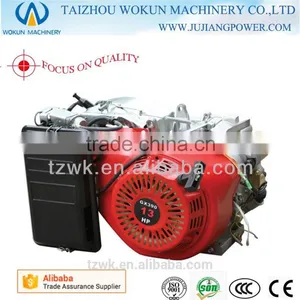

OEM CE Approved GX390 13hp 389cc Dicplacement Electric Start, Small Gasoline Engine

OEM CE Approved GX390 13hp 389cc Dicplacement Electric Start, Small Gasoline Engine thumbnail-1
OEM CE Approved GX390 13hp 389cc Dicplacement Electric Start, Small Gasoline Engine thumbnail-2
OEM CE Approved GX390 13hp 389cc Dicplacement Electric Start, Small Gasoline Engine photo-1
OEM CE Approved GX390 13hp 389cc Dicplacement Electric Start, Small Gasoline Engine photo-2
US$ 110.5 - 110.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WK
Model Number:
GX390
Contact Supplier Request Quote Chat Now
Taizhou Wokun Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WK
Model Number GX390
Output Type AC Single Phase
Speed 3600rpm
Frequency 50/60 Hz
Rated Power 6.0/ 5.0/ 4.0/ 3.0/ 2.8/ 2.5/ 2.0/ 1.8/ 1.5 kw
Rated Voltage 240/ 220/ 120/ 110V
Rated Current 12V 8.3A

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine







- Technical Data:

Power: from 5.5hp to 13hp



Engine Model GX160 GX200 GX270 GX340 GX390
Type OHV, Tilt, Single cylinder, 4-stroke, Forced air-cooled, gasoline engine
Max. Power(HP) 5.5HP/3600rpm 6.5HP/3600rpm 9HP/3600RPM 11HP/3600rpm 13HP/3600rpm
Displacement(cc) 163CC 196CC 270CC 338CC 389CC
Ignition Model Non-contact transistorized ignition (TCI)
Starting System Recoil start Recoil start Recoil start Recoil start Recoil start / Electric start
Fuel tank capacity 3.6L 3.6L 6L 6.5L 6.5L
Bore*Stroke(mm) 68*45mm 68*54mm 77*58mm 82*64mm 88*64mm
Net Weight(kg) 16 16.5 25 31 35
Dimension(mm)(L*W*H) 375x335x265mm 375x340x265mm 450x390x315mm 465x410x325mm 465x410x325mm
20GP' container 918PCS 918PCS 864PCS 490PCS 490PCS
40HQ' container 2100PCS 2100PCS 1920PCS 1920PCS 1120PCS

Starting: recoil start, with electric start optional

Optional 1: short shaft or long shaft

Optional 2: brown or color carton

Tell us your detail requirement, to recommend you the right one





 - Features
1. Economical, reliable and durable
2. Oil alert to shut down engine automatically when low oil is detected

3. Easy to strt, durable OHV, high quality

4. CE, SONCAP, ISO certification approved
5. One year or 500 hours warranty

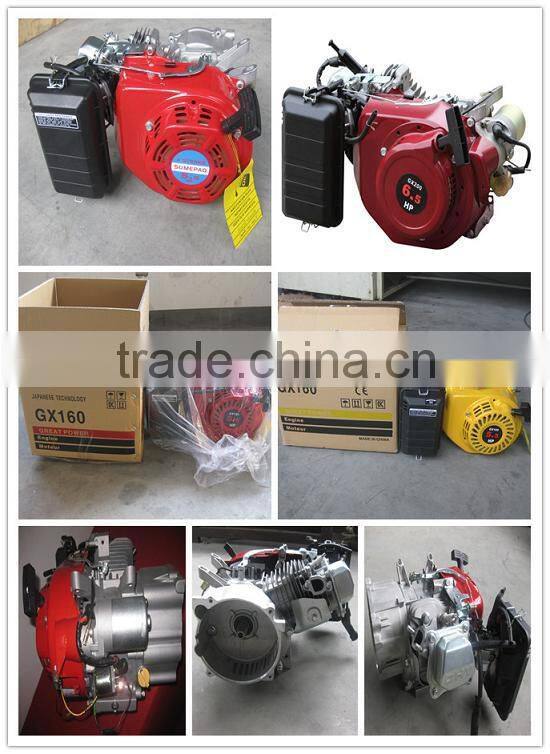

- Factory Show

     - Raw Material

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine







- Assembly

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engineOEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine





- Test

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine







- Packing

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine

- Loading:
OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine


- Certificate:

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engineOEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engineOEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine







- Sample Room

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine





- Customers

OEM CE approved GX390 13hp 389cc dicplacement electric start, small gasoline engine





5.5hp to 16hp gasoline half engine

Professional generator manufactrurer with R&D capacity

Reliable quality, reasonable price, desirable service

Tell us your demand, provide what you want

Contact us now, let's make a deal.........
