Product Details
| Place of Origin | Beijing, China |
Product Description

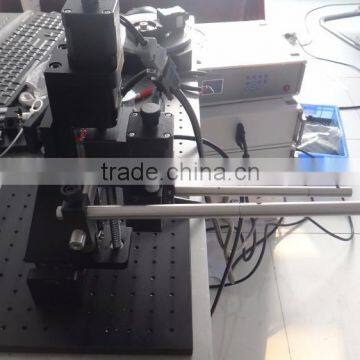

NEW xyz stage
xyz stage, motorized linear translation stages, linear translation stages, linear working table
Features
*High precise ball screw provides high-performance and high-accuracy
*Regular type set with small 1.8°2-phase stepper motor
*Square rail and sliding block supply high-loading, special in horizontal use
*Special design for couple with other stage easily
*The basic type can set with grating scales, servo motor
*RS232 interface for connecting motion controller easily
Model Number | J80DP50 | J80DP100 | J80DP150 | J80DP200 | J80DP300 | J80DP400 | J80DP500 | ||||||
Travel Range | 50mm | 100mm | 150mm | 200mm | 300mm | 400mm | 500mm | ||||||
Bearing | High Precise Ball Screw with 4mm leading | High Precise Ball Screw with 5mm leading | |||||||||||
Travel Guide | Square rail and sliding blocks | ||||||||||||
Stepper Motor | 1.8° 2-phase STP-57D3016 stepper motor (servo optional) | ||||||||||||
Material- Finish | Aluminum Alloy Black-Anodized | ||||||||||||
Max Load Capacity | 20kg horizontal/ 10kg vertical | 30kg horizontal/ 10kg vertical | 50kg horizontal/ 15kg vertical | ||||||||||
Weight | 1.5kg | 3kg | 4kg | 5kg | 6kg | 12.0kg | 15.0kg | ||||||
Resolution | 20μm/pulse, non-ms driver 1.25μm /pulse, 16ms driver | 20μm /pulse, non-ms driver 1.56μm /pulse, 16ms driver | |||||||||||
Max Speed | 30mm/sec | 40mm/sec | |||||||||||
Repeatability | 5μm | ||||||||||||
Absolute Accuracy | 8μm | ||||||||||||
Straightness | 5μm | 6μm | 8μm | ||||||||||
Degree of Parallelization | 10μm | 15μm | 20μm | ||||||||||
Pitching | 25” | 50” | 60” | ||||||||||
Yawing | 20” | 25” | 30” | ||||||||||
Backlash | 5μm | ||||||||||||
Optional Accessories | Brake Function, Grating Scales, Servo Motor | ||||||||||||
