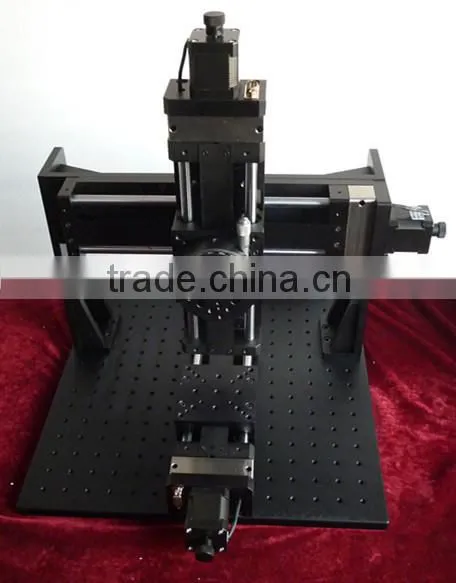

Xyz Linear Stage, XYZ Stage, Xyz Translate Stage

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Beijing JY Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Low Loading Motorized Linear Moving Stages (Round Guide Type)

xyz linear stage, XYZ stage, xyz translate stage

Features

*High precise ball screw provides high-performance and high-accuracy

*RS232 interface for connecting motion controller easily

*Round guide for long travel but low-loading use

*Special design for couple with other stage easily

*The basic type can set with grating scales, servo motor

*RS232 interface for connecting motion controller easily

Model Number	J05DP50	J05DP100	J05DP150	J05DP200		J05DP300
Travel Range	50mm	100mm	150mm	200mm		300mm
Oversize	90X90mm	90X90mm	90X90mm	100X120mm		100X120mm
Bearing	High Precise Ball Screw with 4mm leading
Travel Guide	Round rail
Stepper Motor	1.8° 2-phase STP-57D3016 stepper motor (servo optional)
Material	Aluminum Alloy
Surface Treatment	Black-Anodized
Loading	15kg		10kg	7kg		5kg
Weight	2.8kg	3.4kg	4.5kg	4.8kg		6.3kg
Resolution	20μm /pulse, non-ms driver 1μm /pulse, 20ms driver
Max Speed	40mm/sec
Repeatability	3μm
Accuracy	5μm
Straightness	5μm		6μm		8μm
Degree of Parallelization	10μm		15μm		20μm
Pitching	25”		50”		60”
Yawing	20”		25”		30”
Backlash	5μm
Optional Accessories	Brake Function, Grating Scales, Servo Motor and Dust Cover
