3 Axes motorized xyz positioning stage, xyz table, xyz translation table

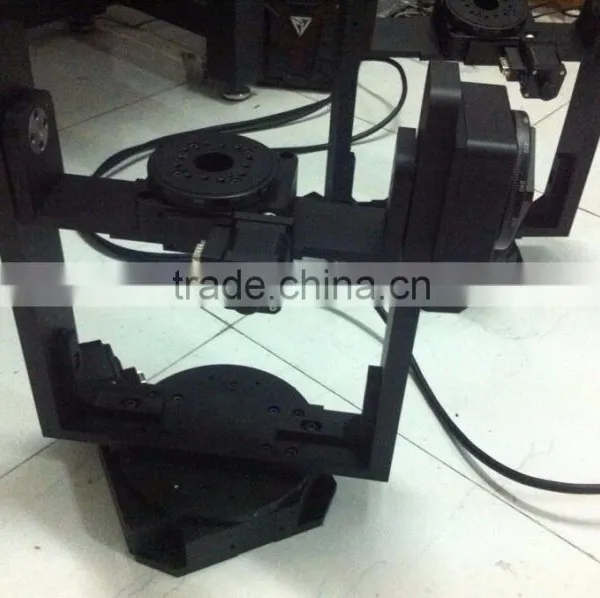

This three axis rotation system is used to position specimens and sensors in 3D space for simulation and calibration. This custom motion system is built with standard rotation stages, 2*02DX100 and 1*03DX200 and provides a high-performance and high-accuracy positioning by the motors. If you require the 360°of continuous rotation, the motion system must be designed by slip ring, like the picture showed below. It will achieve the 360°continuous rotation for all three axes.
Model Number |
J3WDX200 |
Angle Range |
360°for X, Y, Z axis |
Dimension |
150x150mm |
Worm Gear Ratio |
180:1 |
Driver |
Worm Gear |
Guide |
Bearing |
Stepper Motor(1.8°) |
SST57D3301 |
Material |
Aluminum |
Surface Treatment |
Black-anodized |
Loading |
10kg |
Weight |
10kg |
Resolution |
0.01°, non-ms driver 0.0005°, 20MS driver |
Speed |
10°/sec |
Repeatability |
0.005° |
Run-out of top plate |
15μm |
Backlash |
0.005° |
