Help CenterPanel Meter With CE
Related Products
Specifications

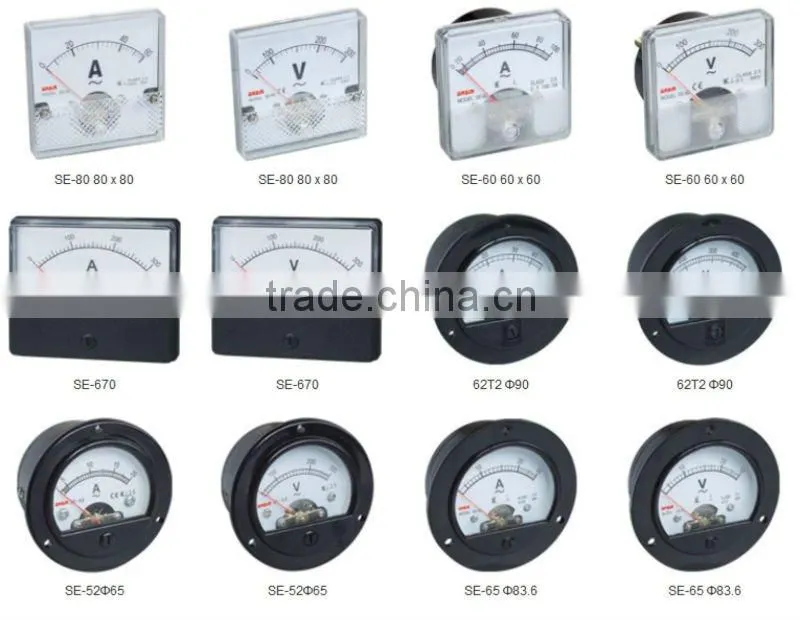

1.IEC605212. Panel Meter SE-80 SE-860 SE-670 62T2 SE-52 SE-65
3. Accuracy 2.0
4. Two years guarantee
Panel meter is one kind of electric measure indicator with the direct effection of imitate display. It is suitable for AC & DC output and input distribution circuit, power plant console cabinet, power operating board and different apparatus. It is used to measure to measure DC current, voltage & AC current, voltage, frequency and phase power.
Accuracy: class 1.0, 1.5, 2.5 Ambient Temperature: 23°C±10°C
Relative Humidity: 25% and 80% External Magnetic Field: 0.4KA/m
Endurance: AC 45-65Hz 2KV 1min Installation Position: Vertical±10°C
Transport Temperature: -30°C~55°C The Standard Accords to IEC60051-2
Composition: PC Front and Bakelite case, Four stud mounting,
Color: Black case, white scale plate.
Scale Plate: The normal scale plate is made of alloy-aluminium material white printed with black scales,Values, units, technique symbols, etc.Scale plate with special requirements are available upon request.Such as color, scale with lighting functions and PVC noctilucence are available upon request.
Pointer: Normaly, the pointer is made of alloy-aluminium, it is black, and red, white are
available Upon request.
Anti-static: All meters are subject to anti-static treatment to minimize the static-effect to the
accuracy of the meters.
Damping and Overshoot: The overshoot is less than 15% when the pointer is at the 2/3 of the
scale. Damping and overshoot can be customized according to user’s
requirements.
Accuracy: Class1.5, 2.5;
Service condition: -20~+50 degree;
Operating position: Generally, meter is installed in vertical position. Other installation position can
be custom customized (please specify the desired angle). The accuracy class
is just valid for the orresponding installation mode.
Insulation Test: The test Voltage for BE&BP series is 2KV RMS for 1 minute with the frequency
50Hz.
Safety Precautions: Meters with damaged bezels or glass faceplates must be disconnected from the mains. Scale plate, front frames and windows may only be replaced under voltage-free conditions.
The meter should be kept clean, if the meter is used in a manner not specified
by the manufacturer, the protective function may be impaired.
The advantages of Our products: Interchangeable Dial Changing the scale plate without opening
the meter. Under the same secondary current, the scale plate
of AC ammeter can be Changed, no loss of accuracy.
