Home > Electrical & Electronics > Power Supply & Distribution > Power Distribution Cabinet & Box > LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker

LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker

LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker photo-1
LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker photo-2

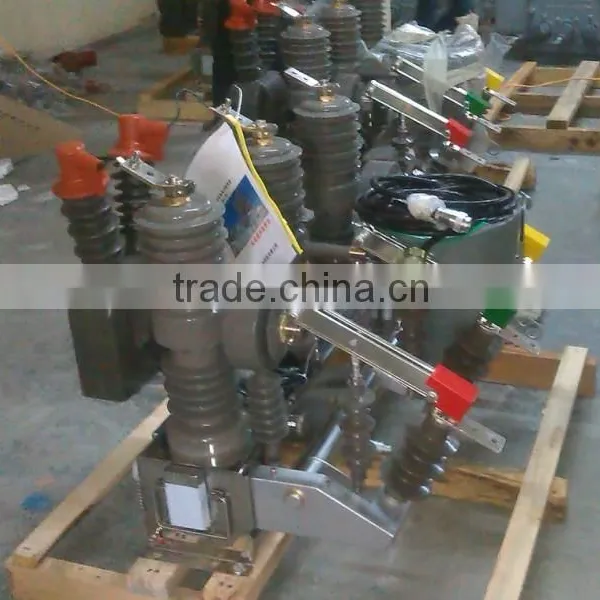

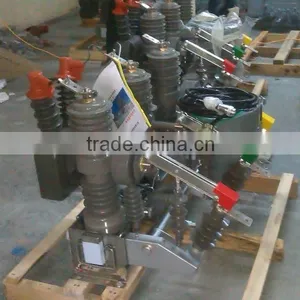

LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker photo-3

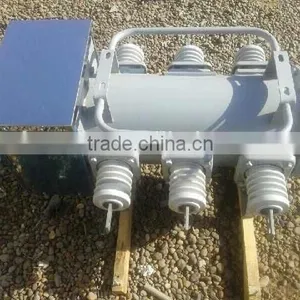

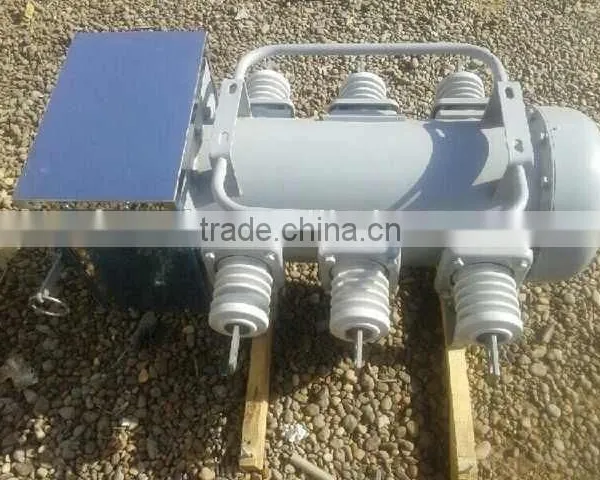

LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker photo-4
US$ 630 - 1,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
LW8-36 LW8-35 LW8-40.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name hossin
Model Number LW8-36 LW8-35 LW8-40.5

LW8-36 LW8-35 LW8-40.5 LW8-33  Outdoor High Voltage SF6 Circuit Breaker





Product Overviews



The LW8A-40.5(W)T2000-31.5 outdoor type SF6 breaker finds its universal range of applications for the three-phases electrical system with alternating current 50HZ and rated voltage 40.5kv.It is used for controlling and protecting the electrical system and measuring the current transformers.







Specification



 LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker

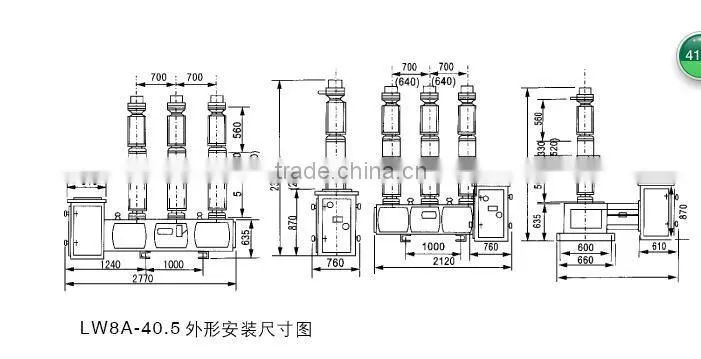

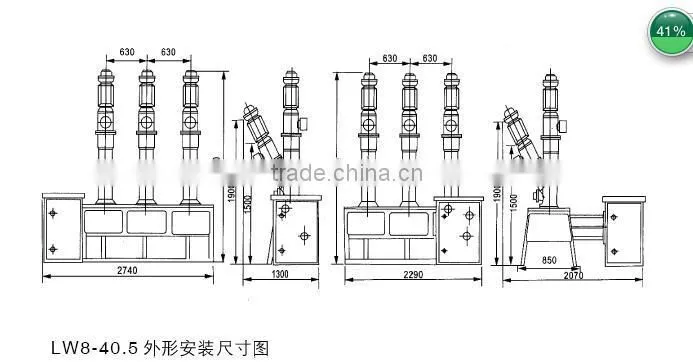

Outline Drawing

 LW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit BreakerLW8-36 LW8-35 LW8-40.5 LW8-33 Outdoor High Voltage SF6 Circuit Breaker







Advantages

1.Over 20 years of manufacturing experience with good quality & stable product performance.

2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.

3. Quick feedback, Timely quotation, Fast delivery

4. Complete set of testing machine to ensure product quality.

5. Hossin can customize non-standard product as per clients requirement.

6. Hossin sells pressing parts& pressing mould at low price.

7. Hossin offers electrical installation & commission service.
