LW3-10KV LW3-12KV LW3-10G High Voltage Outdoor SF6 Circuit Breaker

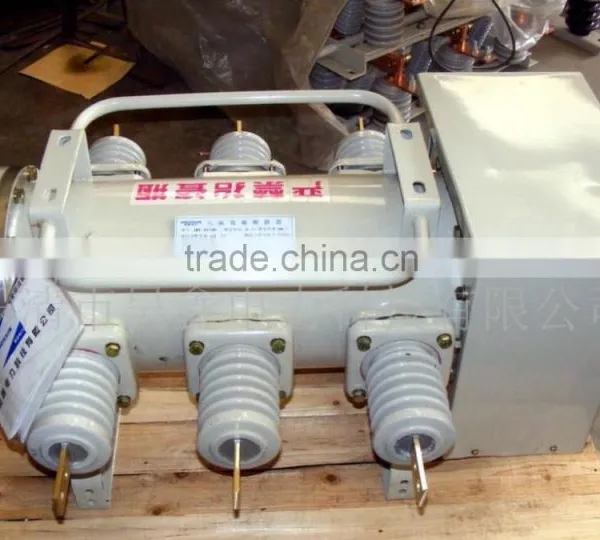

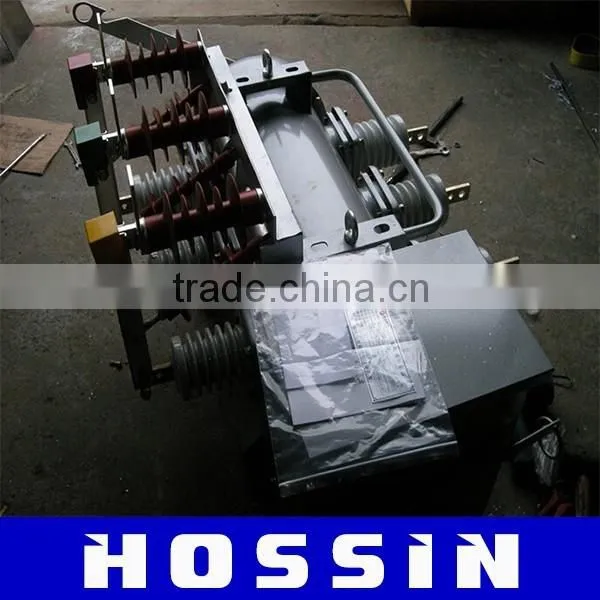

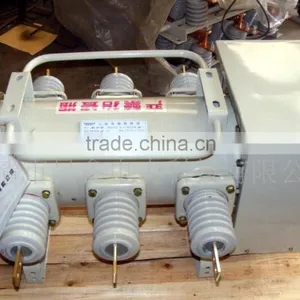

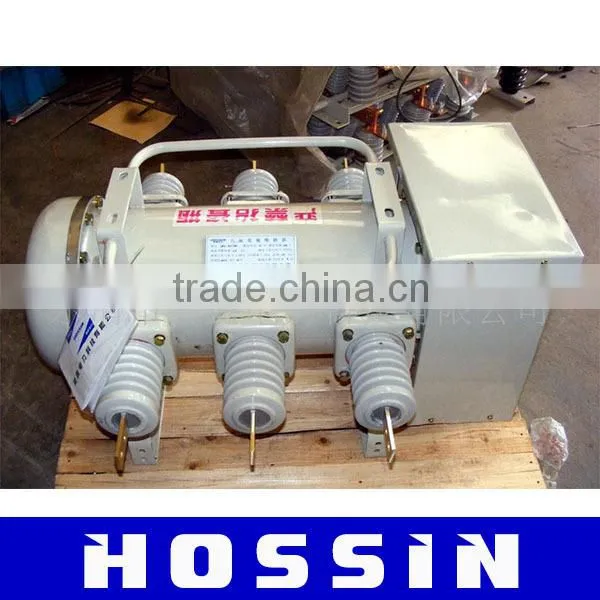

LW3-10 I II III type outdoor SF6 circuit breaker is a new type outdoor high voltage electrical equipment
which takes SF6 gas as its arc extinguishing and insulation medium. There are three types of operating mechanism-I type manual energy storage spring operating mechanism, II type motor energy storage spring
operating mechanism and III type DC electromagnetic operating mechanism.
Compared with other 10kV outdoor circuit breaker, LW3-10 outdoor SF6 circuit breaker is simple in
structure with good arc extinguishing and insulation performance.
With LW3-10 SF6 circuit breaker, users can reduce cost, eliminate
danger of fire and improve the reliability of electric system.
|
Rated Voltage(kV) |
Rated Current(A) |
Rated Short-circuit Breaking Current(kA) |
Rated Short-circuit Closing Current(kA) |
Rated Peak Withstand Current(kA) |
Rated Short-circuit Withstand Current(kA) |
Rated Short-circuit Duration Time(S) |
Rated Short-circuit Current Breaking Times(times) |
Weight(kg) |
10 |
400 630 1250 |
6.3 8 12.5 16 |
16 20 31.5 |
16 20 31.5 |
6.3 8 12.5 16 |
4 |
30 |
I type 122 II type 130 III type 132 |
1.Over 20 years of manufacturing experience with good quality & stable product performance.
2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.
3. Quick feedback, Timely quotation, Fast delivery
4. Complete set of testing machine to ensure product quality.
5. Hossin can customize non-standard product as per client’s requirement.
6. Hossin sells pressing parts& pressing mould at low price.
7. Hossin offers electrical installation & commission service.
