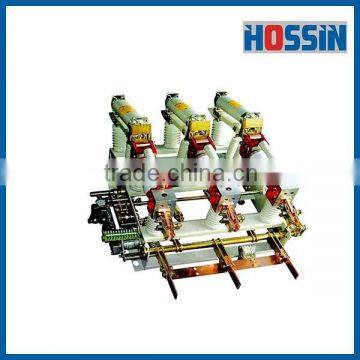

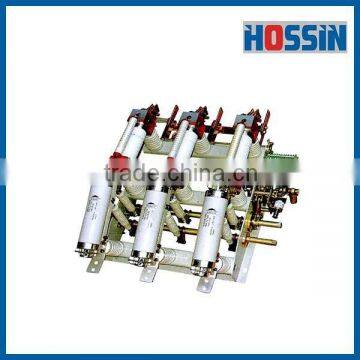

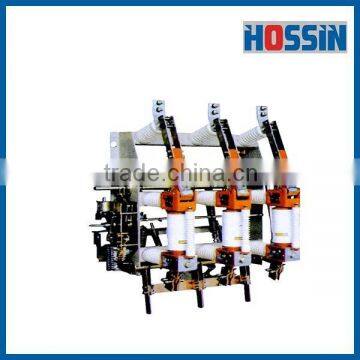

12kv FZN21 indoor AC hv vacuum load break switch with fuse combination
FZN21-12/T630-20 and FZN21-12(R)D/T125-31.5 series Indoor AC high voltage load switch- fuse
combination units appliances for three phase AC 12kV, 50Hz power system,
or with the complete power distribution equipment and loop-network switch cabinet ,
combined substation and other ancillary uses, is widely used in urban network construction and transformation
engineering, industrial and mining enterprises, high-rise buildings and public facilities ,
can be used as ring power supply unit or terminal equipment, play power distribution, control and protection.
No |
Item |
Unit |
Value |
||
1 |
Rated voltage |
kV |
12 |
||
2 |
Rated frequency |
Hz |
50 |
||
3 |
Rated current |
A |
630 |
125 |
|
4 |
Rated insulation level |
1min power frequency withstand voltage |
kV |
Arc-quenching chamber fracture 48 |
|
(effective value) |
Earth , phase 42, insulating fracture 48 |
||||
Lightning impulse withstand voltage (peak) |
Earth , phase 75, insulating fracture 85 |
||||
5 |
Rated dynamic current (peak) |
kA |
50 |
|
|
6 |
4S thermal current |
kA |
20 |
|
|
7 |
Rated power load breaking current |
A |
630 |
|
|
8 |
Rated closed-loop breaking current |
A |
630 |
|
|
9 |
Rated cable charge breaking current |
A |
10 |
|
|
10 |
Rated breaking no-load transformer capacity |
KVA |
1250 |
||
11 |
Rated breaking AC current |
A |
3150 |
||
12 |
Rated short-circuit closed current |
kA |
50 |
||
13 |
Rated current breaking times |
times |
2000 |
||
14 |
Mechanical life |
times |
10000 |
||
15 |
Permitted wear-thickness of vacuum arc-quenching chamber contact |
mm |
2 |
||
16 |
Manual operating torque |
Nm |
>200 |
||
1.Over 20 years of manufacturing experience with good quality & stable product performance.
2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.
3. Quick feedback, Timely quotation, Fast delivery
4. Complete set of testing machine to ensure product quality.
5. Hossin can customize non-standard product as per client’s requirement.
6. Hossin sells pressing parts& pressing mould at low price.
7. Hossin offers electrical installation & commission service.
