Home > Electrical & Electronics > Switch > Other Switches > FZRN58-12 Miniature Vacuum Load Switch With Fuse

FZRN58-12 Miniature Vacuum Load Switch With Fuse

Name: FZRN58-12 Miniature Vacuum Load Switch With Fuse
Brand: HOSSIN
SKU: 101630855
Availability: InStock

FZRN58-12 Miniature Vacuum Load Switch With Fuse thumbnail-1

FZRN58-12 Miniature Vacuum Load Switch With Fuse thumbnail-2

FZRN58-12 Miniature Vacuum Load Switch With Fuse photo-1

FZRN58-12 Miniature Vacuum Load Switch With Fuse photo-2

US$ 500 - 10,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

HOSSIN

Model Number:

FZRN58-12

Contact Supplier Request Quote Chat Now

Yueqing Hossin Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name HOSSIN

Model Number FZRN58-12

Max. Current 630A

Max. Voltage 11KV 12KV

FZRN58-12 Miniature Vacuum Load Switch With Fuse

Product Overviews

Vacuum arc-extinguishing type with high performance;

Miniature product, feature in small volume, compact structure, long electric life;

The operating mechanism is in parallel arrangement with three phase incoming and outgoing line which makes it easy for installation.

Can be equipped with earthing switch, isolating switch of same specification with obvious fracture;

The vacuum load switch with fuse is fuse draw-out type which is easy for fuse replacement;

Available for motor, manual operation.

Model&Meaning

FZRN58-12/125-31.5

F: load switch

Z: vacuum

R: fuse

N: indoor

58:design number

12:rated voltage

125:max.rated current of fuse

31.5: rated short-circuit breaking current

Specification

No.	Item	Unit	FZN58-12/630-21	FZRN58-12/125-31.5
1	Rated voltage	kV	12	12
2	Rated frequency	Hz	50
3	Rated current	A	630
4	Rated lighting impulse withstand voltage(peak)	kV	Against ground, between phases 75; isolating fracture 85
5	Rated power frequency withstand voltage	kV	Against ground, between phases 42; isolating fracture 48
6	Fuse model			S LAJ-12
7	Impactor output power			Middle(2-5joule)
8	Mechanical life	times	10000	10000
9	Rated operating power voltage	V	DC220, 110, AC220, 110

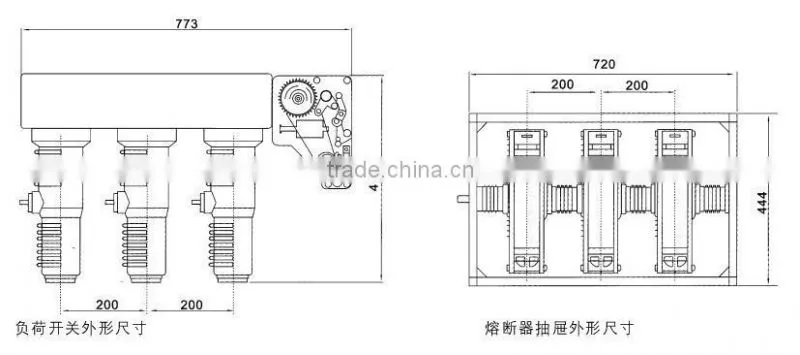

Outline Drawing

Advantages

1.Over 20 years of manufacturing experience with good quality & stable product performance.

2. Hossin provides full line of MV-HV electrical products, including drop-out fuse, disconnector, surge arrester, vacuum circuit breaker, fuse, load switch, insulator etc.

3. Quick feedback, Timely quotation, Fast delivery

4. Complete set of testing machine to ensure product quality.

5. Hossin can customize non-standard product as per client’s requirement.

6. Hossin sells pressing parts& pressing mould at low price.

7. Hossin offers electrical installation & commission service.
