NLL Series Aluminium Alloy Wedge Type Strain Clamp and Insulation Cover
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HOSSIN
Model Number:
NLL
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NXJ Series Aluminium Alloy Wedge Type Strain ClampNegotiableMOQ: 10 Pieces -
NXL Series Aluminium Alloy Wedge Type Strain Clamp and Insulation CoverNegotiableMOQ: 10 Pieces
-
NXJL Series Aluminium Alloy Wedge Type Strain ClampNegotiableMOQ: 10 Pieces
-
NXJ Series Four-cores-centralized Strain ClampNegotiableMOQ: 10 Pieces
-
XJG Series Suspension ClampNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
HOSSIN
Model Number
NLL
Specifications
NLL series aluminium alloy wedge type strain clamp is used for 20kV and below overhead lines.

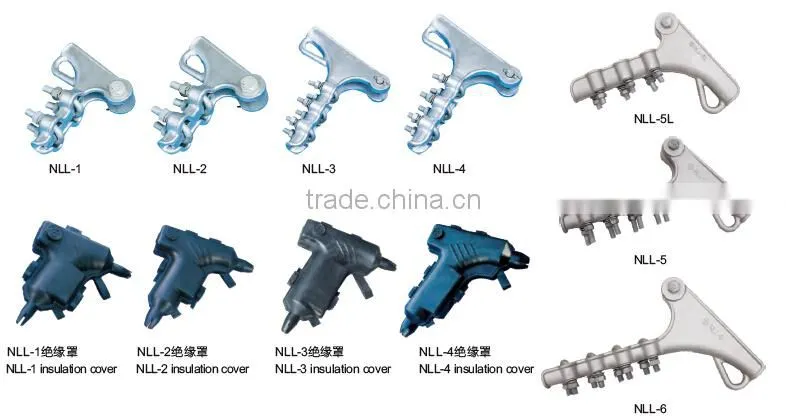

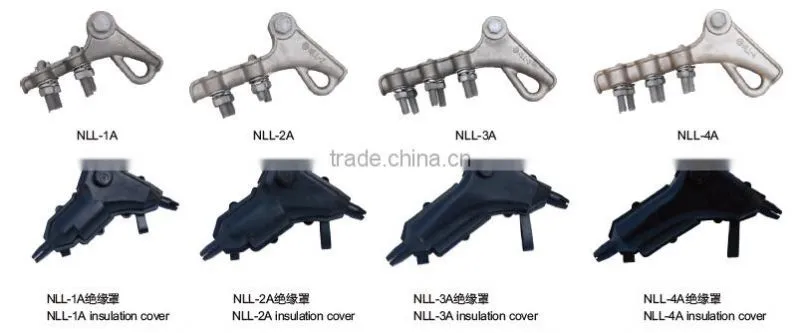

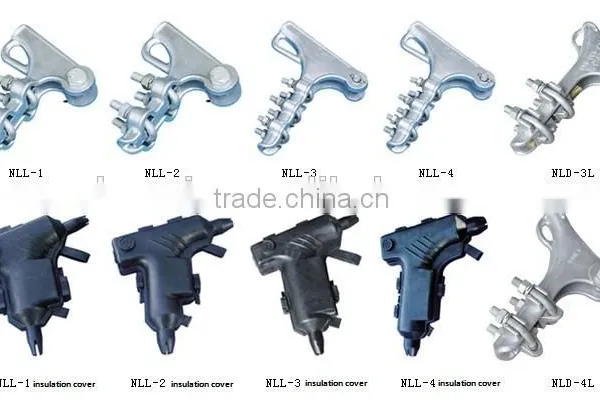

NLL series aluminium alloy wedge type strain clamp and insulation cover
Application
NLL series aluminium alloy wedge type insulation strain clamp(bolt type)is suitable for aerial line up to 20kv to fix aluminium wire or steel core aluminium wire on the strain pole . With insulation cover, the strain clamp can offer insulation protection.
Features
- The body is made of high-strength aluminium alloy.
- Smooth surface with long life.
- Easy installation
- No electric energy waste.
Insulation cover performance feature
- 1-10kV withstand voltage:≥18kV one minute no breakdown
- 20kV withstand voltage : ≥30kV one minute no breakdown
- Environment temperature : -30℃-90℃
- Weather proof performance: have good performance after 1008 hours artifical climate aging test
Specification
NXG insulation strain clamp(wedge type)
NXG insulallonation strain clamp(wedge type)
