Specifications
NXJ series four-cores-centralized strain clamp is suitable for the end of aerial wire terminal.

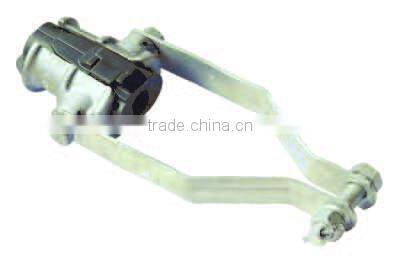

NXJ series four-cores-centralized strain clamp
Application
NXJ four-core centralized strain clamp is suitable for the end of aerial wire terminal,
it s action is fixing or tightening the insulation
Conductor. The clamp has been designed four core parallel groove, after clamping the four insulation conductor (not remove the insulation layer) tighten up the bolt to have large grip strength.
Specification
Catalog No. |
Suitable Conductor |
Explanation |
Reference Picture |
NXJ4-1A |
4X16~50 |
Pull rod type, Aluminum alloy body. |
|
|
NXJ4-2A |
4X70~120 |
||
NXJ4-1B |
4X25~50 |
Pull plate, The body is weather resistant engineering plastics |
|
|
NXJ4-2B |
4X70~120 |
||
|
NXJ4-1C |
4X10 4X16~25 |
Aluminum alloy body, Engineering plastics inner wedge. |
|
NXJ4-2C |
4X35~50 |
||
NXJ4-3C |
4X70 |
||
NXJ4-4C |
4X95 |
||
|
NXJ4-5C |
4X120 |
||
NXJ4-1D |
4X10 |
More suitable for the installation of parallel bundle conductor |
|
|
NXJ4-2D |
4X16 4X25 |
||
|
NXJ4-3D |
4X35 4X50 |
||
NXJ4-4D |
4X70 |
||
|
NXJ4-5D |
4X95 4X120 |
NXGinsulation strain clamp(wedge type)
NXG insulallonation strain clamp(wedge type)
