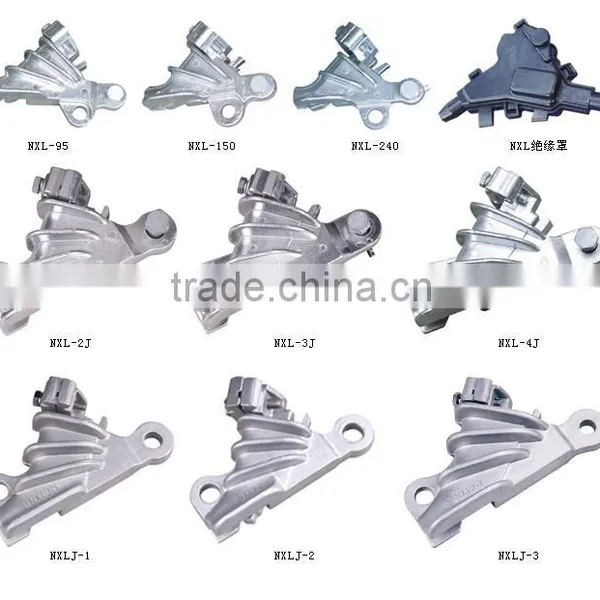

NXL series aluminium alloy wedge type strain clamp and insulation cover
Application
NXL series aluminium alloy wedge type insulation strain clamp is suitable for distribution wire up to 20kV to fix the aerial insulation aluminium conductor or naked aluminium conductor on the ratate angle or insulator of terminal strain pole, and then fix and tighten the aerial conductor.
Features
- The body is made of high-strength aluminium alloy.
- An arc embraces the most part; conductor won't change; large grip strength
- Wedge-locked structure, easy installation.
Insulation cover performance feature
- 1-10kV withstand voltage:≥18kV one minute no breakdown
- 20kV withstand voltage : ≥30kV one minute no breakdown
- Environment temperature : -30℃-90℃

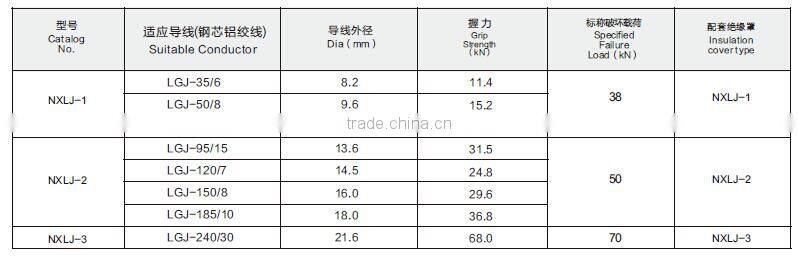

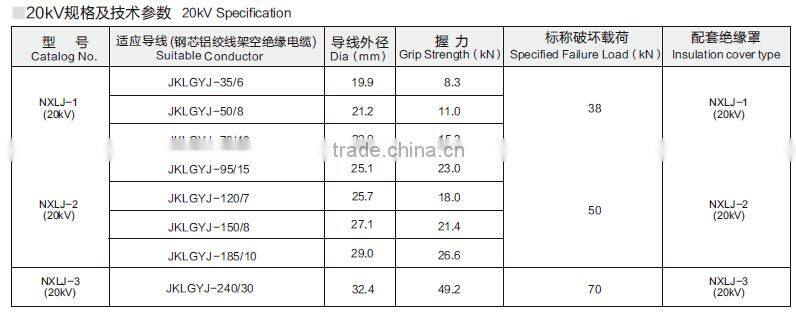

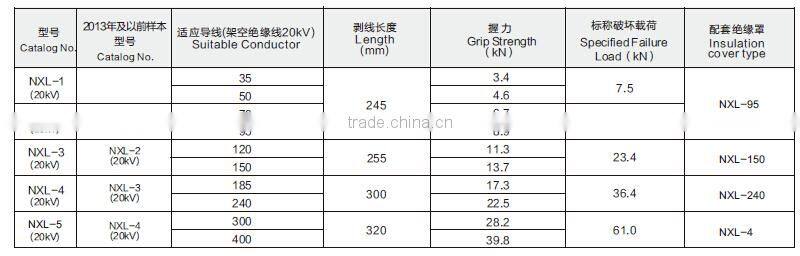

Specification
NXGinsulation strain clamp(wedge type)
NXG insulallonation strain clamp(wedge type)
