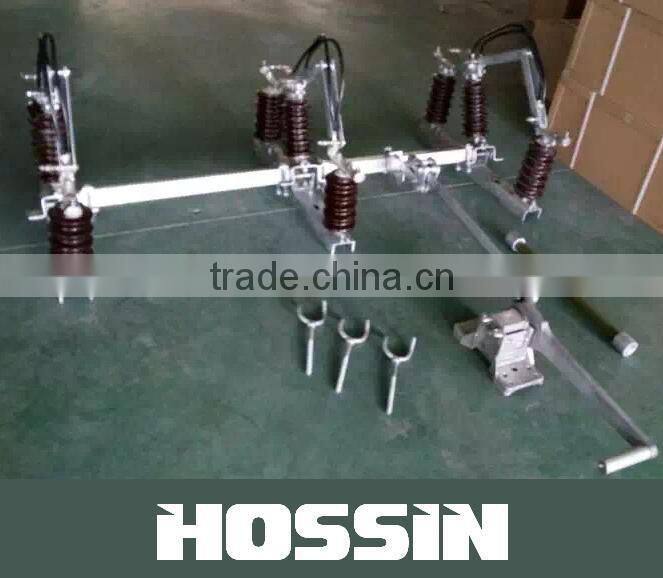

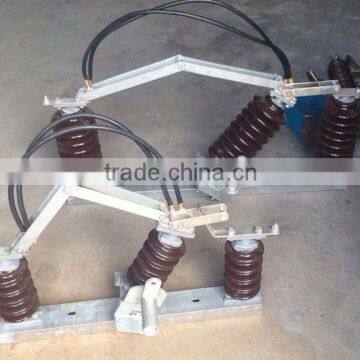

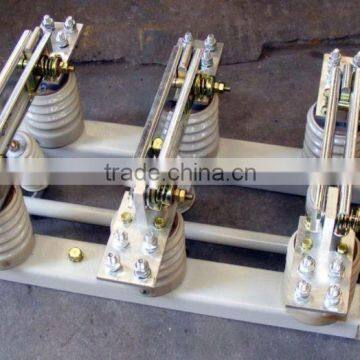

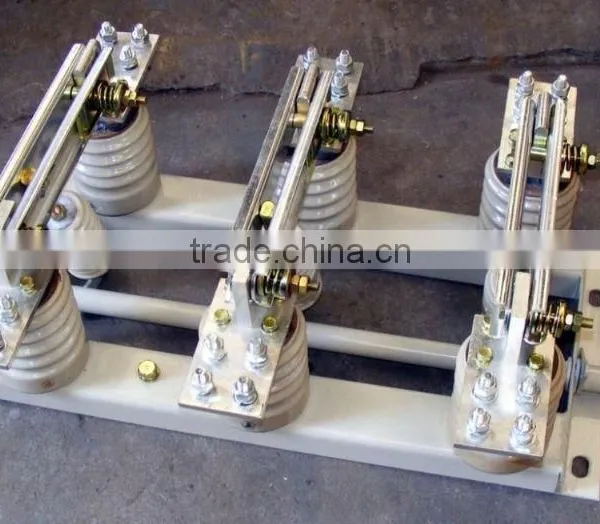

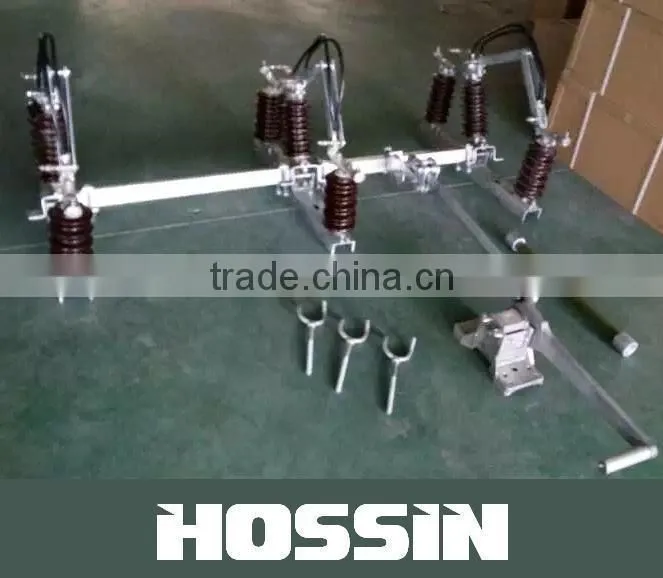

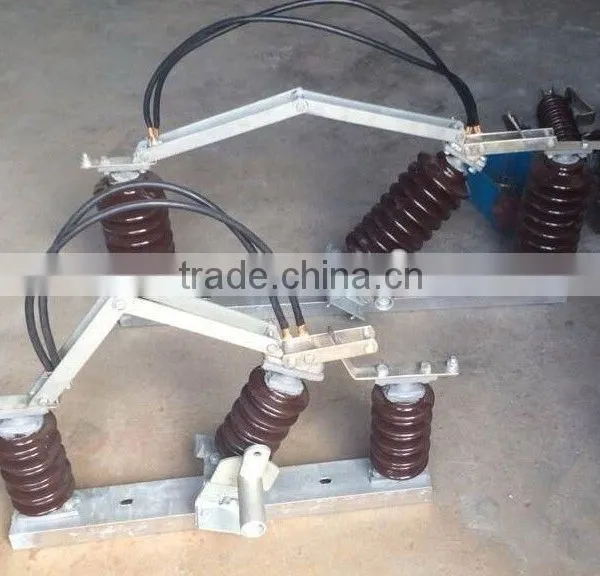

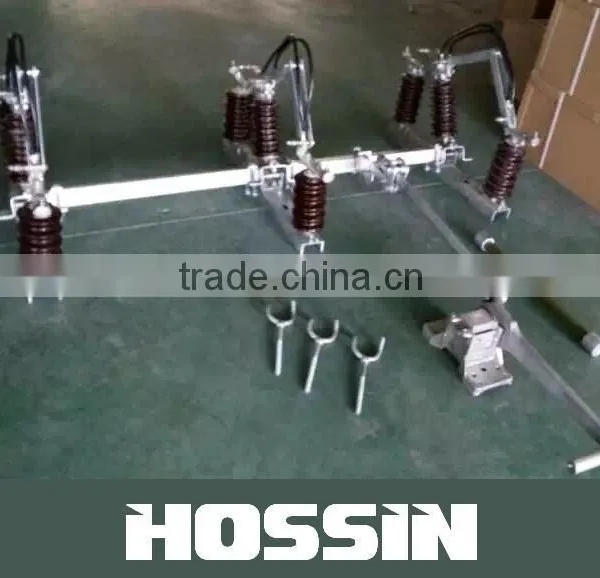

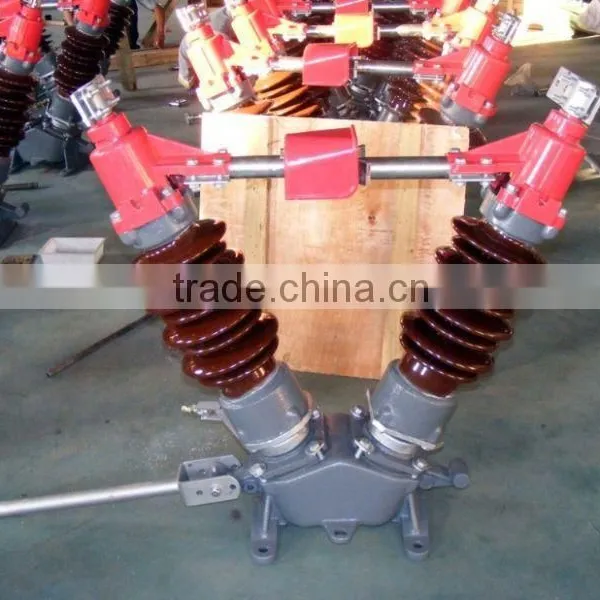

11KV-33KV High Voltage Disconnecting Switch RH-B
US$ 100 - 1,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
hossin
Model Number:
RH-B-11KV RH-B-33KV RH-B
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RH-B-33KV Isolators Disconnect SwitchUS$ 8 - 100MOQ: 1 Piece -
Outdoor DisconnectorUS$ 8 - 1,000MOQ: 1 Piece
-
GW5 High Tension Disconnect SwitchUS$ 8 - 1,000MOQ: 1 Piece
-
GN19 Dual Power Disconnect Switch 12kv Indoor Disconnect SwitchUS$ 8 - 1,000MOQ: 1 Piece
-
Outdoor ac High Voltage Disconnect SwitchUS$ 50 - 100MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
hossin
Model Number
RH-B-11KV RH-B-33KV RH-B
Max. Current
200A 400A 630A 1000A 1250A 1600A 2000A 3150A 4000A
Max. Voltage
11KV 33KV 36KV
11KV-33KV high voltage disconnecting switch RH-B
Product Overviews
Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3 phase AC
50/60Hz power circuit, it is used as switching on and switching off at the
voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102:
2002.
Working Conditions
Altitude:1000 to 3000m.
Ambient temperature:-30 celsius to +40celsius
The relative humidity of air:monthly humidity not more than 90%,daily humidity
not more than 95%.
Wind pressure:not more than 700Pa( wind speed is 34m/s).
Amplitude:earthquake degree 8
Environmental pollution degree:degree III
Specification
11KV-33KV high voltage disconnecting switch RH-B:
| Type | Rated voltage (KV) | Rated current (A) | 4s heat steady e.c.A | Shock voltage (A) |
Impulse withstand voltage (KV) |
Power-frequency withstand voltage(KV) |
| RH-B | 11 | 400 | 12500 | 31500 | 95 | 42 |
| RH-B | 33 | 600 | 12500 | 31500 | 195 | 80 |

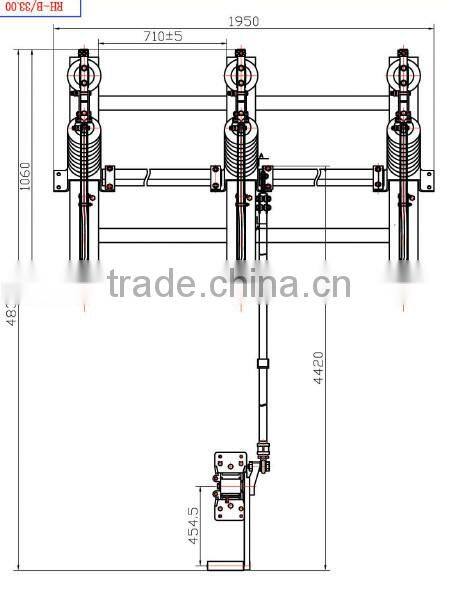

33KV

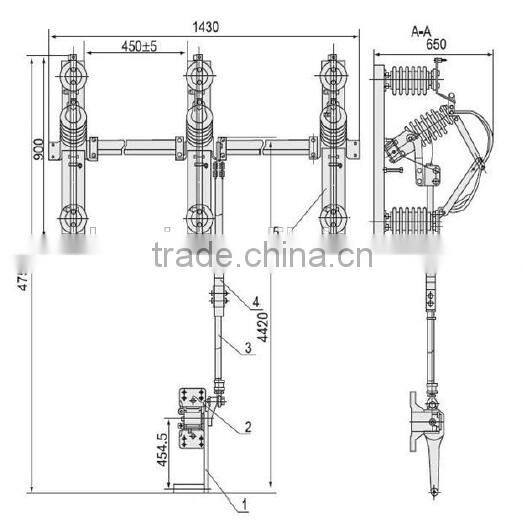

Outline Drawing
11KV
