Home > Electrical & Electronics > Switch > Other Switches > Outdoor ac High Voltage Disconnect Switch

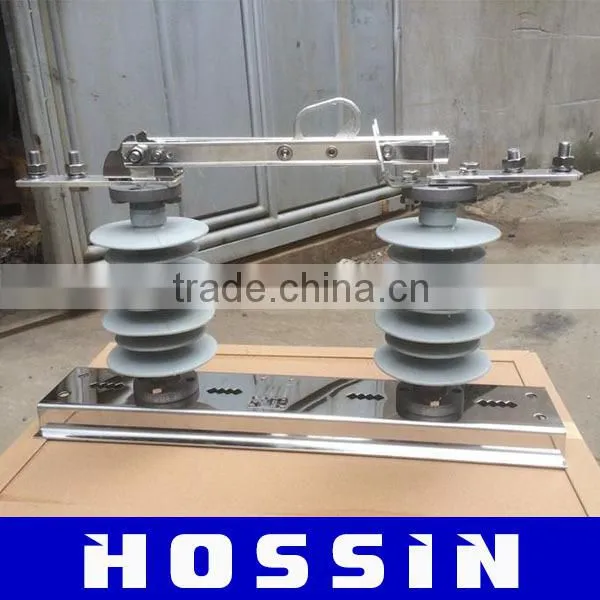

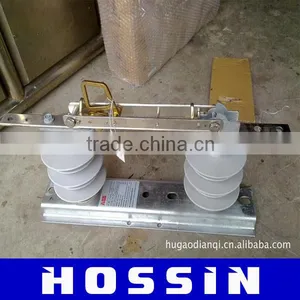

Outdoor ac High Voltage Disconnect Switch

Name: Outdoor ac High Voltage Disconnect Switch
Brand: hossin
SKU: 101624583
Availability: InStock

Outdoor ac High Voltage Disconnect Switch thumbnail-1

Outdoor ac High Voltage Disconnect Switch thumbnail-2

Outdoor ac High Voltage Disconnect Switch photo-1

Outdoor ac High Voltage Disconnect Switch photo-2

US$ 50 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

hossin

Model Number:

GW1 GW4 GW5 GW7 GW8 GW10 GW12 GW13 GW14 GN1 GN2 GN22 GN19 GN6 GN8 GN27

Contact Supplier Request Quote Chat Now

Yueqing Hossin Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name hossin

Model Number GW1 GW4 GW5 GW7 GW8 GW10 GW12 GW13 GW14 GN1 GN2 GN22 GN19 GN6 GN8 GN27

Max. Current 200A 400A 630A 1000A 1250A 1600A 2000A 3150A 4000A

Max. Voltage 9KV 11KV 12KV 15KV 20KV 21KV 24KV 33KV 36K 40.5KV 33KV

outdoor ac high voltage disconnect switch

Product Overviews

The"GW9-10G"type of outdoor high voltage isolator switch is the high voltage

switch equipment of single phase AC50Hz.The product is suitable ofr power system
with rated voltage 10KV to make or break power supply under circumstances of with
voltage and nomload.
The isolator is adopts isolated rod to operate.

Working Conditions

The altitude does not exceed 1000m.

The ambient air temperature: Maximum+40℃:Minimum: General Area-30℃,
Paramos-40℃.
The wind pressure does not exceed 700Pa.
The earthquake intensity does not exceed 8 degrees.
The working situation without frequent violent vibration.
The installation site of ordinary type isolator should be kept away from gas,
smoke chemical deposition, salt-spray-fog, dust and other and corrosive maters
that affect seriously insulation and conuction capability of the isolator.
Pollution-proof type isolator is applies to severe filthy conduction area, however,
It shouldn't be any explosive matters and matters causing fire.

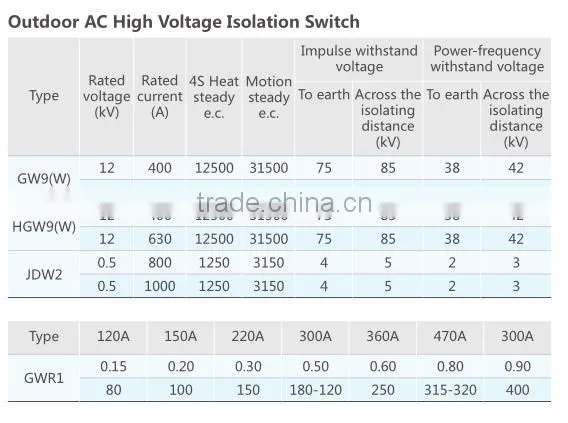

Specification

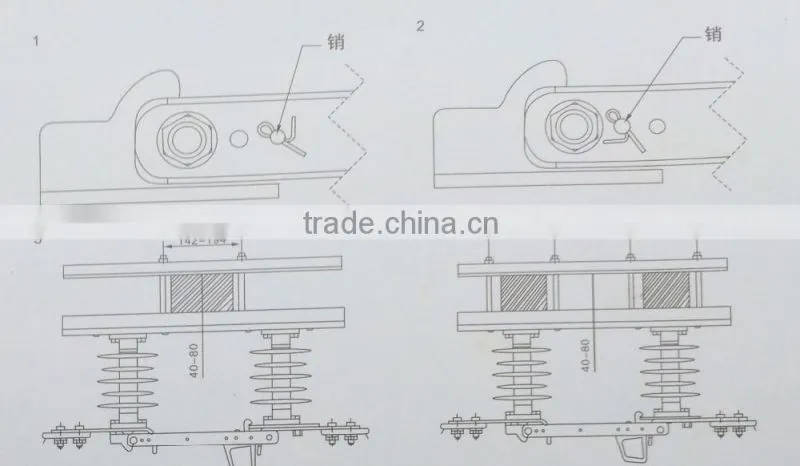

Outline Drawing
