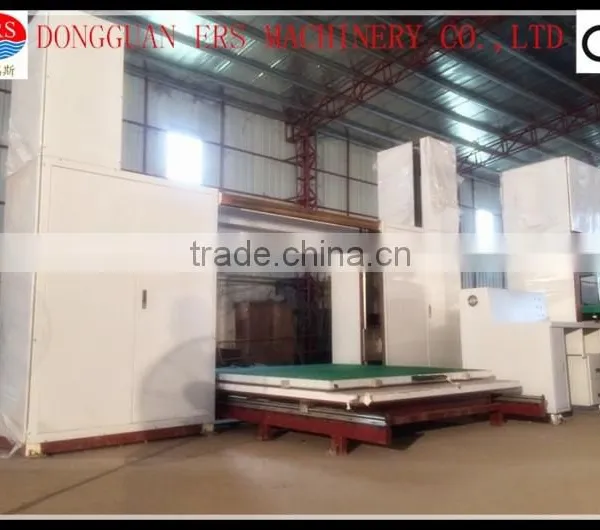

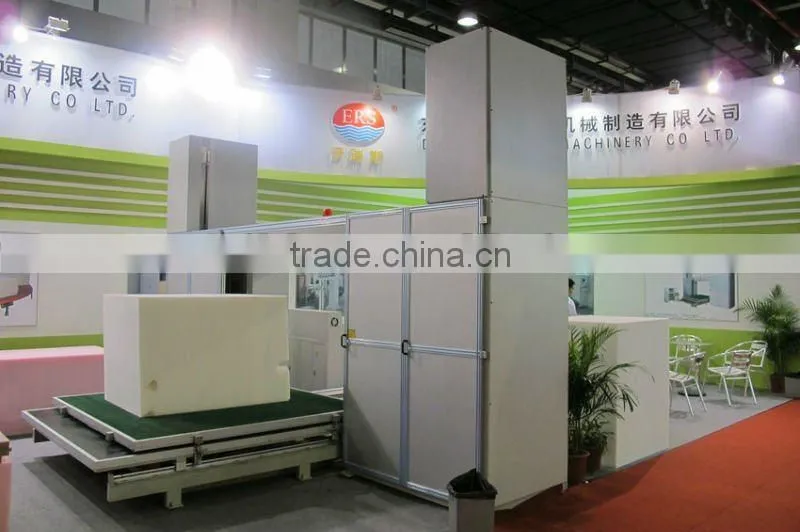

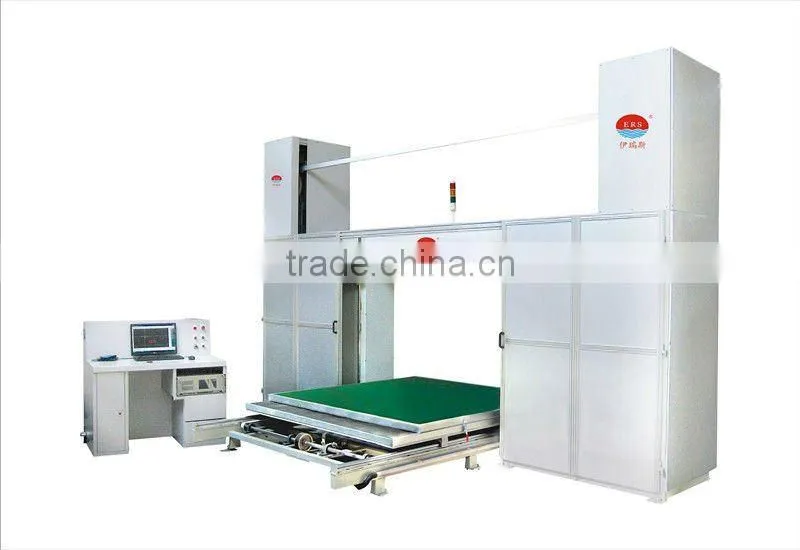

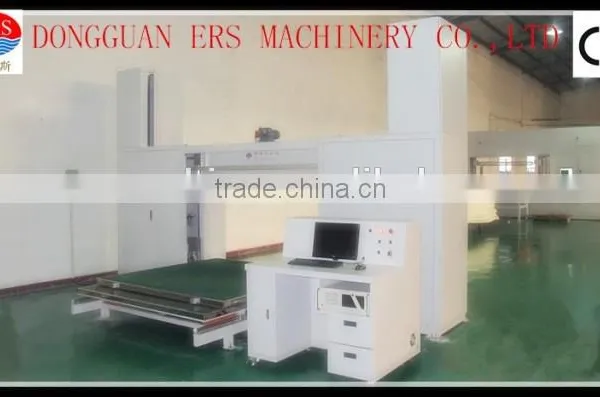

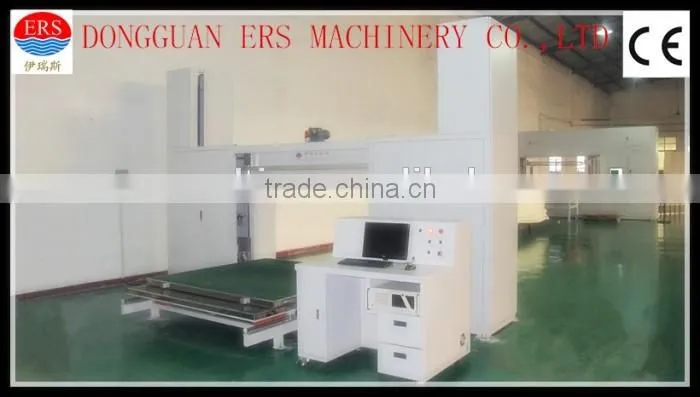

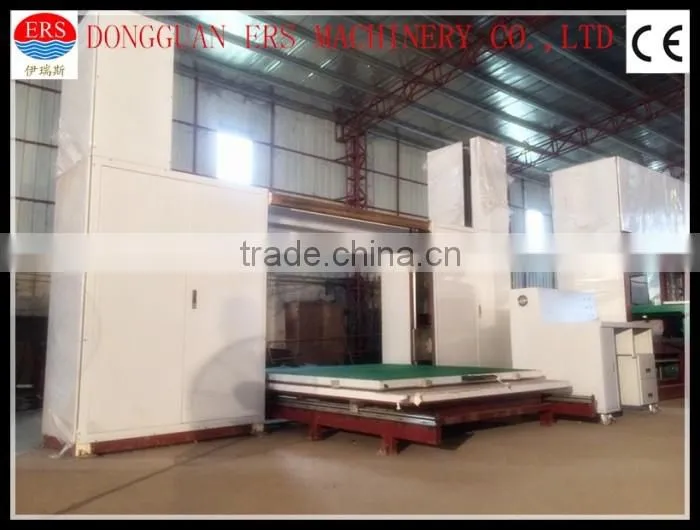

ERS-CNC03 polyurethane foam CNC contour knife cutting machine
The machine is our newest development of the CNC contour cutting machine, adopts PC computer + multi-axis motion control card system,and using the 3mm width serrated circular cutter two or three dimensional polyurethane foam or similar materials, Cutting precise, operate easily, so the product widely used for varies field, such as heat preservation materials, furniture, mattress, packing, Air conditioning and ventilation pipes ,other industrial usage.
Technical Specification:
1.Maximum cutting size:W2000*L2500*H1200MM Cutting precision:±1.00MM
2.Processing Speed: 0-10 m / min adjustable timely
3.Cutting method: circular blade cutting
4.blade t speed: stepless 0-1200 m / min adjustable
5.Blade speed: stepless 0-1200 m / min adjustable
6.Software: YCUT special foam cutting system
7. servo motor controlling
8. control systen: PC computer + multi-axis motion control card
9. blade specifications: L11900 * W3 * 0.6MM circular blade
10.Total power: 8KW
11.External dimensions: L5000 * W4000 *H3000MM
