Welding mould welding machine accessories for cold pressure welding machine

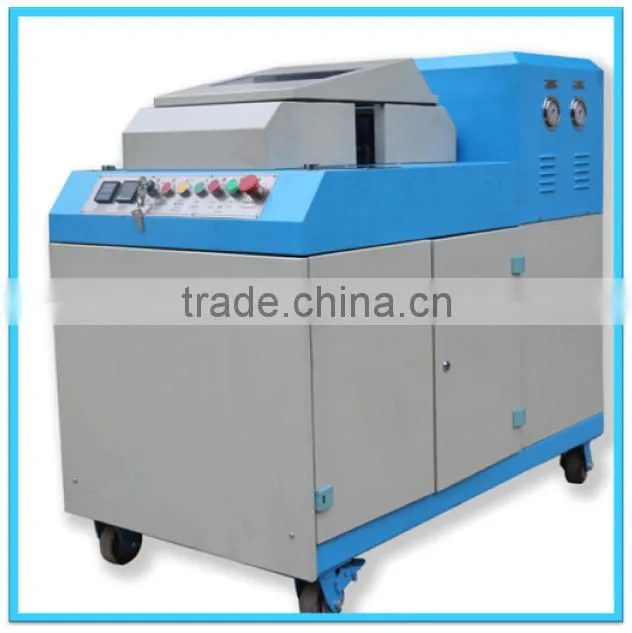

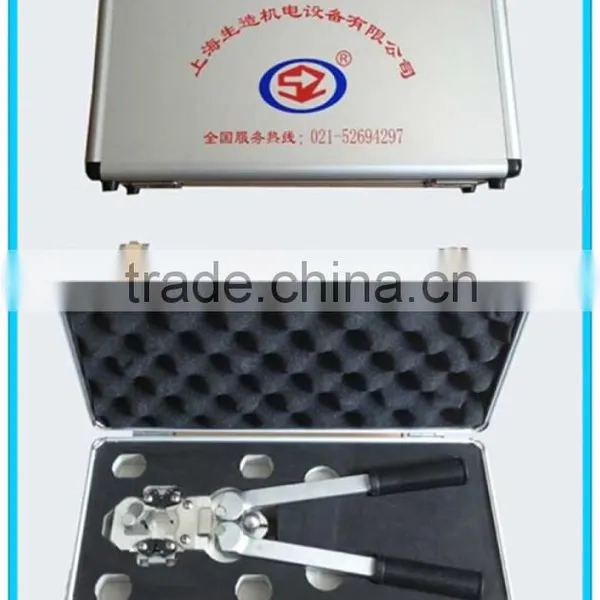

1. Cold welder Introduction:
1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire
2. No need any power, heat, only match corresponding dies.
3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.
4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.
5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. And also should match four single cavity dies or two double cavity dies.
6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.
7. The tolerance of dies to wire: -1%mm+ 3%mm wire to dies tolerance.
For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.
8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.
9. The wire can be welded:
Naked copper wire & aluminum wire, brass wire; enameled copper wire, copper clad aluminum conductor; or weld copper wire & brass wire together with aluminum wire. Plastic wires and other wires should remove surface insulation part, then welding.
Steel wire or stranded wires can’t be welded.

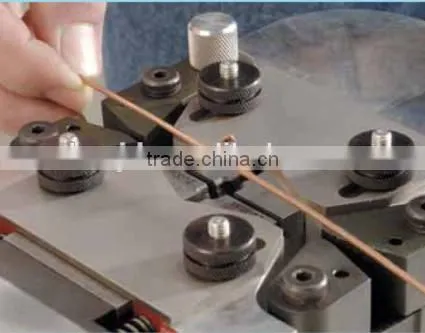

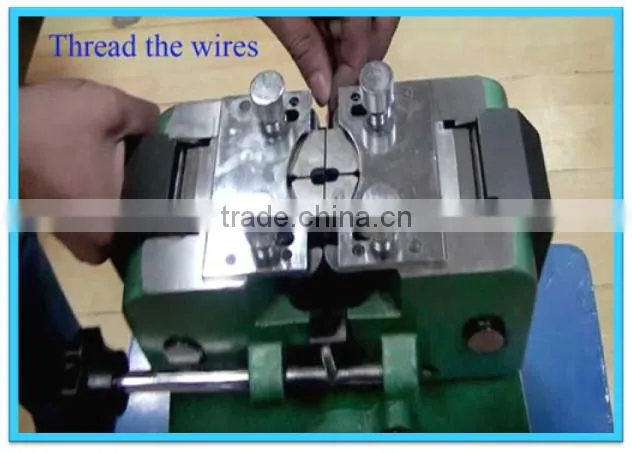

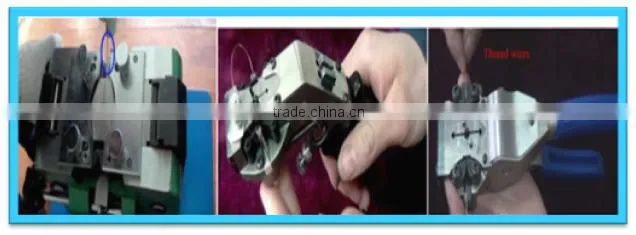

Each dies composed of four modules, six pin, four springs. Four modules are the two "1" modules and two "2" modules, which vary in size, diagonal arrangement. (See picture 1). There is no "1 ", "2"marks in the real dies.
After used the dies for a certain times, or some difficulty in welding the wires, we should clear up the dies as following steps:
1. Take out the modules, pay attention not to lose the spring when open it. Wipe up the surface of each module with a clean dry cloth. Don’t leave any scraps in it, especially no oil in the wireway, or it will slip when connect the wires.
4. Fasten the four modules with the module bracket.
5. Advantage of Our cold welder:
*One year quality guarantee for main welding Machine. Lifetime Maintenance.
*Competitive price.
*Flexible delivery for sample and big order. Usually most not quite big orders can be delivered within 3 working days after order confirmed.
*10 years working experience for production & Research and Development.
* Certificate: CE, CCC, ISO9001-2008; exporting entitlement.
* Agents & distributors & representatives are welcome for all countries.
6. Delivery:
*For small order, we recommend by express like DHL, FedEx, UPS, etc. Large order by air, by sea, by train.
*All welders are in stock, only need time to make welding dies.
7. Exporting Countries we have:
We had exported many countries with good result, like South Korea, India, Pakistan, Sri Lanka, Indonesia, Malaysia, Singapore, Philippines, Vietnam, Thailand, Australia, Iran, UAE, Saudi Arabia, Turkey, Kazakhstan, Uzbekistan, USA, Canada, Russia, Finland, Germany, Serbia, Slovakia, Romania, Egypt, South Africa, Morocco, Tanzania, Angola, Brazil, Mexico, Argentina, Chile, Colombia, etc.
Main benefits of using cold welding:
The weld cycle takes only seconds to complete and creates a permanent bond stronger than the parent material, without using heat, fillers or fluxes.
The welding part is stronger than original part, which can do drawing again.
After welding effect and test(8.0mm wires as follow):
10. Wire Exhibition pictures:
11. Contact Information:
(MISS) Lana Wei
Shanghai Shengzao Mechanical & Electrical Equipment Co., ltd
Tel: +86-021-52697550
M: 0086-13761084602 (wechat, whatsapp number)
Skype:lanalana0562
Website:
126mail name: lanaweishsh
