Plastic Foam Fast-food Box Forming Machine
- ningbo/shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, foam products | |
| Place of Origin | Zhejiang, China | Brand Name | fjl | |
| Model Number | FJL-eps | Voltage | 380/50 | |
| Power(W) | 80 | Dimension(L*W*H) | 8*1.5*2.3m | |
| Weight | 6t | Certification | CE, Other, CE, iso9001,2008 | |
| Warranty | 1year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
ustomize the products as required by the customer on the specifications, thickness and weight etc
Usage
With the equipments developed by ourselves, the testing workshop can produce including EPS foam fast box, aquatic product dish, supermarket dish, cake dish, and instant noodle bowl etc. we can customize the products as required by the customer on the specifications, thickness and weight etc. our products are popular both at home and abroad.
main technical parameters
Model | FJL-600/850 | FJL-600/1200 | FJL-1100/1250 |
Used Material | EPS Sheet Roll | ||
Sheet Thickness | 0.6-4mm | ||
Max.Forming Depth | 600*850mm | 600*1200mm | 1100*1250mm |
Max.Forming Depth | 120mm | ||
Running Speed | 4-15Mould/Min | ||
Forming Pressure | 12T | 14T | 16T |
Air Consumptions | 1.5m3/min | 1.6m3/min | 2.0m3/min |
Installed Power | 80KW | 100KW | 125KW |
Overall Diamensions | 8*1.5*2.3m | 8.5*1.5*2.3m | 16*2.1*2.5m |
Weight(T) | 6 | 7 | 10 |
Power Supply | 380V/50HZ Three phase four wires | ||

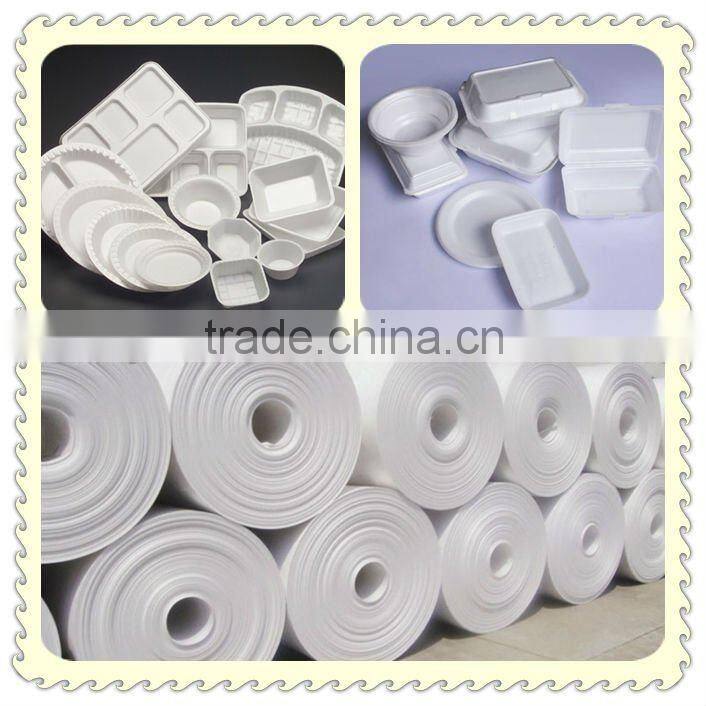

the samples

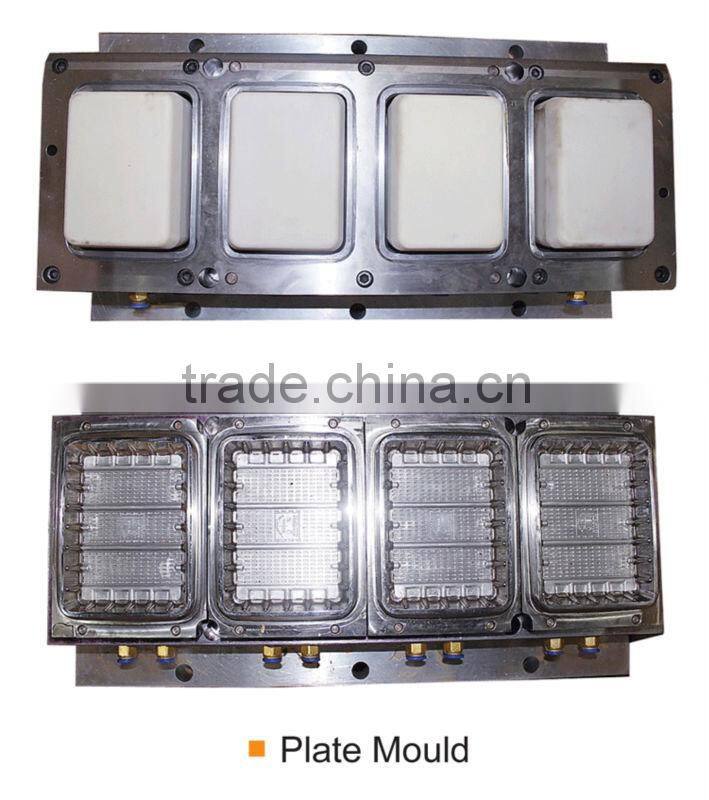

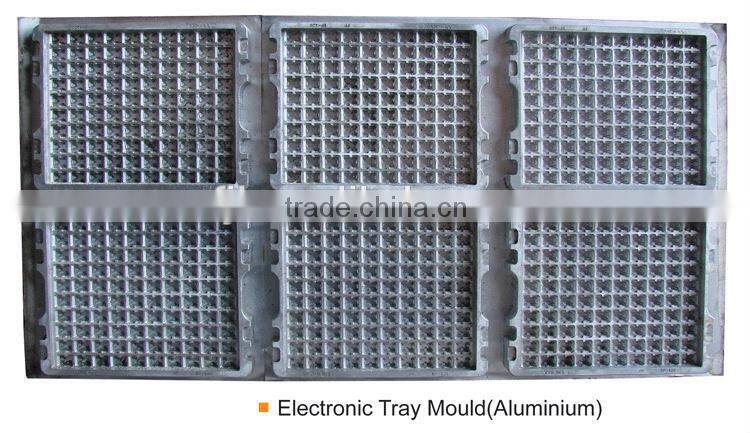

molds
WOODEN CASE
Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
WE have the specification of every machine.
Thanks for visiting our website , need more details welcome to contact me any time !
contact person: Sherry chen Tel:008618358758582
skype: fuxinlong02
