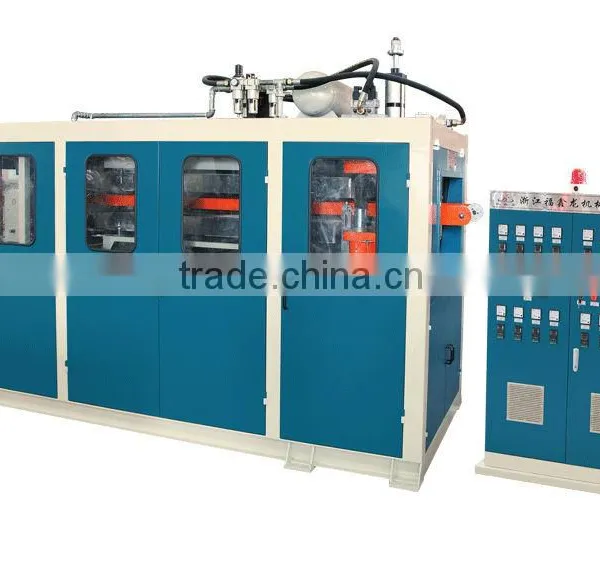

Help CenterFJL-750 Plastic Cup Cover Bowl Making Machine
Related Products
-
SZ-680II Automatic Plastic Glass Thermoforming MachineUS$ 18,000 - 30,000MOQ: 1 Set -
SZ-680II Automatic Plastic Glass Making MachineUS$ 18,000 - 30,000MOQ: 1 Set
-
SZ-680II Automatic Plastic Cup Making Machine Price,Plastic Glass Thermoforming Machine,Thermoforming MachineUS$ 18,000 - 30,000MOQ: 1 Set
-
SZ-680II Plastic Cup Making Machine PriceUS$ 18,000 - 30,000MOQ: 1 Set
-
SZ-680II Plastic Plate and Container Making Machine PriceUS$ 18,000 - 30,000MOQ: 1 Set
Specifications
1. The sheet feeding & stretching of plug inside of up mould are driven by servomotor.2. Controlled by PLC & touch screen.
I. Main Features:
1)It is mainly used to produce different plastic cups, such as ice cream cups, cold/hot drinking cups, yoghurt cups, jelly cups, coffee cup, etc. It could also make some regular shape products, such as bowls, dishes, trays, covers/lids, etc with different moulds.
2) The sheet is driven by pin chain and the pin chain is driven by servomotor. The feeding length could be adjusted by parameter setting through touch screen.
3) The stretching of plug inside of up mould is controlled by servomotor.
4) Mould adopts four pillars to fix the mould.
5 It adopts hydraulic system to drive the movement of the mould.
6) Fill oil automatically to lubricate mechanism movement at certain time.
7) Temperature controller modules to control up and down temperature area.
8) It can finish production at one time through sheet feeding, heating, stretching, forming and in-mould cutting.
9) Stable operation and reliable performance, low noise, high quality.
10) Machine frame adopts square bar to make it. Its lifespan will be longer.
11) The movement of heating oven is controlled by touch screen.
12) Waste sheet winder to collect the waste sheet.
13) Machine frame adpots square steel, machine will more stronger and stable.
14) Its forming sheets as PP, PVC, PS, and PET and other sheet.

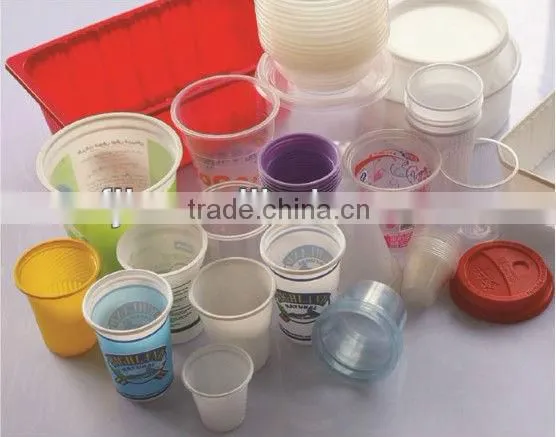

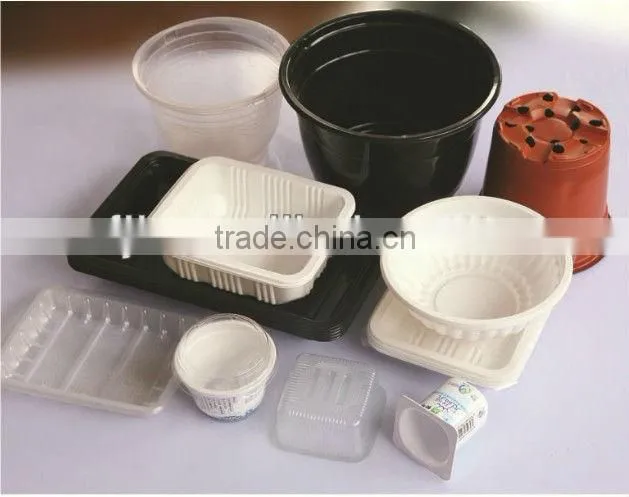

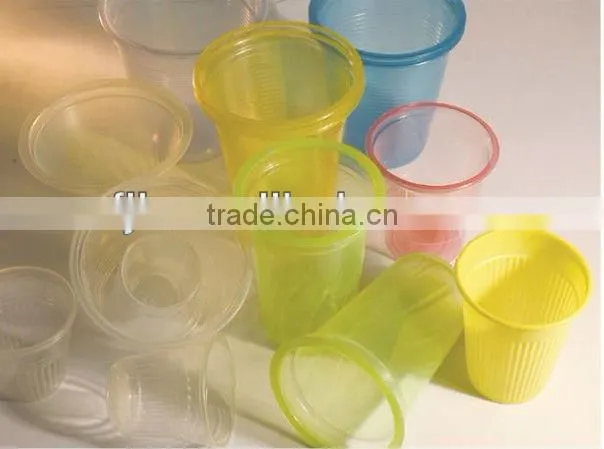

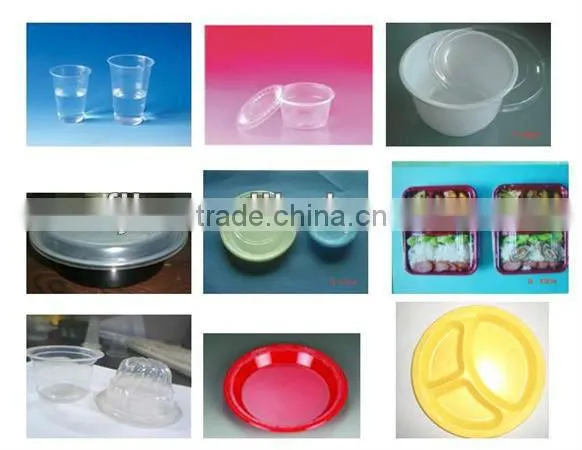

Samples of products:
II. Main Technical Parameter:
Model |
FJL-750 |
Max. Forming Area |
720 x 450 mm |
Running Speed |
15-32 cycles/min(according to sheet thickness, material used and product shape) |
Require Sheet Width |
500 – 660 mm |
Mode of Cutting Arrangement. |
In mould automatic |
Sheet Thickness Range |
0.20 – 2.0 mm |
Required Material |
PP,PS,PET,PVC |
Max. Forming Depth |
130 mm |
Main Motor Power |
15KW |
Max. Sheet Reel Dia. |
800 mm |
Heating System |
Top + bottom Heating with IR Ceramic Heater, total 15 heating zones. |
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
1 - 4 Rows |
Water Consumption |
0.5-1.0m3/h(recycled) |
Gas Consumption |
1.3-1.6m3/min, 0.6-0.8Mpa |
Approx. Electricity Consumption |
45KW/hr |
Dimension |
3500×1500×2500mm |
Weight |
4800Kg |
III. Some Parts of Machine:
