Specifications
Plastic Cup Thermoforming Machine is a king of heating forming equipment with high efficiency and full automatic,PLC contolled.Specification:
Max. Forming Area:650*320mm
Max. Forming Speed:15-30 times up to your products.
Pillars number:4 pcs
Max.Height:120mm

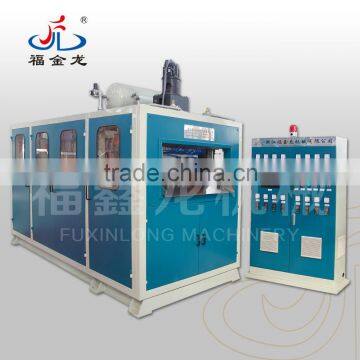

FJL-SZ-680II Plastic Cup Thermoforming Machine
Usage:
This machine is mainly used to form PP/PS/HIPS/PET/PVC sheet into various kinds of
disposable cups, such as water/juice drinking cup, yoghurt cup, ice-cream cup, jelly cup,
etc. It also could be used for making some regular shape containers,
such as plate, dish, bowl, covers, etc. You could make different products with different moulds.
This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.

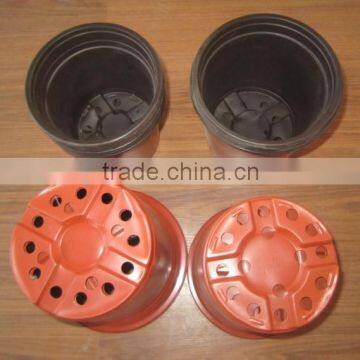

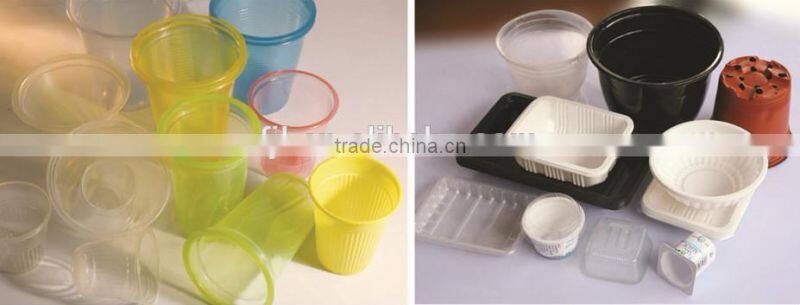

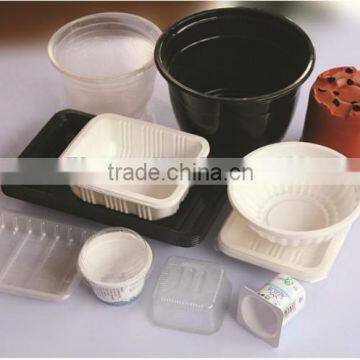

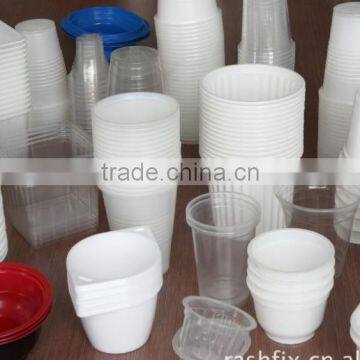

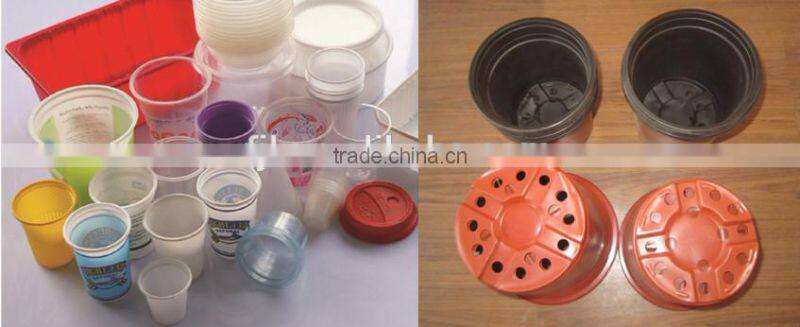

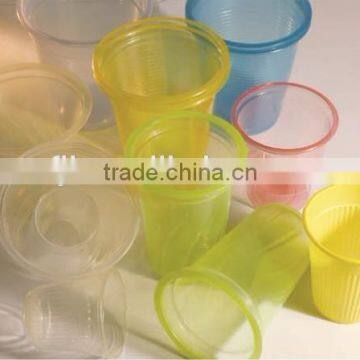

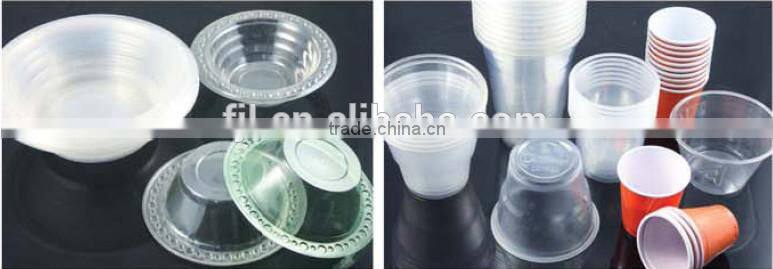

Samples of plastic products:

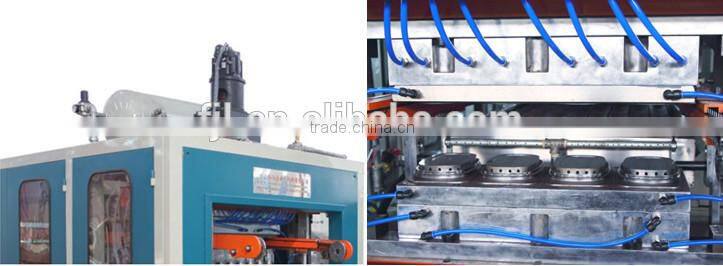

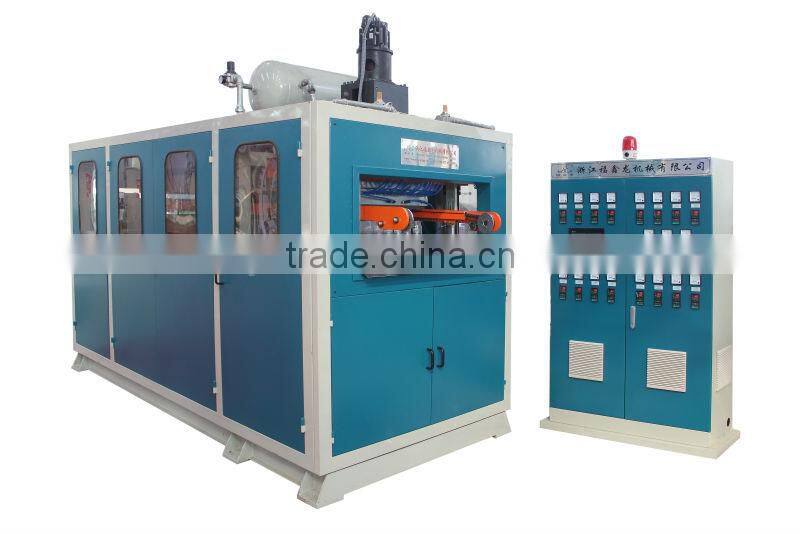

Machine details as follows:
Main Technical Parameter:
Machine Description |
Full-Automatic Servomotor Controlled Thermoforming Machine |
Model |
FJL-SZ-680 II |
| Approximate Forming Area | 650*320 mm |
| Strok/min approx.during production | 15-30 |
Require sheet width |
500-660 mm in rolls |
Mode of cutting arrangement |
In mould automatic |
Sheet thickness Range |
0.2-2.0mm |
Material |
PP,PS,HIPS,PET,PVC |
Max forming depth |
120mm |
Oil Pump Motor Power |
15KW |
| Max.Sheet roll diameter | 800mm |
| Heating arrangement | Top+bottom heating with IR Ceramic Heater(120pieces,650W) |
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
Multi cavity 1 to 4 rows |
We can send our technicians to customers’ factory to help test and install machines
with water,electricity and air supply.
Guarantee time is one year.Within one year,if there is some spare parts broken or
damaged not caused by human factors,we can send them free of charge,
but the freight should be on customers’ account.
Zhejiang Fuxinlong Machinery CO.,LTD,which is a professional manufacturer of
plastic sheet extruder,plastic cup thermoforming machine,automatic vacuum
forming machine and whole set of plastic packaging equipments.And at present,our
machines are sold all over the world,such as America,Australia,Russia,Romania,
Sweden,Macedonia,Canada,Peru,Mexico,Middle east,Southeast Asia,Africa and etc.
After more than ten years’ accumulation,we have our own professional technicians
and engineers,besides,we have the ability of developing new products by ourselves.
“Pursuing the international advanced level and make our customers satisfied” is
Fuxinlong enterprise’s quality policy. “Challenge ourselves and create excellent” is
our management idea.You are always welcome to our factory to have a visit for
establishing a long-term and friendly business relationship with each other.
We have our one excellent after-sales service team,who can tackle customer’s problems asap.
Machines will be packed in export standard packing
Auxiliary Equipment For Automatic Plastic Cup Making Machines:
Thank you for visiting our website.If more questions,freely contact us at any time:
Skype:fuxinlong01 Tel&Viber:+86-18358758585
