Specifications
Plastic Cup Thermoforming Machine is a king of heating forming equipment with high efficiency and full automatic,PLC contolled.Usage:
This machine is mainly used to form PP/PS/HIPS/PET/PVC sheet into various kinds of disposable
cups, such as water/juice drinking cup, yoghurt cup, ice-cream cup, jelly cup, etc. It also could be
used for making some regular shape containers, such as plate, dish, bowl, covers, etc.
You could make different products with different moulds.
Main Feature:
This is full-automatic plastic cup making machine which adopts servo-motor to feed and draw sheet. It controls by PLC and touch screen.
Main Technical Parameter:
Machine Description |
Full-Automatic Servomotor Controlled Thermoforming Machine |
Model |
FJL-660SB-D |
| Approximate Forming Area | 650*320 mm |
| Strok/min approx.during production |
15-30 |
Require sheet width |
500-660 mm in rolls |
Mode of cutting arrangement |
In mould automatic |
Sheet thickness Range |
0.2-2.0mm |
Material |
PP,PS,HIPS,PET,PVC |
Max forming depth |
130mm |
Oil Pump Motor Power |
15KW |
| Max.Sheet roll diameter | 800mm |
| Heating arrangement | Top+bottom heating with IR Ceramic Heater(104pieces,650W) |
Temperature Controller & Thermocouple |
PID K-Type |
Type of Mould |
Multi cavity 1 to 4 rows |
We can send our technicians to customers’ factory to help test and install machines
with water,electricity and air supply.
Guarantee time is one year.Within one year,if there is some spare parts broken or
damaged not caused by human factors,we can send them free of charge,
but the freight should be on customers’ account.

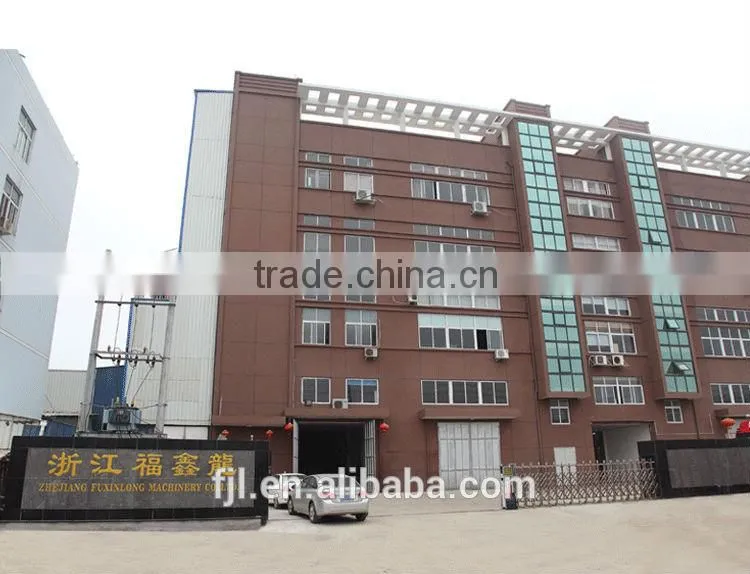

Zhejiang Fuxinlong Machinery CO.,LTD,which is a professional manufacturer of plastic sheet
extruder,plastic cup thermoforming machine,automatic vacuum forming machine and whole
set of plastic packaging equipments.And at present,our machines are sold all over the world,
such as America,Australia,Russia,Romania,Sweden,Macedonia,Canada,Peru,Mexico,Middle
east,Southeast Asia,Africa and etc.
After more than ten years’ accumulation,we have our own professional technicians and
engineers,besides,we have the ability of developing new products by ourselves.
“Pursuing the international advanced level and make our customers satisfied” is Fuxinlong
enterprise’s quality policy. “Challenge ourselves and create excellent” is our management idea.
You are always welcome to our factory to have a visit for establishing a long-term and friendly business relationship with each other.
We have our one excellent after-sales service team,who can tackle customer’s problems asap.
Machines will be packed in export standard packing
If any questions,freely contact Ms Sarah Zhao:
Skype:fuxinlong01 Tel:+86-18358758585
