automatic eps foam sheet machine

Specifications

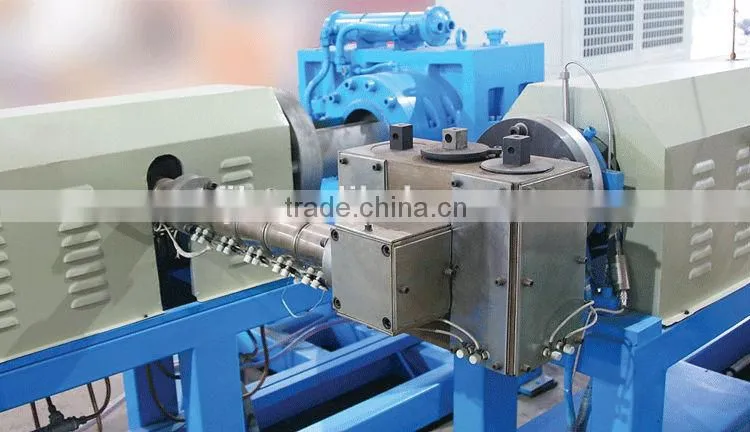

This machine is PS foam sheet extruder
(1) output: 160-200kg/h
(2) thickness:0.6-4mm
(3) good qulity and low noise

Usage:

This machine is designed to produce monolayer PS foam sheet which is used to make fast-food box, supermarket dish, cake dish, KT sheet and instant noodles bowl etc .



I.Main Technical Parameters

Model	FJL-65/90	FJL-90/120	FJL-120/150
Capacity	60-90kg/h	160-200kg/h	240-340kg/h
Sheet Thickness	0.6-4mm(adjustable)
Sheet Width	450-1250mm
Expansion	10-25
Dimension	3*4*20m	3*4*28m	3*4.5*33mm
Installed Capacity	120KW	220KW	310KW
Power Supply	380V/50HZ Three phase four wires



II.Main construction features

1. EPS foam sheet unit adopts the up-to-date gondi double-stage high foam technology.

2. It uses the general polystyrene as raw material. In the extrusion process, foaming agent is injected with high pressure.

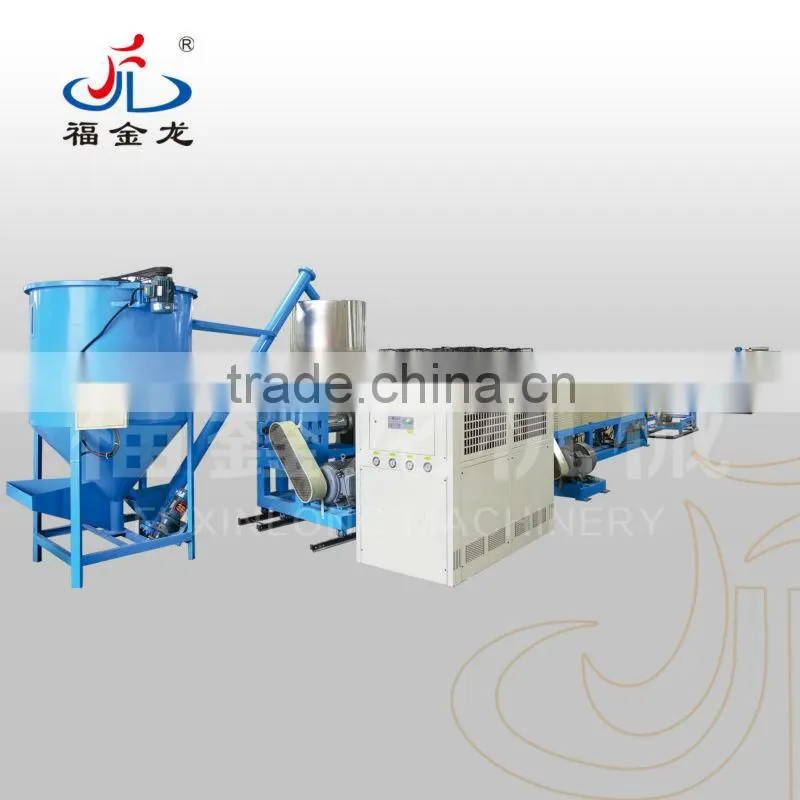

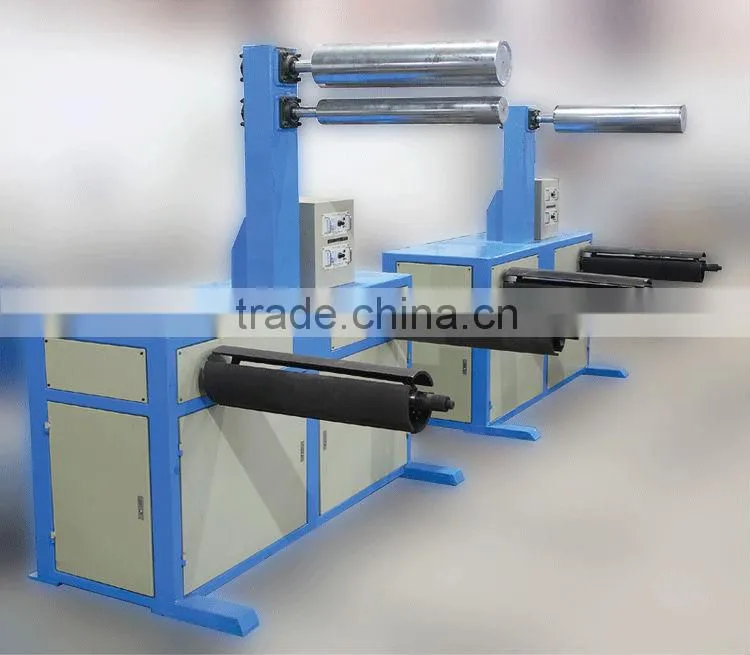

3. It's made up of primary/secondary screw+butane pump+extrusion mould head +mold device + traction engine and rewinder .

4. This machine adopts Non-stop fast screen changer to improve production efficiency.

5. The screw adopts big Ratio L/D Ratio to ensure good plasticizing .

6. The frame of the main extruder adopts square steel to make sure the machine works stably.

7. Good qulity , work stably,low noise and reliable function.

III.Some Sample





















VI.Marketing

During Last ten years ,we participated Chinaplas fair , Canton Fair,K show and other professional plastic machinery exhibition at home and aboard. Our products are sold around the world,for example , Sweden, Romania,Russia,Canada,Peru,Mexico,Mideast,Southeast Asia,Africa and etc.



V.Certification













VI.Our advantage

Our Company has good after sales service as well as installation and debugging of machine ,technical training, meanwhile we can provide the special equipments according to customer requirement.





Thanks for visiting our website , need more details welcome to contact me any time !



contact person: Sherry chen    Tel/Whatsapp:008618358758582



skype: fuxinlong02
