plastic extrusion machine manufacturers

Specifications

Used to make PP PS PE plastic sheet.
(1) Max output: 100~400kg/h
(2) certification:CE, ISO9001
(3) Good qulity and low noise



  plastic extrusion machine manufacturers



Usage

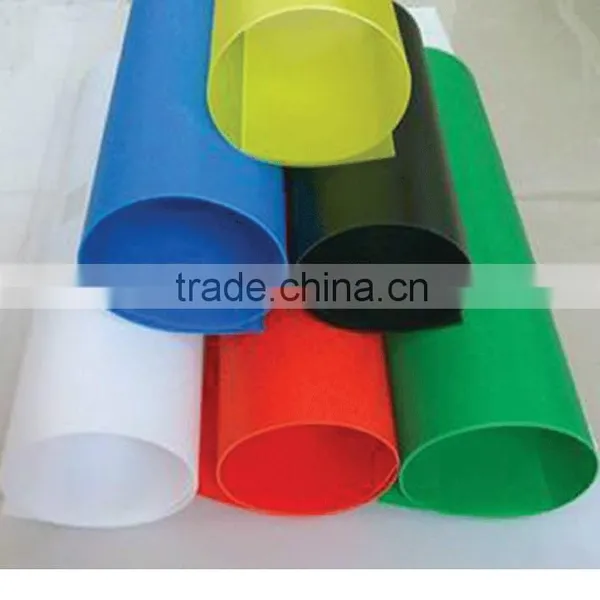

This machine is designed to produce monolayer PP / PS / PE  plastic sheets which are used to make disposable drinking cups ,ice-cream cups , yoghurt cups ,plates and etc.



I.Main Technical Parameters

Model	FJL-PC-90-B	FJL-PC-100-B	FJL-PC-105-B	FJL-PC-110-B	FJL-PC-115-B	FJL-PC-120-B
Raw Material	PP.PS.HIPS.PE
Sheet Thickness	0.3-2mm
Layer	1
Extrusion Capacity	100kg/h	150kg/h	175kg/h	200kg/h	225kg/h	250kg/h
Screw Dia	Φ90mm	Φ100mm	Φ105mm	Φ110mm	Φ115mm	Φ120mm
L/D Ratio	32:1
Roller Dia	Φ300mm	Φ320mm	Φ350mm	Φ350mm	Φ400mm	Φ450mm
Main Motor Power	37KW	45KW	45KW	55KW	75KW	90KW
Overall Power	90KW	100KW	110KW	120KW	135KW	160KW
Weight(T)	5.5	6	6.5	7	7.5	8
Power Supply	380V/50HZ Three phase four wires



II.Main construction features

The sheet extrusion unit is a combination of extruder, three roll calendar, haul-off unit, winder (including waste sheet winder) and electric control cabinet.

The main parts, such as screw, barrel, screen exchanger, T-die adopt superior alloy steel (38 CrMoAIA) with high hardness, strong corrosions resistance and long operating life after nitrogen treatment.

The screw adopts big L/D (length/diameter) Ratio, equal plasticization and high plasticizing capability.

Non-stop fast screen changer with double-sieve, controlled by hydraulic device, the operation is convenient and improve the production efficiency.

The calendar, haul off unit and winder adopt integration design, fine appearance, convenient and fast installation and adjustment.

The machine frame adopt square steel, to make sure the machine works stably in high speed. The motor is connected with gear box directly, improve production efficiency and lower energy consumption.

Note: special specification and configuration of products can be designed according to customers’ demand.

Optional

Motor type screen changer or hydraulic type screen changer.

Independent motor control each roller.

Double-position winder





















PVC powder + additive → mixing → spring feeder/vacuum feeder → single screw extruder → mould and calibrator → vacuum forming machine → haul off machine → printing → cutting machine → discharging stacker bracket/belling machine











Note:We can customize the machine according to customer request.
