Specifications
3D 100w YAG laser marking machine for tyreCertificated by CE,ISO,FDA
warranty :1 year

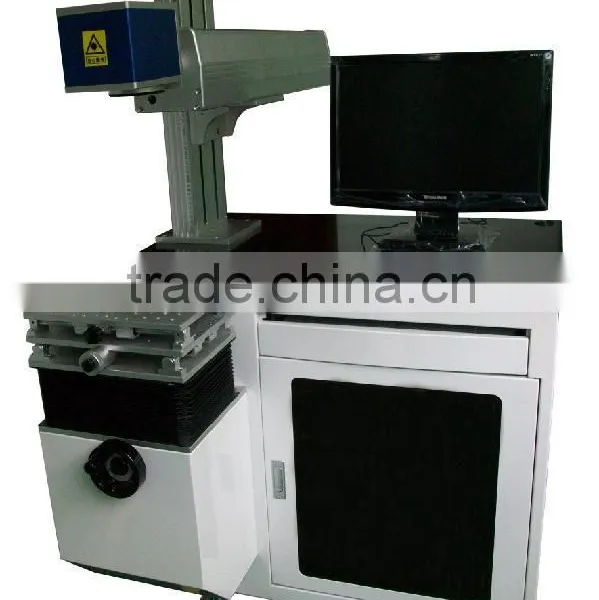

KL-YAG-100W Laser Marking Machine for bearing
Features
The structure has been improved much, adopting digital control system which has high speed and precision. Optics system adopts seal structure, more elegant shape, more convenient operation. It is equipped with the latest external water cooling system, lower noise, higher precision for temperature adjustment. Professional control software can achieve automatic scheduling and editing for text, symbols, graphics, photos, bar codes, 2D code, serial numbers, etc.
Applicable materials
All metal materials, alloy ands some non metal materials.
Applicable industry
metal, alloy, oxide, ABS, epoxy resin, etc. It is widely used for electronics, jewelry, automobiles, communication, plastic buttons, IC, etc.
Technical parameters
Laser Type |
Nd;YAG |
Laser Power |
50w/75w /100w(optional) |
Whole Machine Power |
2.5KW |
Mini Line Width |
0.015mm |
Laser Wavelength |
1064nm |
Laser Repeating Frequency |
≤50KHZ |
Max Marking Speed |
7000mm/s |
Oscillating Mirror Area |
110mm*110mm (optional) |
Cooling System |
water cooling and protection system |
Working Voltage |
220V/50HZ (110V/60HZ) |
Matching Device |
semiconductor module |
Graphic Format Supported |
PLT, PCX, DXF, BMP, AI |
Working Temperature |
15°C—35°C |
Mini Character |
0.2mm |
Pulse Frequency |
50KHZ |
Marking Depth |
≤0.5mm |
Repeat Precision |
±0.0001mm |
Marking Way |
plane, cylinder |
Weight |
168kg |
Overall Dimension |
1110x1080x1300(mm) |
LCD display and keyboard |
include |
Package |
plywood case |
