Home > Products > Vertical Mill > HJMS Series Super fine Vertical SlagGrinding Mill
HJMS Series Super fine Vertical SlagGrinding Mill
- 100 Set / Sets per Month
- Nantong Shanghai port etc.
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Haijian | Model Number: | HJMS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China Top Brand Slag Vertical Mill / Grinding mill of
Jiangsu Haijian Stock Co.,Ltd
1) Brief Introduction of Vertical Mill
Vertical Mill is widely used in mining industry, chemical industry and metallurgical industry to grinding material into fine powder. The finished powder can be used for water proof material manufacturing, producing abrasive material, etc.
2) Application of Vertical Mill
Vertical Mill is a used for milling materials into powders after they are crushed. Vertical Mill is widely applied to the production of dolomite, kaolin, marble, silica sand, cements, silicate products, building materials, fireproof materials, fertilizers, ceramics as well as nonferrous and ferrous metal processing industries
3) Structure of Vertical Mill
The machine is included of Vertical Mill, blower, analyzer, cyclone separator, dust collector, and duct system. The main mill is consisting of up and down body, grinding roller, grinding ring and reducer. We also offer jaw crusher, elevator, vibrating feeder, electric control gear and motor, Roller press ,Ball mill, Rotary Kiln, Dryer etc according to the users' requirement.
Main Technology Doucment of HJMS Slag Vertical Mill
Mill model | Dia. Of mill(mm) | Dia. Of track of mill disc(mm) | Average diameter of mill roller(mm) | Number of mill roller | Speed of mill disc (rpm) | Capacity(t/h) | Loading power(KW) | |
HJMS Standard parameter of HJMS slag vertical mill | ||||||||
HJMS50.41 | 5,000 | 4,266 | 2,360 | 4 | (2+2) | 25.9 | 120 | 3500 |
HJMS46.41 | 4,600 | 3,908 | 2,240 | 4 | (2+2) | 27.0 | 100 | 3150 |
HJMS43.41 | 4,300 | 3,608 | 2,120 | 4 | (2+2) | 27.9 | 85 | 2800 |
HJMS40.41 | 4,000 | 3,411 | 1,900 | 4 | (2+2) | 29.0 | 75 | 2000 |
HJMS35.41 | 3,500 | 2,932 | 1,800 | 4 | (2+2) | 30.9 | 60 | 1800 |
HJMS34.41 | 3,400 | 2,868 | 1,700 | 4 | (2+2) | 31.4 | 50 | 1600 |
HJMS32.41 | 3,200 | 2,694 | 1,600 | 4 | (2+2) | 32.4 | 45 | 1400 |
HJMS30.41 | 3,000 | 2,520 | 1,500 | 4 | (2+2) | 33.4 | 40 | 1250 |
HJMS28.41 | 2,800 | 2,346 | 1,400 | 4 | (2+2) | 34.6 | 35 | 1000 |

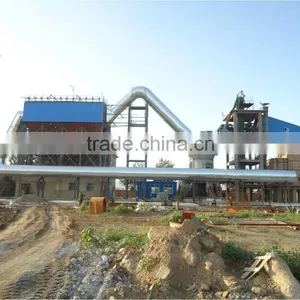

Some pictures of Production
Test Process
Delivery by Shipment
HJMS mill manufactured in our company is a kind of roller mill which can match 2,3 or 4 rollers according to the request. Each roller is composed of fixed rocker arm, frame of rocker arm and hydraulic system which come into grinding power unit , is a complete or standard parts. It is arranged into two compartments, three compartments or four compartments around mill disc.
Look from the technology and economy, HJMS vertical mill is an advanced grinding equipment. Comparing with traditional grinding equipment, the advantages are as the follows:
Grind all kinds of different material
Small area
Low consumption
Convenient adjustment
Quick control response
Convenient maintenance(Not need to dismantle the easily wear-out parts
Small vibration from start to stop
Small noise
Strong adaptability
Our Services of Vertical Mill
Pre-sales Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
After-sales Service
1. Highly inspecting equipments in every working procedure, quality comes first;
2. Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4. Dispatching engineers to install and debug equipments;
5. Training the first-line operators on site;
6. Regularly visit clients to solve production problems;
7. Providing life-long maintenance service;
8. Providing technical exchanging;
FAQ
How to choose the suitable grinding mill?
1. Know the hardness of your own ore.
2. Choose the energy-saving grinding mill to the great extent.
3. Know the ore fineness required.
4. Choose the right diameter and length of the grinding mill according to the output requ irement.
5. Buy it from the professional grinding mill manufacturer relative to your ore which would be best.
6. The manufacturer should hold the market share in the place where your enterprise located.
JIANGSU HAIJIAN STOCK CO., LTD.
Brief Introduction
Haijian Company is situated in the world-famous Yangtze River Delta Economic Zone, Shanghai Economic North circle---Jiangsu Haian. This boasts lots of picturesque sceneries and outstanding talents. The company is 200 kilometers away from Shanghai---the cosmopolis---to the south and from Nanjing ---the capital of Jiangsu Province to the west.
Haijian, established in 1970, was reformed into a provincial public run shareholding enterprise in November 2003. It is staffed by 500 workers, 25% of whom are engineering technical management personnel. The company covers an area of 100000 square meters, with a building area of 55000 square meters. It possesses fixed assets worthy of close to 0.1 billion yuan, and it holds own 65 million yuan in all. It machines and cuts 50000 tons of produces every year.
Dominant Products
The company has dominant products of 5 series, over 30 categories, and over 500 types such as, new-type of dry-process rotary with a daily production of below 5000 tons, principal machines(such as rotary kiln, roller press, tube mill, vertical mill and dryer.) all kinds of machines for dust filtering, powder separator, conveying equipment and garbage burning. Among them, one product was awarded silver medal by International Expo, three products were elected excellent products and famous-brand products by China Building Materials Machinery Industry Association, five won the title of provincial and municipal high-quality and famous-brand products. Roller press, one of the key scientific and technological projects of national seventh-five year plan,” has successively got over ten awards, such as, second prize of National Science and Technology progress Prize, Gold medal of National Science and Technology Expo,” Golden Bull”’ prize for provincial excellent new products, Jiangsu Famous Brand Products, China Famous Product etc. and was listed in National Torch Plan.
Warmly welcome to Haijian to conduct instruction, negotiation, investment and cooperation for our common development and prosperity!
