Production Description:

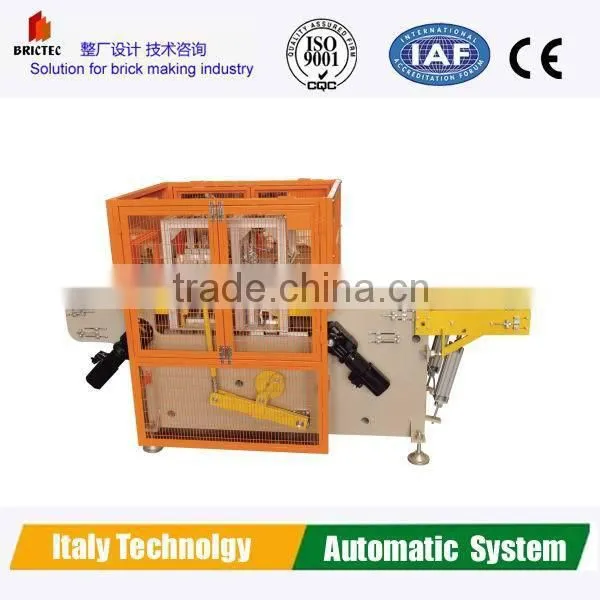

Slug Cutter SQT500*300 is mainly used for cutting the material which are extruded from vacuum extruder in certain length .The entire working process is under automatic control of PLC.
Its cutting wires are pneumatically tensioned, and the space between wires can be adjusted according to the requirements of making different products. In order to keep wire sharp, sections flat and service life of wires have been improved. Before cutting, a sensor equipped on the driven shaft of conveyer can detect the speed of material from the extruder to the control center accurately, and the cutting frame is driven to move simultaneously with the extruded material, which ensures the cutting sections to be perpendicular to the bottom surface, and reduce the waste.
**Technical Parameters**
Specification |
Cutting Frequency (time/min.) |
Cut billet length(mm) |
Working Pressure (MPa) |
Power (kW) |
Dimensions(mm) |
|
SQT500×300 |
30 |
>500 |
0.6~0.8 |
Single Power |
Total Power |
4300×1140×2065 |
2.2 |
5.75 |
|||||
1.5×2 | ||||||
0.55 | ||||||
**Packaging & Shipping**
Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. Normally, we ship the goods by MAERSK,MSC,CMA-CGM etc. the big shipping company guarantee goods in safety.
**Our services**
Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
Company Introduction
Xi'an Brictec Engineering Co. Ltd., not only sales brick making machines ,but also provide customers with the overseas and domestic fired brick designing, kiln designing, factory building designing and turn-key project .We provide solutions to brick making industry by a group of professionals who have more than 25 years of experience in this kind of industry .There are 6 professor- level engineers and 10 with a high title . We cooperates with main brick machinery factories to supply customers the most suitable machinery.
We have our office in Bangladesh, India, Nepal,etc., and we also have our local team for afetr sales service. In addition, we have done many projects pverseas and we have a lot experience for brick making with different material in different countries.
So, we produce the machinery according to the material features in the country like Bangladesh, Pakiatan, Nepal, Russian., so the machinery can meet the needs customers from different places.
**Business Scope**
I. Design and construction of a turn-key project for modern plant;
II. Design and installation of highly energy efficient and productive tunnel dryer and tunnel kiln system;
III. Retrofit and modernization.
**FAQ**
1. what's the raw material for producing bricks?
Answer: clay, mud, gangue, shale etc.
2. how much land area for building a new brick plant?
Answer: it need above 20,000 square meters, the land area relate with capacity
3. when you need our proposal and quotation ,what you have to mention in your inquiry.
Answer: please provide daily capacity, the brick size and you want to build a new brick plant or brick making machinery only. so we can give the proposal and offer accordingly.
4. what's the Trade terms?
Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP
5. how many countries exported this machinery.
Answer:Russia,Kazakhastan,Uzbekistan,Monglia,Iran,Iraq,Poland,Pakistan,India,Nepal,Bangladesh, Vietnam,Malaysia,Egypt,Argentina,SouthAfrica,Libya,Burundi,Uganda,Sudan,Venezuela, Colombia,Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania
