**Production Description**

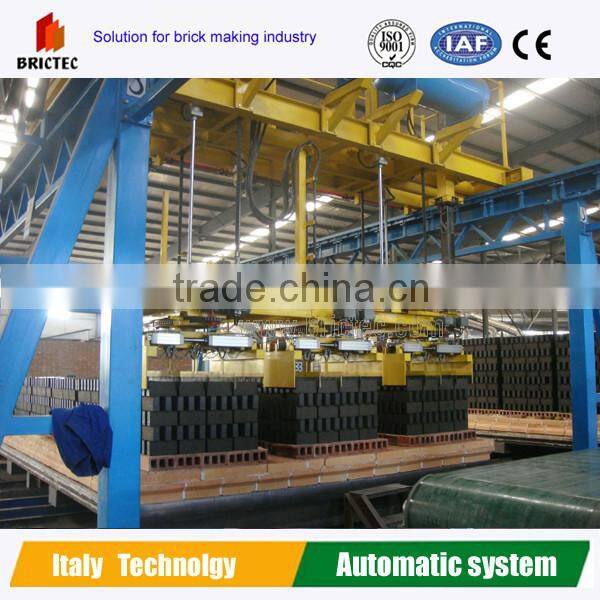

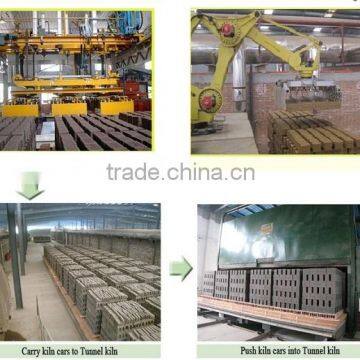

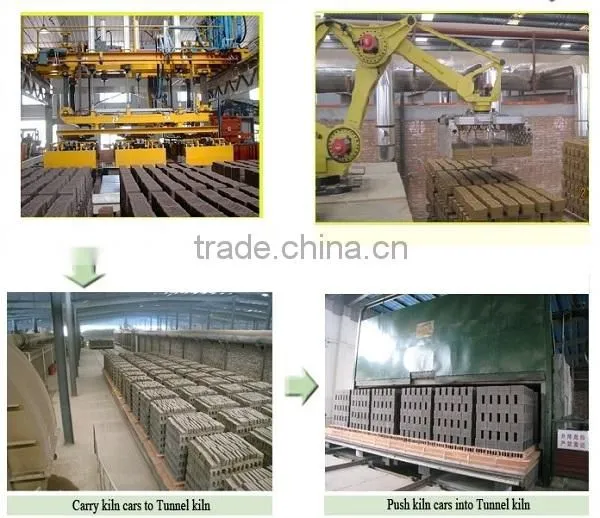

It is used for the setting of bricks from belt conveyer onto the kiln car in the form as customer required. Its high-performance mechanical structure and electrical control systems can ensure the setting stability and reliability. Relying on proper integration of mechanical and pneumatic lifting of grippers, the lifting process is stable without the risk of brick falling caused by inertia. The main air channel is provided with an electronic air pressure detection device which is convenient for controlling the pressure of chuck double-effect cylinder, and avoiding impacts of unstable pressure to adobe clamping (if the pressure is too high, the bricks can be damaged or fail to be gripped), and a friction torque limiter is used to keep rotation of gripper stable, and the traveling and lifting are stable and accurate in positioning under control of inverter and encoder.
**Technical Parameters**
Type |
Production Capacity (standard pcs/h) |
Working Pressure(MPa) |
Power (kW) |
Overall Dimensions (mm) |
|
MPJ-3T |
23000 |
0.6~0.8 |
Single Power |
Total Power |
(9000~13500)×6315×6300 |
7.5 |
11.61 |
||||
3 | |||||
0.37×3 | |||||

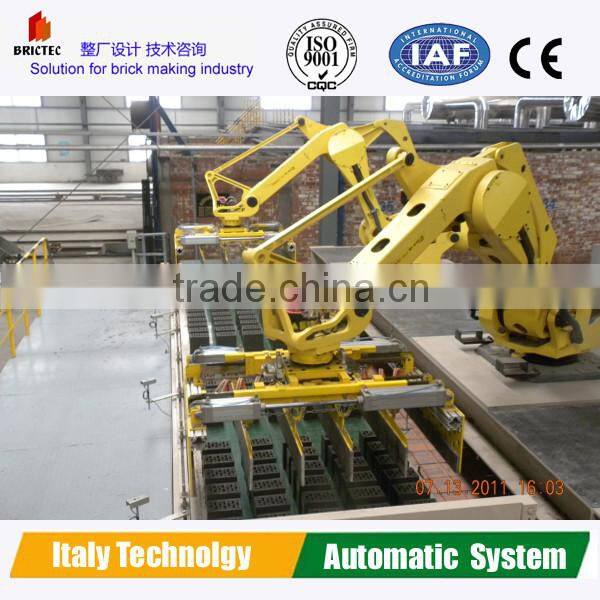

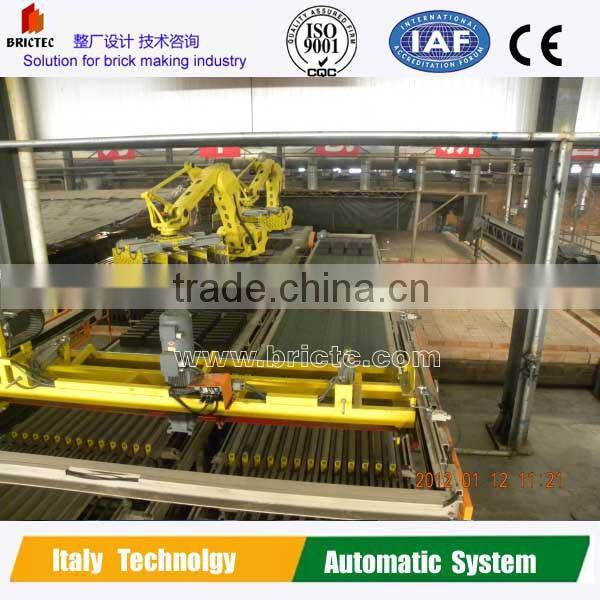

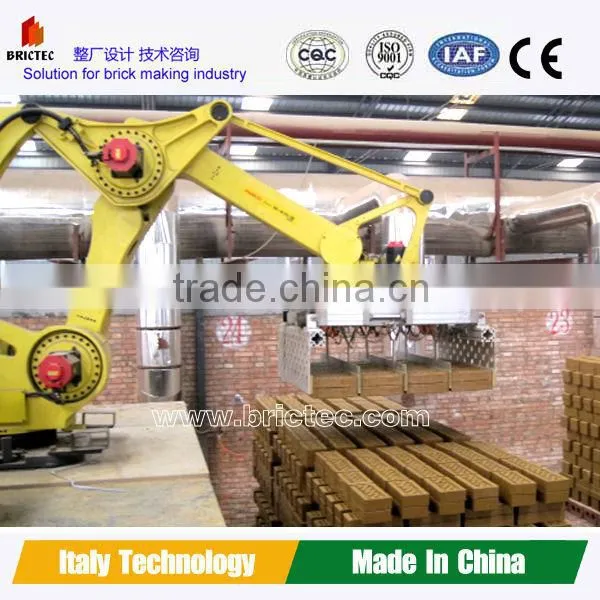

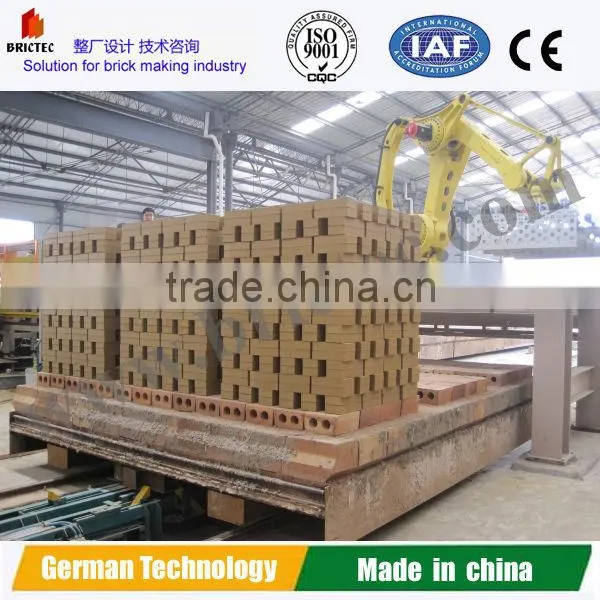

Robotic setting machine
The Robotic setting machine is steady and requires less in space. It’s more flexible in fitting with different kiln types and different output, also more convenience for old factories to reform existing production line.
**Packaging & Shipping**
Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. Normally, we ship the goods by MAERSK,MSC,CMA-CGM etc. the big shipping company guarantee goods in safety.
**Our services**
Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
**Company Introduction &service**

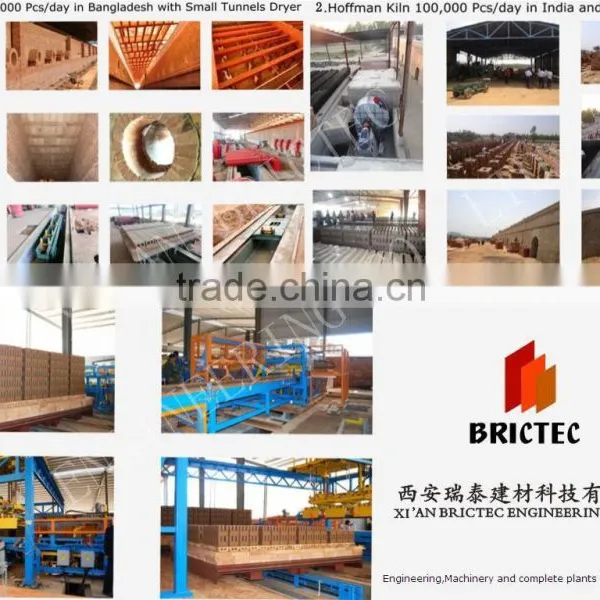

Xi'an Brictec Engineering Co. Ltd., not only sales brick making machines ,but also provide customers with the overseas and domestic fired brick designing, kiln designing, factory building designing and turn-key project .We provide solutions to brick making industry by a group of professionals who have more than 25 years of experience in this kind of industry .There are 6 professor- level engineers and 10 with a high title . We cooperates with main brick machinery factories to supply customers the most suitable machinery.
We also will provide project design and feasibility study, and suitable machinery for the design ,and help with kiln construction and supervision .Our professional technicians will be sent for project running and trial production. And our service is called one-stop service.
**Business Scope**
I. Design and construction of a turn-key project for modern plant;
II. Design and installation of highly energy efficient and productive tunnel dryer and tunnel kiln system;
III. Retrofit and modernization.
**FAQ**

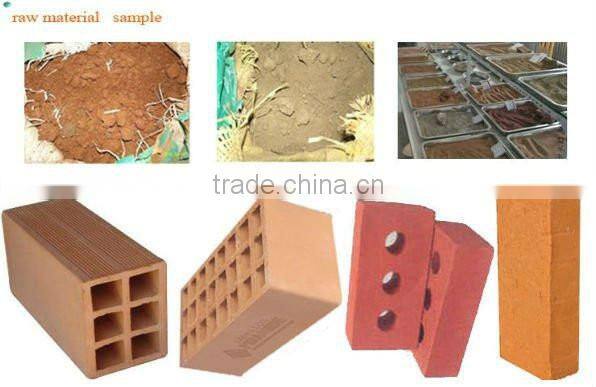

1. what's the raw material for producing bricks?
Answer: clay, mud, gangue, shale etc.
2. how much land area for building a new brick plant?
Answer: it need above 20,000 square meters, the land area relate with capacity
3. when you need our proposal and quotation ,what you have to mention in your inquiry.
Answer: please provide daily capacity, the brick size and you want to build a new brick plant or brick making machinery only. so we can give the proposal and offer accordingly.
4. what's the Trade terms?
Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP
5. how many countries exported this machinery.
Answer:Russia,Kazakhastan,Uzbekistan,Monglia,Iran,Iraq,Poland,Pakistan,India,Nepal,Bangladesh, Vietnam,Malaysia,Egypt,Argentina,SouthAfrica,Libya,Burundi,Uganda,Sudan,Venezuela, Colombia,Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania
