**Production Description**

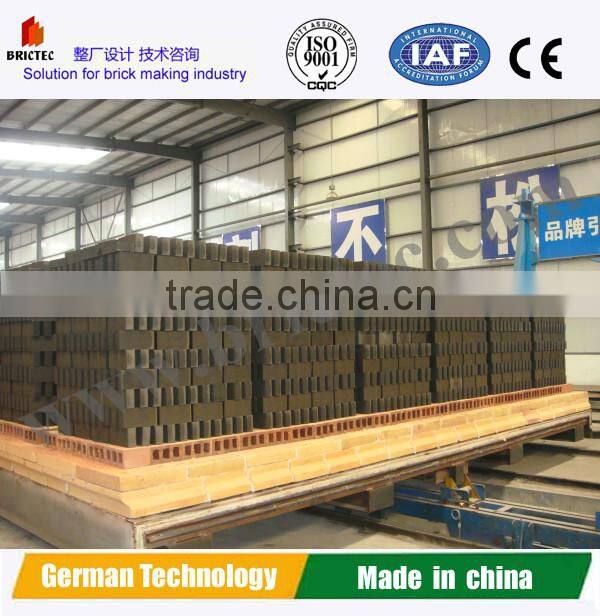

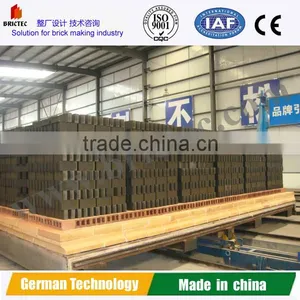

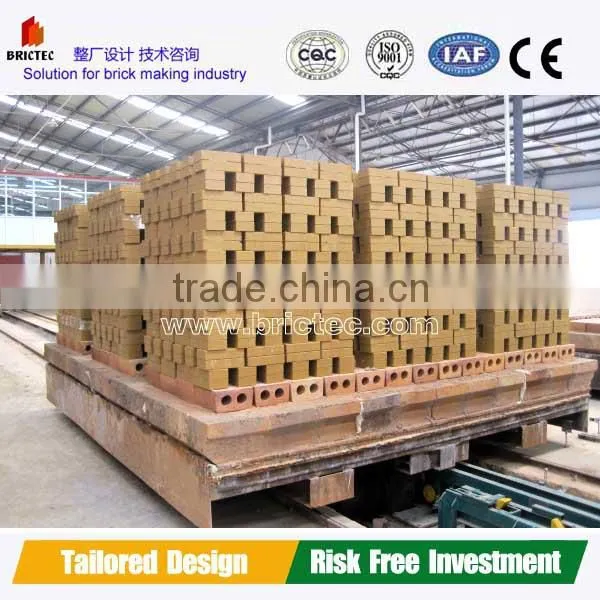

It is used for the setting of bricks from belt conveyer onto the kiln car in the form as customer required. Its high-performance mechanical structure and electrical control systems can ensure the setting stability and reliability. Relying on proper integration of mechanical and pneumatic lifting of grippers, the lifting process is stable without the risk of brick falling caused by inertia. The main air channel is provided with an electronic air pressure detection device which is convenient for controlling the pressure of chuck double-effect cylinder, and avoiding impacts of unstable pressure to adobe clamping (if the pressure is too high, the bricks can be damaged or fail to be gripped), and a friction torque limiter is used to keep rotation of gripper stable, and the traveling and lifting are stable and accurate in positioning under control of inverter and encoder.
**Technical Parameters**
Type |
Production Capacity (standard pcs/h) |
Working Pressure(MPa) |
Power (kW) |
Overall Dimensions (mm) |
|
MPJ-3T |
23000 |
0.6~0.8 |
Single Power |
Total Power |
(9000~13500)×6315×6300 |
7.5 |
11.61 |
||||
3 | |||||
0.37×3 | |||||

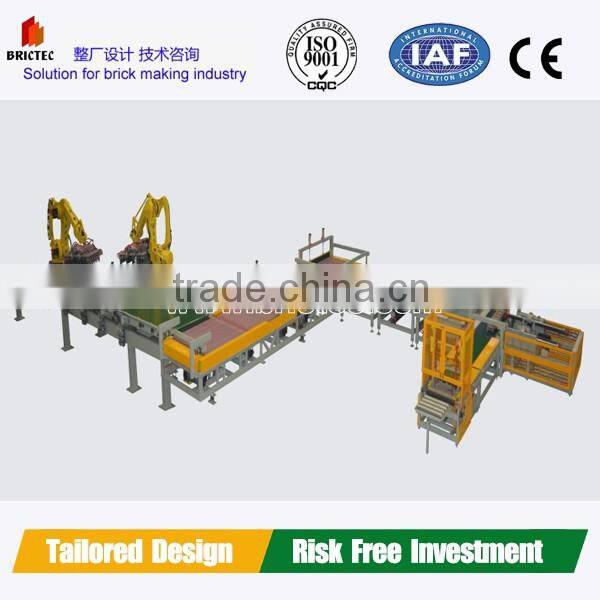

Automatic loading and unloading system
We have two different choices in brick setting zone of automation: Mechanic or Robotic setting machine. The gripper unit of both is properly designed and adopts double-control of positioning. The holding force is constant, adjustable and accurate. By monitoring of signal feedback, it realizes the alignment and synchronization of gripper with kiln car and conveyor. The cushion system avoids the possibility of brick falling. The type of gripper can be personalized designed based on different production process.

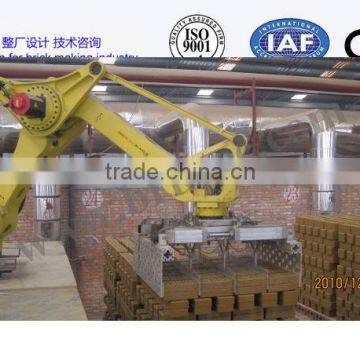

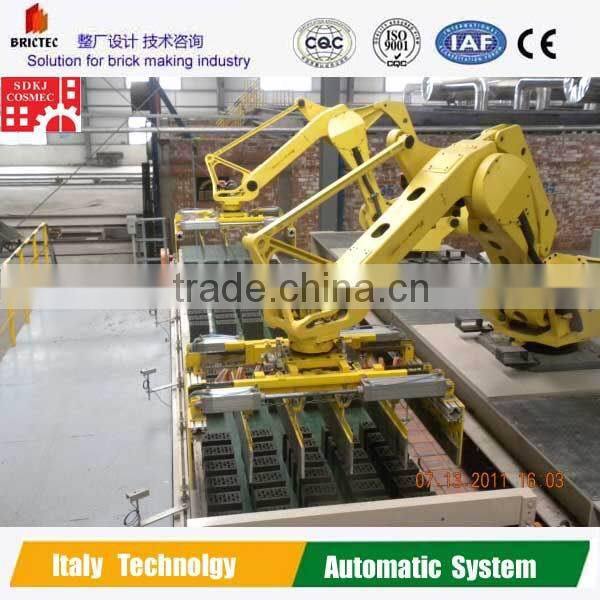

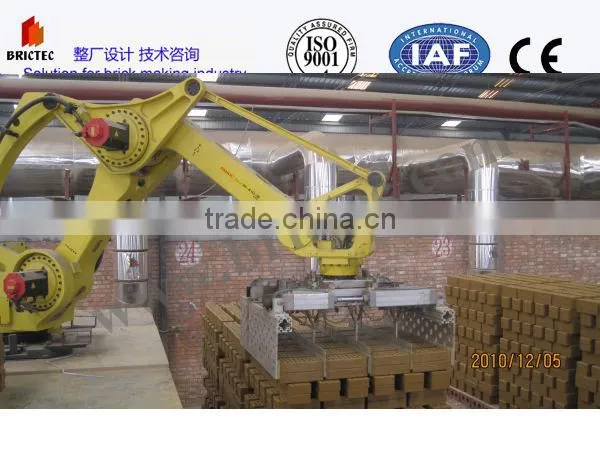

Robotic setting machine
The Robotic setting machine is steady and requires less in space. It’s more flexible in fitting with different kiln types and different output, also more convenience for old factories to reform existing production line.
Mechanic setting machine
The main advantage of mechanic setting machine is high stability and large in capacity. It moves steady and more convenience to repair. With cushion system, it has low possibility to drop under the same condition. It can meet requirement of brick factory with output 60 Million Bricks/Year.
**Packaging & Shipping**
Wooden-packing for spare parts of brick making production line, such as aguers, mixing paddles, air compressor is easy damage, it necessary packed in wooden box. Normally, we ship the goods by MAERSK,MSC,CMA-CGM etc. the big shipping company guarantee goods in safety.
**Our services**

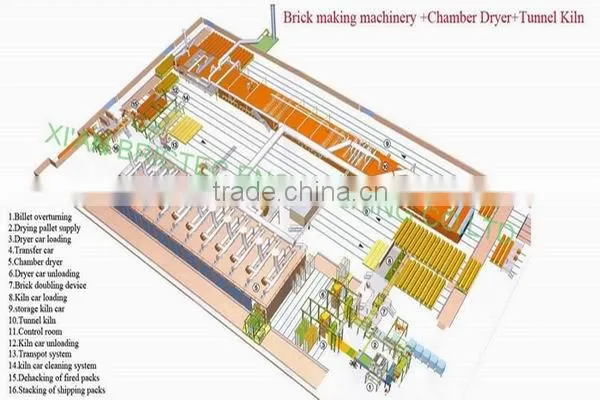

Before sale: Give some advices to customer on how to build a new-brand brick plant and choose the best and economic plant according to the local situation for recovering the investment within a short time; We are also responsible for the offer, flow chart, and detailed information of each machine.
In sale: We will send the technicians to coach brick making machines installation and debug machines. We also train the local operators till they can fully control them.
After sale: Regularly visit customers, solve all the problems with the machine and take advice from customers.
Company Introduction:
Xi' an Brictec Engineering Co., Ltd, we are leading supplier of brick&block making machinery and whole solution for brick&block industry in China.
Brictec owns the most professional salesmen and design engineers, and it devotes itself to the following business:
1. Brick making machinery supply
2. Design & construction of dryer & kiln
3. Design & construction of brick factory
4. Consultation service and production management
Local team for after sale service overseas
**FAQ**

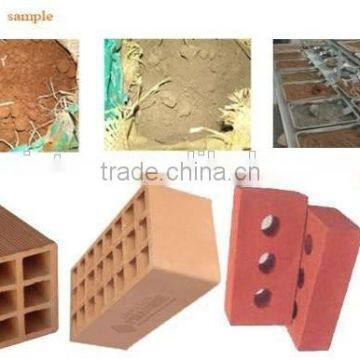

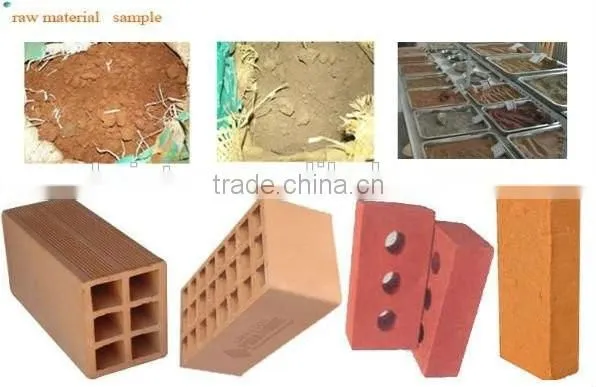

1. what's the raw material for producing bricks?
Answer: clay, mud, gangue, shale etc.
2. how much land area for building a new brick plant?
Answer: it need above 20,000 square meters, the land area relate with capacity
3. when you need our proposal and quotation ,what you have to mention in your inquiry.
Answer: please provide daily capacity, the brick size and you want to build a new brick plant or brick making machinery only. so we can give the proposal and offer accordingly.
4. what's the Trade terms?
Answer: it can be EXW,FOB,CIF,CNF,FCA,CPT, CIP
5. how many countries exported this machinery.
Answer:Russia,Kazakhastan,Uzbekistan,Monglia,Iran,Iraq,Poland,Pakistan,India,Nepal,Bangladesh,Vietnam,Malaysia,Egypt,Argentina,SouthAfrica,Libya,Burundi,Uganda,Sudan,Venezuela, Colombia,Peru, Brazil, Center Africa, Mozambique, Bolivia, Turkmenistan, Romania
Brictec warmly welcome your inquiry
