Home > Products > Rubber Conveyor Belt > fire resistant steel cord conveyor belt
fire resistant steel cord conveyor belt
- 50000 Meter / Meters per Month
- Qingdao
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | China | Brand Name: | HYRUBBERS | Model Number: | Rubber Conveyor Belt |
Product Description
Fier-resistant steel cord conveyor belt has the merits of conveying materrials at the occasion of high strength,long distance,and large load as common steel cord conveyor belt.however,it also has the properties of filre-resistant and anti-static,and it is suitable for Fire resistant and anti-explosion applications, especially suitable for conveying materials under coalmine wells.
HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.
The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.
The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.
Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.
Cover property and grade:
Tensile strdngth: >=15Mpa
Elongation at break: >=350%
Aging tset(70oCx168h)
Change rate of tensile strength: -25~+25%
Change rate of elongation at break: -25~+25%
Abrasion <=200mm3
Safety property:
ltems | Indexes | ||
Anti-sttatic property | Average electrical resistance of both surfaces | <=3x108Ω | |
Drum friction | Surface temperature of drum. | <=325oC | |
Any test pice shall not show any sign of flame or glow | |||
Buming on spirit bumer (flame or glow) | Burning with cover rubber | Average duration of lame for six test pieses | <=3 S |
Duration of flame for any individual tset piece | <=10 S | ||
BURNING WITHOUT COVER REBBER | Average duration of flame for six test piece | <=5 S | |
Duration of flame for any individual tset piece | <=15 S | ||
Buming on propane bumer | Ength that is compleetleey undamaged by flame .mm | >=250 mm |
Other technical indexes will follow specification MT668-1997
Features:
1. High tensile strength: Steel cord conveyor belt is suitable for large span, long distance transportation of materials.
2. Small elongation in use: It need only a very short take-up stroke distance.

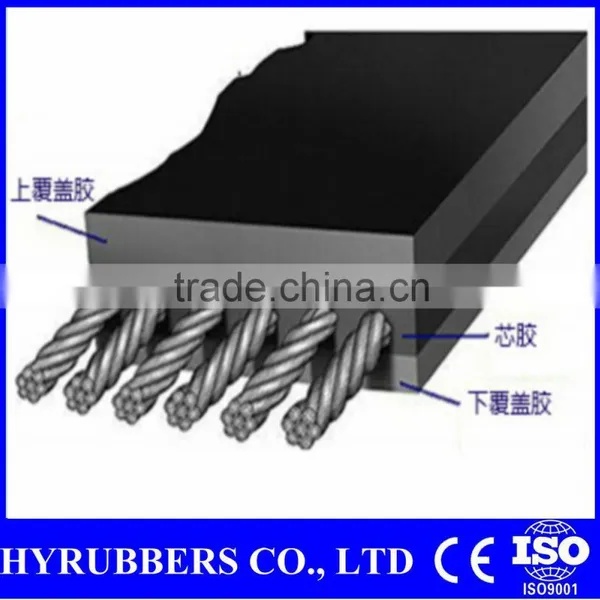

3. Small diameter of drive pulley: Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its carcass, and thus is resistant to flex fatigue. Therefore, drive pulley of smaller diameter can be used to make the equipment smaller.

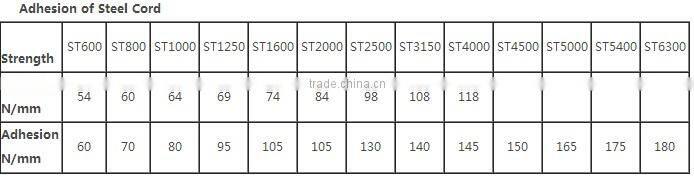

4. High adhesion between rubber and steel cord: The steel cords are coated with zinc on their surface,and also the rubber used has the property of good adhesion with steel cords. Therefore, the rubber is tightly adhered to the steel cords and is resistant to shock and difficult to drop,so the rubber belts are long in life.
5. Even tension of steel cords:Out of our advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run away.
6. Good troughability: As the belt body has no transverse skeleton, it is easy to from a deep trough,so the belts can load more materials and prevent the materials from escaping.
7. Inspection of the belt with X-rays: Users can X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.
Cover Compounds: General, Fire-resistant, Cold-resistant, Abrasion-resistant, Heat-resistant and Chemical-resistant.
Standards offered: GB/T9770, DIN22131, EN ISO 15236, BS490, JIS, SANS1366 and AS1333.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
