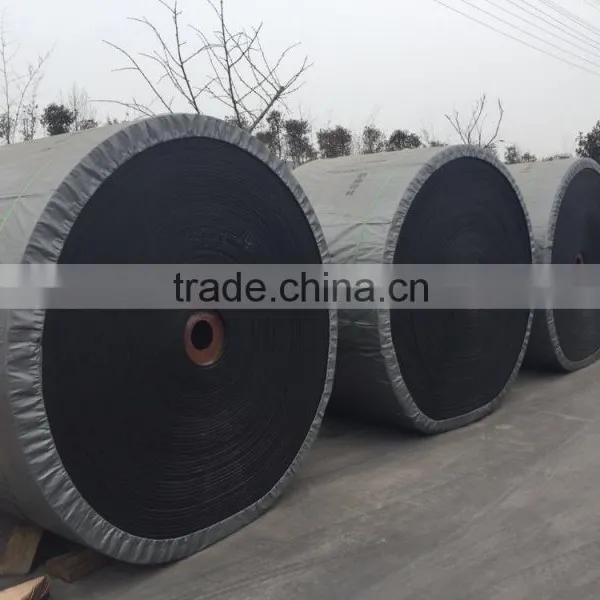

Nylon is the best in the composite fibers used in the rubber industry, is of a structure braided by nylon fibers in warp and weft, and has the widest application, with outstanding advantages of excellent wear resistance, high strength and good fatigue resistance. The conveyor belt made from nylon canvas is featured by thin belt body, high strength, impact resistance, good trough formation property, large bonding force among layers, excellent flexibility and long service life, is suitable for conveying materials in medium and long distance and high transmission capacity at a high speed, and is widely applicable to such departments as mines, metallurgy, construction, ports and the like.
Specification and Technical Parameter of Nylon Multi-layer Fabric Core Conveyor Belt
| Fabric Type | Fabric Texture | Fabric Model |
Rubber Fabric Thickness (mm/p) |
Strength Series | Thickness of Cover Rubber (mm) |
Width Range (mm) |
Belt Length (m) |
||||||
| Warp | Weft | 2 Layer | 3 Layer | 4 Layer | 5 Layer | 6 Layer | Upper Cover Rubber | Lower Cover Rubber | |||||
| Nylon |
Polyamide (N) |
Polyamide (N) |
NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5~8 | 0~4.5 | 400~1800 | ≤300 |
| NN-150 | 0.8 | 300 | 450 | 600 | 7500 | 900 | |||||||
| NN-200 | 0.9 |
400 | 600 | 800 | 1000 | 1200 | 500~1800 | ||||||
| NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| NN-300 | 1.25 | 900 | 1200 | 1500 | 1800 | ||||||||
| NN-400 | 1.45 | 1600 | 2000 | 2400 | 800~1800 | ||||||||
| NN-500 | 1.55 | 2000 | 2500 | 3000 | |||||||||
Classification of Cover Layer Property of Rubber Belt Based on Table as follows
| Cover Layer Class | Tensile Strength≥ | Elongation at Break≥ | Wear Loss≤ | Change Rate of Tensile Strength and Elongation at Break after Aging | |
| MPa | kgf/cm² | % | cm³/1.61km | % | |
| Heavy Type(H) | 18 | 180 | 400 | 0.7 | -25~+25 |
| Common Type(M) | 14 | 140 | 350 | 0.8 | -25~+25 |
| Light Type(L) | 10 | 100 | 300 | 1.0 | -30~+30 |
Bonding Strength and Elongation Property Table
| Belt Core Material | Bonding Strength | Elongation | |||
| Between Fabric Layers(N/mm) | Between Cover Layer and Fabric Layer |
Longitudinal Elongation at Break through Thickness %≥ |
Longitudinal Reference Force Elongation through Thickness %≤ |
||
| Thickness of Cover Layer≤1.5mm | Elongation Property>1.5mm | ||||
| Nylon Canvas | ≥4.50 | ≥3.15 | ≥3.50 | 10 | 2.0 |

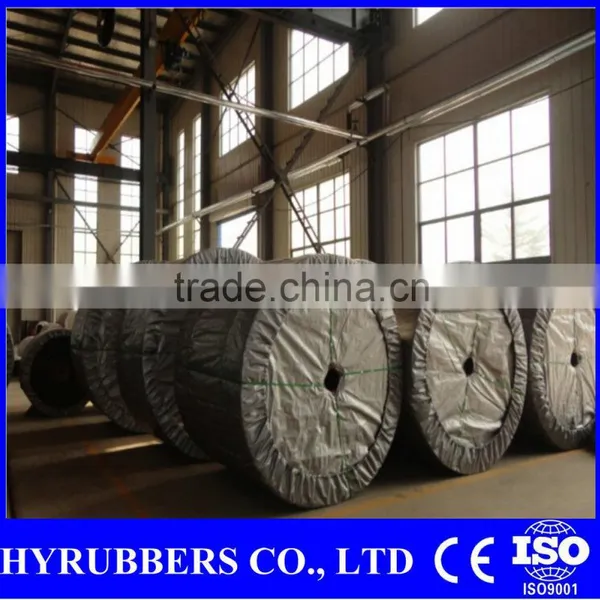

HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.
The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.
The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.
Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.
Accordance with different applications, we can produce different grades of belt as following:
1) Heat Resistant Belt
According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.
2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt
Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.
3) Oil Resistant Belt
Generally used for wood, papermaking, oil-based grain transportation.
4) Acid/Alkali Resistant Belt
Always used in Chemical materials transportation.
5) Cold Resistant Belt
The belt can work in some cold environment, like Northeast of China, Russia and North European countries.
6) Fire Resistant Belt
Always used in underground coal mining, steel works and so on.
7) conventional Belt
Generally used for small powder, grain and block materials.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
1) Can the factroy supply the sample?
Yes, the sample can be provided free in one week.
2) The delivery date?
Normally, the delivery date is 20~30 days.
3) Any quality control?
We have SGS Certificaiton, ISO9000 Certification, and QC system to test and control the quality.
4) Warranty
There's a six-month warranty for our products.
Product name: Fabric Conveyor Belt
HYRUBBERS CO.,LTD
Add: No.237 Wannianquan Road,Qingdao city,China
Tel: 0086-532-66089289
Fax:0086-532-66089289
Skype 1:hyrubbersbelt
Skype 2:hdyelina
Website:
