Help CenterFlame Retardant Conveyor Belt of Textile Constuction Made in China
Related Products
-
Pvc PvgSolid Woven Conveyor BeltUS$ 5 - 50MOQ: 10 Meters -
Cotton Polyster Cotton Conveyor Belt GoogleUS$ 5 - 50MOQ: 60 Meters
-
Nylon Conveyor Belt China Supplier ChinaUS$ 5 - 30MOQ: 50 Meters
-
Made in China Polyester Conveyor Belt China SupplierUS$ 5 - 50MOQ: 100 Meters
-
Fire Resistant Steel Cord Conveyor BeltUS$ 5 - 100MOQ: 100 Meters

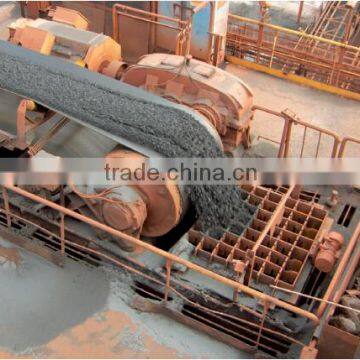

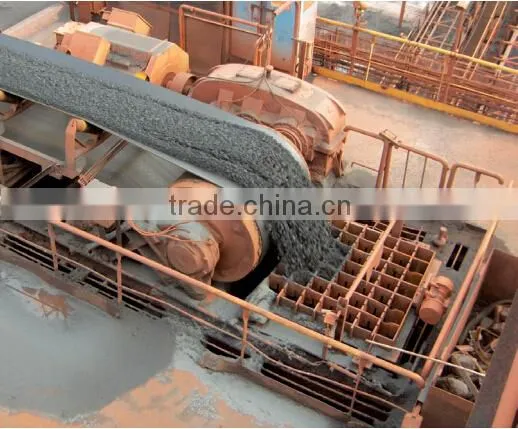

The product is made of cotton canvas,nylon canvas or EP canvas and finshed through the processes of calendering,assembling ,vulcanizing and etc,it is suitable for conveying various non-corrosive and thornless materials in blocks,in grains,or in powder,such as coal in bulk or in bales,under the condition of flammable or explosive environment above coalmine wells.
Cover rubber property:
| ltem | ClassL | ClassD |
Tensile strength MPa |
>= 14 | >= 18 |
Elongation at break % |
>= 400 | >= 450 |
Safety property:
| ltem | flame retardant grades | |
| K2 | K3 | |
| duration | The total duration of flame of 6 test pieces with covers is less than 45S,any individual test piece does not exceed 15 S |
Average value of duration of flame of 3 test pieces with covers does not exceed 60S |
| anti-static property | <=3 x 108Ω | |
| reapperance | There should be no reapperance of flame on any test piect |
|
packaging:packed in rolls and covered by fabric water-proof cloth,or clients' requirement also be respected
shipping:within 10-20 days,or depends on the quantity
HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.
The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.
The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.
Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.
Specification and technical data of multi-ply polyester conveyor belt:
| Fabric type | Fabric stucture |
Fabric specs |
Ply thickness (mm/P) | Strength series(N/mm) |
Cover thickness (mm) |
Width mm |
Length m |
||||||
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper |
Lower | |||||
Polyester |
Polyester |
polyeater (EP) |
EP-80 | 0.80 | 160 | 240 | 320 | 400 | 480 | 2.0~8 | 0~4.5 | 400~500 | <=300 |
| EP-100 | 0.80 | 200 | 300 | 400 | 500 | 600 | |||||||
| EP-125 | 0.85 | 250 | 375 | 500 | 625 | 750 | |||||||
| EP-150 | 0.90 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-160 | 0.90 | 320 | 480 | 640 | 800 | 960 | 500~2500 | ||||||
| EP-200 | 1.05 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1.50 | - | 1050 | 1400 | 1750 | 2100 | 600~2500 | ||||||
| EP-400 | 1.80 | - | - | 1600 | 2000 | 2400 | 600~2500 | ||||||
| EP-500 | 2.00 | - | - | 2000 | 2500 | 3000 | |||||||
Adhesion and elongation of the belt:
|
Belt carcass |
Adhesive strength |
Elongation |
|||
|
Between plies N/mm |
N/mm Between ruber and carcass |
Longitudinal %>= |
Longitudinal elongationa at reference load %<= |
||
Rubber thickness |
Rubber thickness |
||||
EP canvas |
>=4.50 |
>= 3.20 |
>=3.50 |
10 |
4.0 |
Cover properties of the belts:
Cover grade |
Tensile strength |
Elongation |
Abrasion |
Change Rate of tensile strength and elongation after aging |
|
Mpa |
kgf/cm2 |
% |
mm3 |
% |
|
Heavy(H) |
24 |
240 |
450 |
120 |
-25~+25 |
Medium(M) |
18 |
180 |
400 |
100 |
-25~+25 |
Light(L) |
15 |
150 |
350 |
200 |
-30~+30 |
Accordance with different applications, we can produce different grades of belt as following:
1) Heat Resistant Belt
According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.
2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt
Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.
3) Oil Resistant Belt
Generally used for wood, papermaking, oil-based grain transportation.
4) Acid/Alkali Resistant Belt
Always used in Chemical materials transportation.
5) Cold Resistant Belt
The belt can work in some cold environment, like Northeast of China, Russia and North European countries.
6) Fire Resistant Belt
Always used in underground coal mining, steel works and so on.
7) conventional Belt
Generally used for small powder, grain and block materials.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
Product name: Fabric Conveyor Belt
HYRUBBERS CO.,LTD
Add: No.237 Wannianquan Road,Qingdao city,China
Tel: 0086-532-66089289
Fax:0086-532-66089289
Skype 1:hyrubbersbelt
Skype 2:hdyelina
Website:
