Help CenterPipe Convyor Belt Factory Price Polyester Cotton Fabric Pipe
Related Products
-
Cold Resistant Conveyor Belt Business IndustrialUS$ 5 - 100MOQ: 100 Meters -
Oil Resistant Conveyor Belt Latest TechnologyUS$ 5 - 100MOQ: 100 Meters
-
Chemical Resistant Conveyor Belt China SupplierUS$ 5 - 50MOQ: 100 Meters
-
Heat Resistant High Temperature Resistant Conveyor BeltUS$ 5 - 100MOQ: 100 Meters
-
Flame Retardant Conveyor Belt of Textile Constuction Made in ChinaUS$ 5 - 50MOQ: 100 Meters

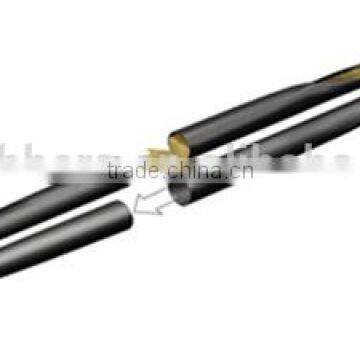

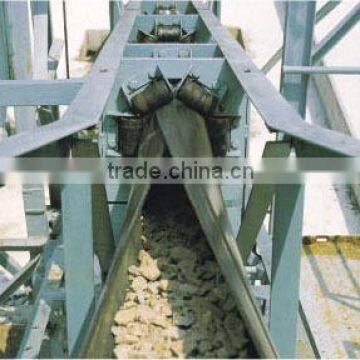

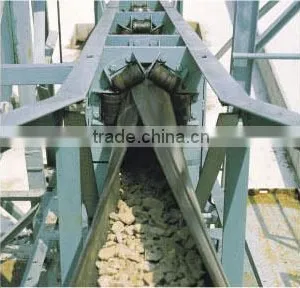

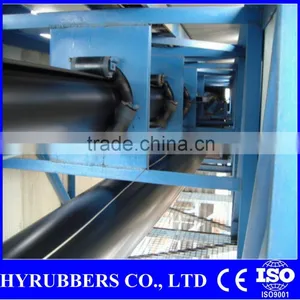

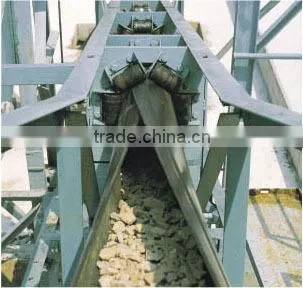

Pipe conveyor belt is new type of conveying belt which uses belt carcasses(Fabric,Steel cord and etc.)as skeleton,high elastic, high anti-abrasive and high strength rubber as working surface.They are mainly used in conveying powdery and granular materials and etc.that are pollutive to the environment. When working,the rubber belt changes its form from flat to U shape and finally to pipe shape,folding the materials and realizing the process of enclosed coneying.
Main characteristics of the belt:
1.Enclosed conveying of materials,prtecting both the materials and the environment.
2.Steep angled conveying,the conveying angle can reach 30 degrees usually.
3.Conveyin line can be arranged according to the curve of space.

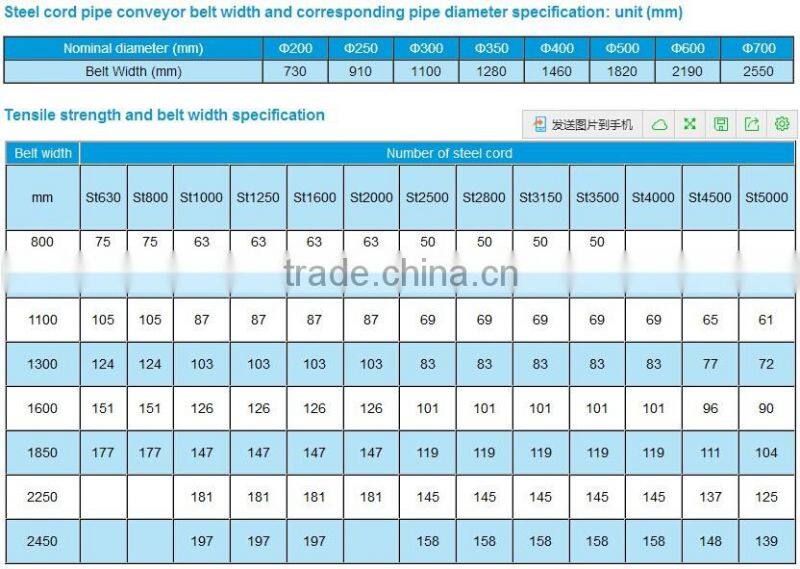

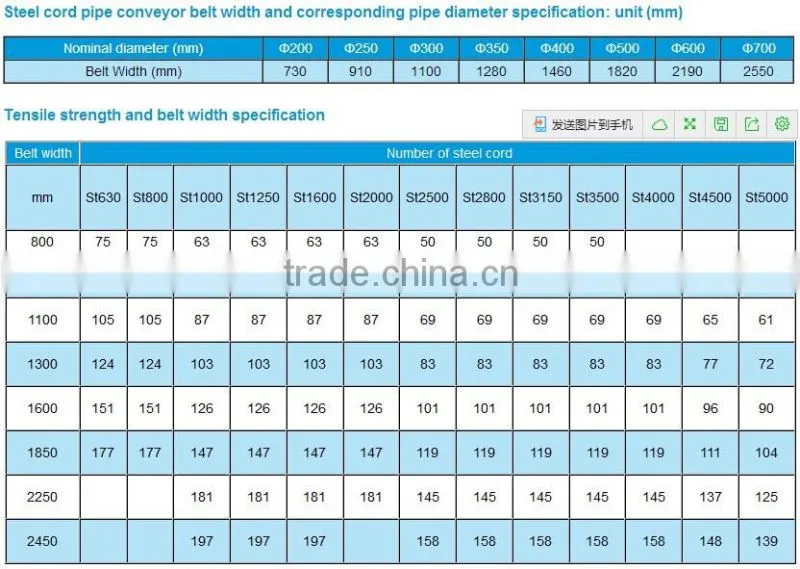

Technical data for pipe conveyor belt:
| pipe dia.(mm) | belt width(mm) | breaking strength(N/mm) | fabric plies | cover rubber thickness(mm) |
| 100 | 430 | 250 | 1 | 3.0 x 1.5 |
| 150 | 600 | 160 | 2 | 3.0 x 2.0 |
| 315 | 2 | 3.0 x 2.0 | ||
| 200 | 700 | 315 | 2 | 3.0 x 2.0 |
| 500 | 2 | 3.0 x 2.0 | ||
| 315 | 2 | 5.0 x 2.0 | ||
| 500 | 2 | 5.0 x 2.0 | ||
| 250 | 1000 | 400 | 2 | 3.0 x 2.0 |
| 500 | 2 | 3.0 x 2.0 | ||
| 400 | 2 | 5.0 x 2.0 | ||
| 500 | 2 | 5.0 x 2.0 | ||
| 300 | 1100 | 400 | 2 | 3.0 x 2.0 |
| 500 | 2 | 3.0 x 2.0 | ||
| 400 | 2 | 5.0 x 2.0 | ||
| 500 | 2 | 5.0 x 2.0 | ||
| 350 | 1300 | 630 | 3 | 5.0 x 2.0 |
| 800 | 4 | 5.0 x 2.0 | ||
| 400 | 1600 | 800 | 4 | 5.0 x 2.0 |
| 1000 | 5 | 5.0 x 2.0 |
Application

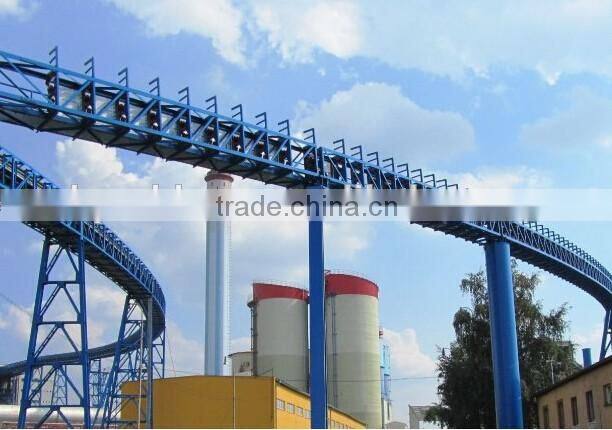

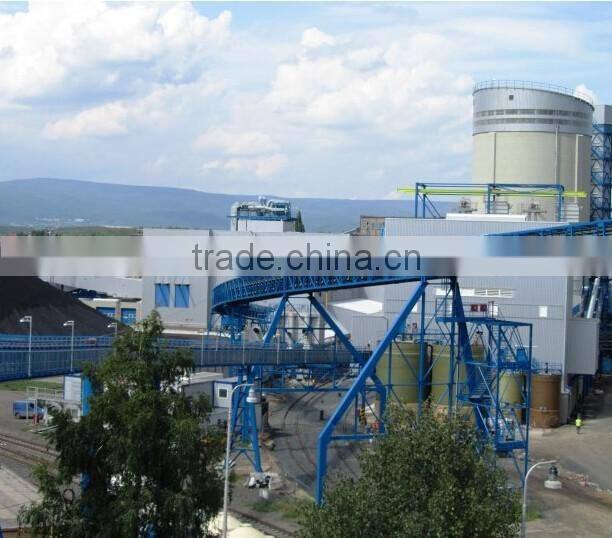

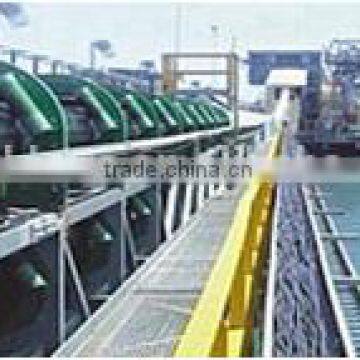

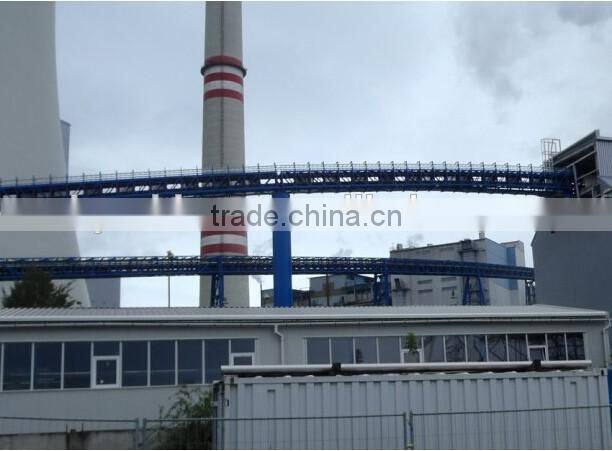

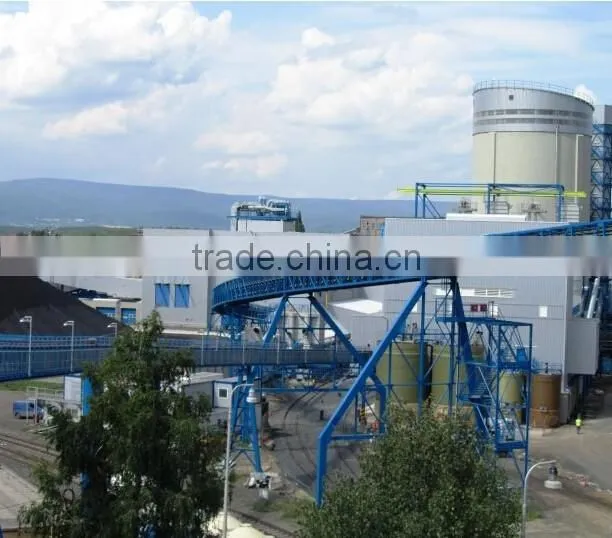

Used in pipe conveyor for material conveying, widely used in mining, metallurgy, power, building material, chemical industry and harbour for material conveying .

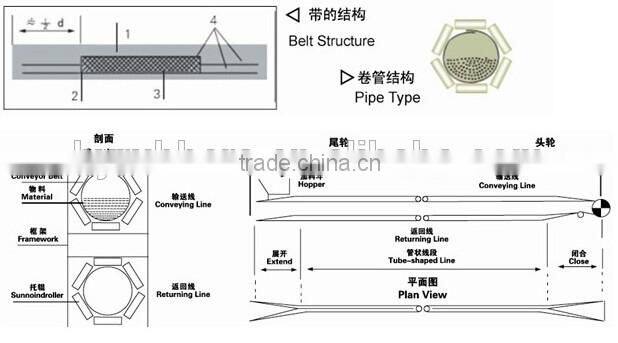

Structure
1.Top Rubber Cover
2.Middle Rubber
3. Bottom Rubber Cover
4.Carcass
Feature
1.Suitable rigidity,flexibility,be keeping stable circle.
2.Good sealing at connection point, fatigue resistant, abrasion resistant,stable conveying.
3.Close conveying, no spillage, no dust.
4.Bending, steep angle, reverse conveying.
Why you choose us?
1.Super high quality.
2.Competitive price.

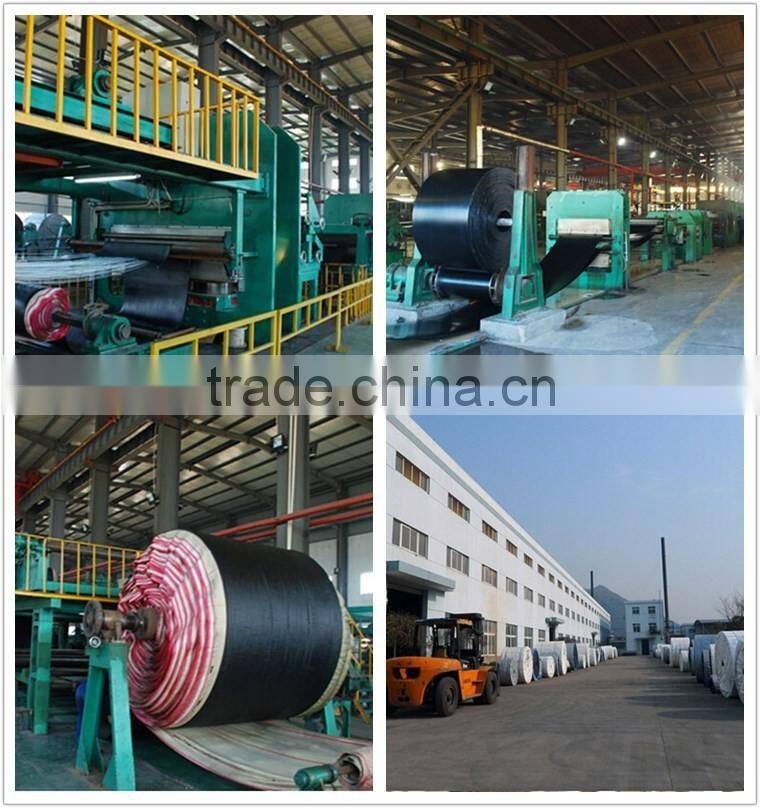

3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
