Chemical conveyor belt is a kind of traditional rubber belt, which is constructed by fabrics and covered with top and bottom rubber. It is reliable to transportation for short and medium distance, it is flexible, heavy duty and high speed.
Product characteristics:
Because the belt core selects cotton-duck,nylon-duck or EP-duck, the belt has good elasticity,excellent troughability,and low elongation.The rubber cover,which is made from chemical resistant materials,has fine anti-chemical corrosiveness and good physical properties.
Uses:

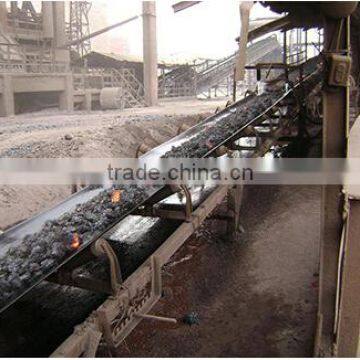

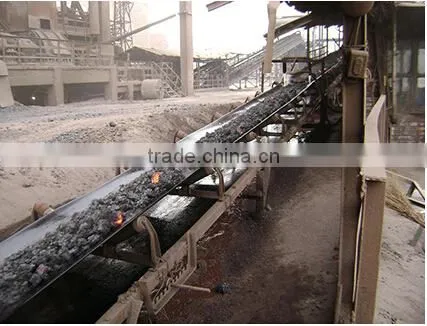

It is suitable for conveying materials with chemical corrosiveness in chemical factory ,chemical fertilizer factory,paper mill ,mining industry and etc.
Technical indexes:
Items |
Tensile strength MPa |
Elongation at break % |
Abrasion mm3 |
Hardness shore A° |
Ozone deterioration |
||
C |
physical property | before aging | >=14.0 | >=400 | <=250 | 55-70 | no cracks |
| after aging | >=12.0 | >=340 | - |
60-75 | - | ||
| acid and alkali resistance | class | soak liquid | Density |
soak conditions oC x96h |
change rate before and after aging | ||
| swelling rate | change rate of tensile strength | ||||||
| A1 | HCL | 18% | 50oC x96h | <+10% | <-10% | ||
| A2 | H2SO4 | 50% | 50oC x96h | <+10% | <-10% | ||
| A3 | NaOH | 48% | 50oC x96h | <+10% | <-10% | ||
packaging:packed in rolls and covered by fabric water-proof cloth,or clients' requirement also be respected
shipping:within 10-20 days,or depends on the quantity
HYRUBBERS CO.,LTD is specializing In manufacturing, exporting and developing conveyor belt, in the same time rubber sheet, rubber tiles and so on.

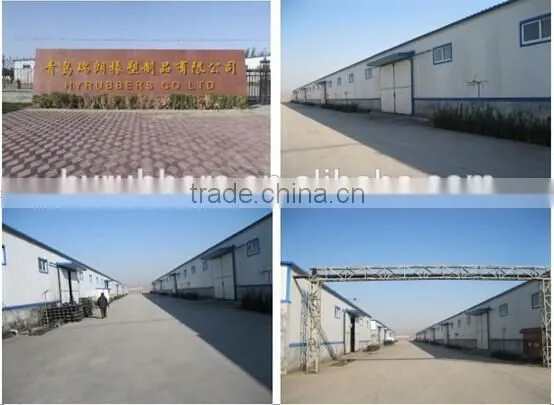

The factory founded has 260 people including 220 workers, and 15 engineers and technicians, 25international sales workers, covering an area of 50000 m2, owing 220 sets of main production equipment.
The ISO9001: 2000 certified factory has established a stable and reliable quality control system with a modem management.
Now with the export quantity larger and larger, we become one of the biggest manufacture in North of China.
Types:
Accordance with different carcass used in fabric belt, we can supply CC belt,Nylon belt, EP belt.
CC Conveyor belt available for the materials handling of medium distance.
NN conveyor belt has the advantage of flexible, high tension, impact resistant characteristics, available for the conveying materials of medium distance.
EP conveyor belt has the advantage of low elongation, excellent heat resistant, impact resistant, available for the materials handing of heavy duty, high speed and medium distance.
Accordance with different applications, we can produce different grades of belt as following:
1) Heat Resistant Belt
According to the temperature of working environments, we can manufacture 3 different grades heating resistant belt, including up to 120℃ grade (HR120), up to 150℃ grade (HR150), up to 180℃ grade (HR180) and up to 200℃ grade (HR200) .Generally used by cements and steel works.
2) Abrasion Resistant (≤90mm3) / super abrasion resistant (≤60mm3) Belt
Generally used for transport the hard or shaped materials, like iron ore, diamond, copper and other minerals.
3) Oil Resistant Belt
Generally used for wood, papermaking, oil-based grain transportation.
4) Acid/Alkali Resistant Belt
Always used in Chemical materials transportation.
5) Cold Resistant Belt
The belt can work in some cold environment, like Northeast of China, Russia and North European countries.
6) Fire Resistant Belt
Always used in underground coal mining, steel works and so on.
7) conventional Belt
Generally used for small powder, grain and block materials.
Why you choose us?
1.Super high quality.
2.Competitive price.
3.Good producing equipment and technology.
4.Large production ability.
5.Prompt delivery.
6.Small order accepted.
7.Excelent sale and after-sale service.
8.OEM available.
Is the product sample available?
Yes,all product samples are available for you to test the quality.
Is OEM available?
Yes,OEM is available.We have professional designer to help your brand promotion.
Are the products tested before shipping?
Yes,all of our products were qualified before leave the factory,we test every batch every day.
Delivery details?
Within 10-20 days in general or depends on quality of the order.
Packaging details?
Packed in rolls and covered by nylon water proof cloth.Clients' requirement are also respected.
What's the quality guarantee?
We have totally quality guarantee to customers,we will be responsible for any quality problems.
Product name: Fabric Conveyor Belt
