Product Details
Place of Origin: | Anhui, China | Brand Name: | HB | Model Number: | HB-RD041 |
Power Supply: | AC | Application: | Highway | Lampshade Material: | Toughened Glass |
Product Description
HB 40-150W low frequency induction lamp high bay induction lamp
HB induction energy saving light -Technical specification
1.The main frequency output is 210KHZ
2. Power frequency is 50/60HZ
3. Passed the standard of EMC Eectromagnetic Radiation test and EMI Conduction Test
4.Passed one million times switch on-off test
5.The distance between ballast and tube should be less than 10meters
6.With the standard of GB19510.4-2009,GB19510.1-2009,GB17743-2007,GB17625.1-2003and GB/T15144-2009,QB/T2871-2007
7. Wide Voltage,overcurrent and overvoltage protection;
8. Ten years manufacture demand and theoretical design
9.Provide five years quality warranty
Working environment temperature: -35°C-70°C
Working voltage range: 1, DC 12V 24V 36V voltage range is +-25%
2, AC 120V 220V 277V 347V 480V voltage range:+-15%
LIGHT SOURCE SPECIFICATION
Power | voltage | power factor | LM | PLM | Ballast size | tube size |
40W | 100-300V | >0.98 | 2800 | 3900-4600 | 175*70*50mm | 180*115*97mm |
50W | 100-300V | >0.98 | 3500 | 4800-5800 | 175*70*50mm | 180*115*97mm |
60W | 100-300V | >0.98 | 4500 | 5800-6900 | 175*70*50mm | 180*115*97mm |
80W | 100-300V | >0.98 | 6400 | 9600-11100 | 175*70*50mm | 290*240*105mm |
100W | 100-300V | >0.98 | 8000 | 12000-14000 | 175*70*50mm | 290*240*105mm |
120W | 100-300V | >0.98 | 9600 | 15500-18000 | 175*103*50mm | 368*143*100mm |
150W | 100-300V | >0.98 | 12000 | 19500-22000 | 175*103*50mm | 365*140*100mm |
LIGHT FIXTURE
Type: HB-RD041
Category: Street Light

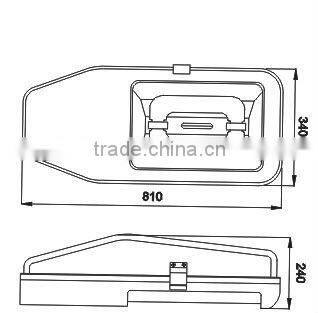

Size: 810x340x240mm
packing size:820*350*250mm
Lamp source: HB Induction Lamp(Rectangle)
Power: 40-150W IP grade: IP65
Material: Upper and lower parts are made by high pressure aluminum die-casting , High-purity aluminum reflecto
Applicable Places: City Side Roads,Branch Road,Parking Lot,Commercial Blocks,Plaza, etc.
Personal service: Can be Equipped with photocell.
.
Feature
1,High pressure aluminum die-casting body, fashionable shapes which are suitable for a variety of occasions.
2,High intensity, high temperature resistant tempered glass.
3,Reflector made of high-purity anodized aluminum which provides excellent reflection effect and optical properties.
4,Electrostatic spray surface.
5,Can be Equipped with photocell.
6,Can match with our JR Rectangular Induction Lamp, with its excellent Color Rendering Index,light efficiency,long lifespan,no flicker and energy-saving,wide range of color temperature,soft light and stable light output.
