HB 24W-400W price UL induction light

Specifications

HB 24W-400W price UL induction light

Features of newest product:

1. Wide voltage range design(100-300V): 40-400W all series wide voltage range design (100-300V), which     entirely meet the requirements using in 100V, 120V, 220V, 240V, 277V grid.

2. Designed according to electromagnetic compatible circuit standard: EMC meet GB17625, EN55015 standard.

3. Outdoor special protect function: Add the thunder and anti-surge current function; Insulation Paint process is used on electronic ballasts, which can dampproof, dustproof, anti-oxidation to ensure the lifetime of the outdoor products.

4. Protect function under the abnormal condition (open circuit, electric leakage, short circuit): No high voltage, heavy current, high-power appear during the protect process, improve the product stability, which ensure that the ballast won’t be damaged if the tube load is under any abnormal conditions.

5. Smart sweep frequency start:: Ensure every lights can be lighted up while they are used on a large scale. Avoid the circumstance that the light cannot work normally because of bad environment or voltage instability.

6. High quality import electronic device and IC design: Good stability, good warranty of product lifetime. For example, The United States stmicroelectronics Co.,Ltd FET. The U.S. IR chip companies, electrolytic capacitor Nichicon Corporation of Japan, Taiwan thick sound resistance, capacitance Singapore, etc.

7. High power factor: The power factor of AC external induction lamps 23-400W is 0.98, input current is the smallest under equal power.

8. Mature and reliable various dimming function: fission 23-400W AC and 23-100W DC lamps have reliable dimming function, which is suitable for various smart dimming control system.

1) Three kinds of dimming ways: With DC 0-10V linear dimming, three-wire control dimming, interior timing auto dimming.

2) Dimming function can run well under any power, and the performance is also good.

3) With DC 0-10V linear dimming function, the dimming range is 30%-100%.

   Three-wire dimming range is 30%, 40%, 70%, 100%.

   Interior timing auto dimming range is 30% ( Or any power stage in 30%-100%), 100% two stages, which is exchanged by interior timing controller.

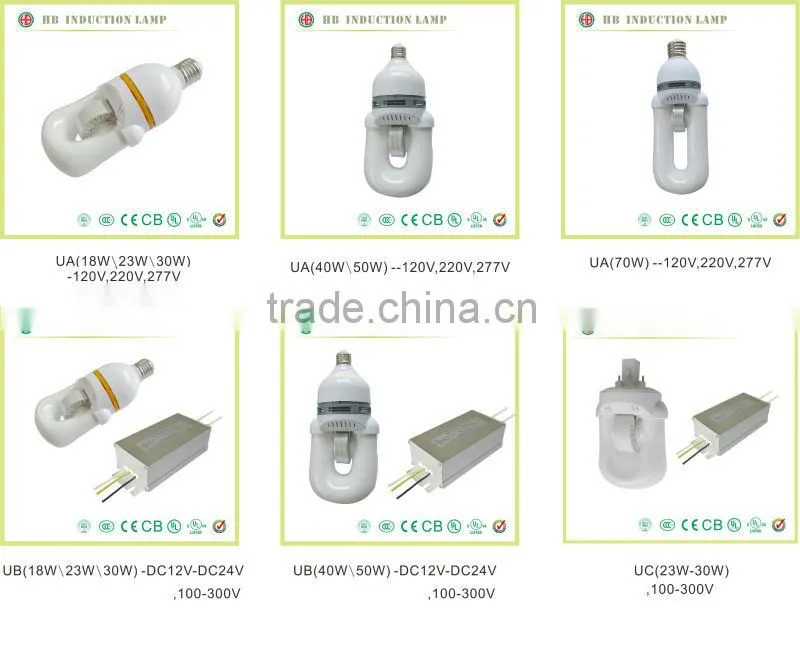

1.U serirs(U)

   Product details- induction lamp Tube

  (120V 220V 277V  100-300V  DC12V DC24V)

2.Mushroom series(M)

                MB(405060W)                           MA(40506080W)

Product details- induction lamp Tube

(120V,220v,277V)

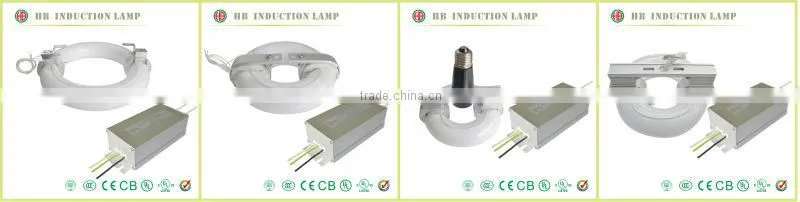

3.Round series(R)

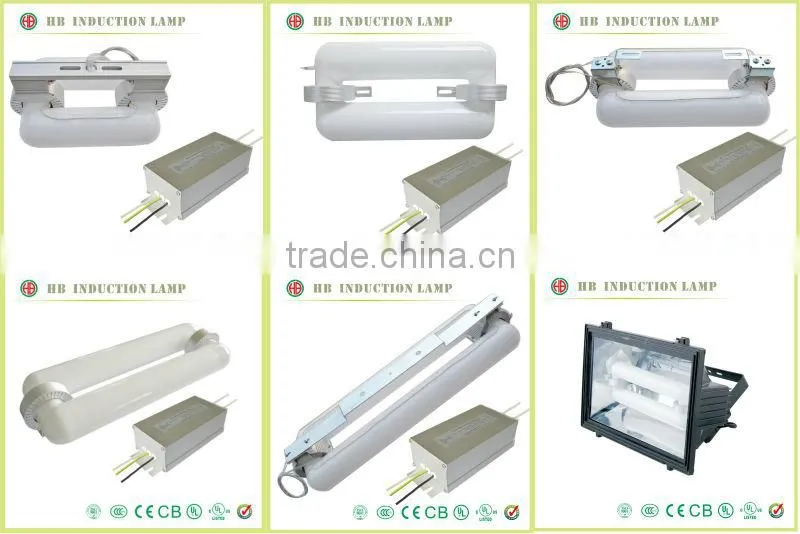

4.Square series(S)

S-type tube

 Ballast

   We have UL, CUL, CCC, CE, CB, RoHS and ISO9001 certificates and more than 20 patents. The UL certificate has included 23-400W.
HB induction lamp warranty is 5 years and maintenance free. And our company mainly products as follow: 18-70W U-type , 40-80W M-type, 40-400W Round-type, 40-400W Square type; 18-400W AC100-300V , DC12V, DC24V electronic ballast and 40-400W DC or AC dimming electronic ballast. They are the most comprehensive and competitive in China at present.
Our company founder Mr Wang Baotong is the owner of the first patent about induction lamps ( electrodeless induction lamps, patent number is ZL03231861) and he is one of the drafters of Chinese Light Industry standard  ( Single-ended electrodeless fluorescent lamp with electronic ballast of alternating current ) (QB/T2871-2007).

Description of products

1.. Provide five years quality warranty

2.  Delivery time is 15-25 workdays after downpayment

3. Packing:tube: foam and plywood   ballast: foam and carton

4. Payment:L/C,T/T, Western Union,Alipay



Our Factory and workshop

CERTIFICATE
