Specifications

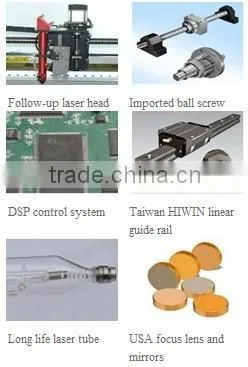

3D Laser Cutting Machine:1.USA focal lens and reflector mirrors
2.Imported Focus Lens and Mirrors
3.CE,FDA,SGS
Gaurantee and after sale service:
Gurantee the whole machine for 2 YEARS and laser tube for 3 months, offer lifelong repair, laser tube’s average life is 4000-10000 working hours(depends on the laser power) Offer 24 - hour technical support.
Applicable industry:
Applied to such industries as sheet metal processing, automobile products,
furniture, , packing&printing, molding and artifacts ,Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
Materials such as Available for 3D or rolling materials ,acrylc, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, etc.
Hot Sale!Jinan Bodor BCL-X3D laser cutting machine
BCL-X3D is Bodor’s first machine to gain national patent.It can engrave and cut according to the height of the material.

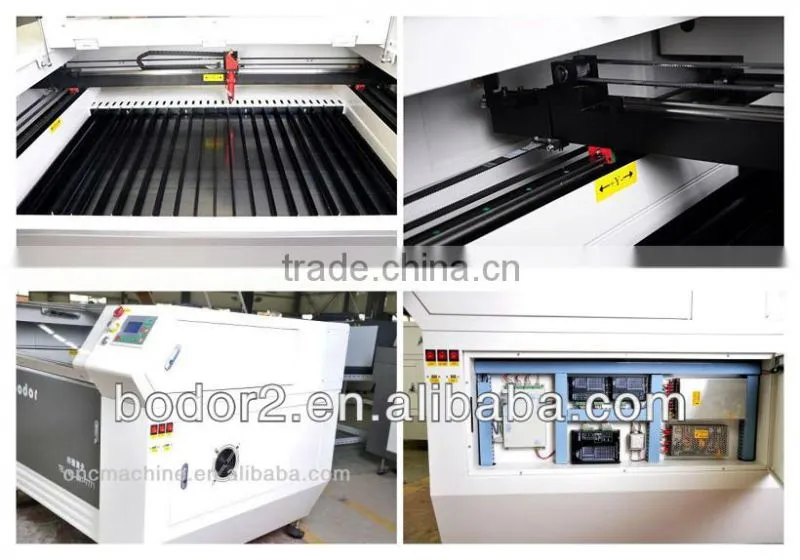

Machine Details

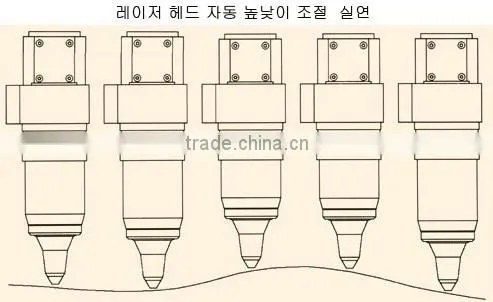

2,The machine with height-adjusted laser head and height sensing device can sense the height change of the working material.Also it can adjust the height of laser head immediately according to ups and downs of the material.It perfectly adjust to engrave and cut 3D materials.
3,The laser head servo system adopts screw transmission with high accuracy, can process objects undulating height within 60mm (heigh can be customized t).
4, Processing a wide range of materials, any material can be processed.
5, Optional up&down platform, can process objects height of 400 mm (height can be customized)
| Model | BCL1309X3D | BCL1610X3D | Option |
| Working Area | 1200*900mm | 1500*1000mm | According to Demands |
| Laser head up&down height | 60 mm (customizable) | ||
| Laser Power | 60w/80w / 100w / 130w / 150w/ 300w | ||
| Laser Type | CO2 Sealed Laser Tube,10.6μm | ||
| Cooling Type | Water Cooling | ||
| Cutting Speed | 0—20000mm/min | ||
| Laser Output Control | 0—100% Software Setting | ||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | ||
| Highest Scanning Precision | 4000DPI | ||
| Locating Precision | ≤+0.01mm | ||
| Controlling Software | DSP Control System | ||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | ||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All type of AUTOCAD Sofeware in Cloth | ||
| Color Separation | Yes | ||
| Drive System | High-precision 3-phase Stepper Motor | ||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | ||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | ||
| Option | Up&Down table(Length:500mm),Honeycomb Worktable,Rotary Device Red Dot Position System,Auto-focus Device | ||
QC example
1.Laser tube test
Every laser tube and power supply will be adjusted for continual 8 hours(electrify every 7 seconds); "power test equipment" test power consumption and get real output power and laser jet distance.
Picture 1 and 2: use "power meter" get laser tube's power in tested current: make the light sensation piece in middle to aim at output entrence of laser tube, also put it 20mm from output entrence, make current to test current situation, then you can see the number on power meter display screen, when it is stable, it is real power of laser tube. Meantime, you can test the light spot effect with it.
Not qualified laser tube will be returned to our supplier!
2.laser head, control panel and power supply adjustment
All laser head, control panel and power supply will be aging test, to test its stablity and function, so as to ensure all of them are best-to-use before into storage.
3.Square guide rail test
Test point: check square guide rail flatness, straightness; test size and pitch-row according to design; Put the square guide rail on marble, check whether it is curve, ensuring the error is < 0.1mm.
4.Synchronizing wheel test
Test point: check synchronizing wheel's flexisiblity, check whether it is the same step and uniform with bearing.
5.Laser tube holder, bearing holder, transmission band and strutting piece
Test point: mild, internal precision and durability
6.Test screw, plastic tube and other hardware
Test point: refer to standard if the parts can be tested precisely; if the parts can not be tested precisly, we will compare them with standard sample, compare every hardware's standard to ensure every parts has their own precise specification.
7.Whole machine adjustment and test
Before delivery, the machine will be adjusted and test by 3 departments, during which quality department will set parameter, adjust parts and then cut/engrave/mark sample materials.
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Applicable Materials:
Materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease,ABS board, lamp shade, etc.
Gaurantee and after sale service:
Gurantee the whole machine for one year and laser tube for 3 months; offer lifelong repair; laser tube’s average life is 4000-8000 working hours(depends on the laser power); Offer 24 - hour technical support.
Sample of Laser Engraving Cutting Machine
