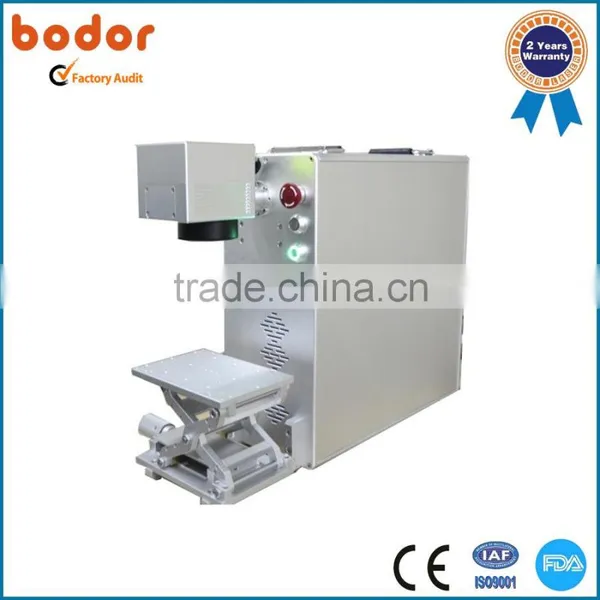

Fiber Laser Marker CE, SGS, FDA

Fiber Laser Marker CE, SGS, FDA thumbnail-1
Fiber Laser Marker CE, SGS, FDA photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Engraving Area:
100*100mm/200*200mm/300*300mm
Contact Supplier Request Quote Chat Now
Jinan Bodor CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Guangzhou Ningbo Qingdao Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type Fiber Laser
Engraving Area 100*100mm/200*200mm/300*300mm
Engraving Speed ≤7000mm/s
CNC or Not Yes
Cooling Mode Air Cooling
Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, LAS
Place of Origin Shandong, China
Brand Name Bodor
Model Number BML-FP(S)/FH(S)/F(S)
Certification CE, SGS, Other, CE, SGS, FDA
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. 2-years warranty
2. For marking metals and non-metal
3. Working area:100*100mm/200*200mm/300*300mm
4. Colorful marking





Fiber Laser Marking Machine



    Application of advanced fiber module, high quality output beam, suitable for delicate marking, can control size, depth, and shape accurately. Small size and fast processing speed, low energy consumption, long service life, can engrave all kinds of metal and nonmetal materials.





Fiber laser marker CE, SGS, FDA      Fiber laser marker CE, SGS, FDA




            BML-FP(S)                                      BML-FH(S)                                  BML-F(S)




Main Features

1. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
2. High pulse repeating rate and stable power bring high speed laser marking. Unit pulse power surge is lower than 1%. Easy control laser dot size, thickness and shape.
3. High speed 2-3 times over than traditional diode pumped marking machine.
4. Air-cooling smart machine size!
5. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).

Technical Parameter



Model BML10FPS BML10FP BML20FP BML30FH
Laser Power 10W 10W 20W 20W
Laser Wavelength 1064nm
Q-frequency 20KHz~30KHz
Divergence 0.3mard
Marking Range 100*100mm
Minimum Line Width 0.02mm
Minimum Character 0.15mm
Marking Depth 0 ~0.5mm
Engraving Line Speed ≤7000mm/s
Repeatability Accuracy ±0.001mm
Beam Quality M2:1.2~1.8
Marking Format Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date,Batchnumber,Serialnumber,Frequency,etc.
Graphic Format Supported bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working Voltage 220V±10%/50Hz/4A
Unit Power <0.5kw
Use of the Environment Clean and Dust Free or Dust less
Working Condition:Humidity 5%-75%,Free of Condensed Water
Laser Module Life >100000 hours






Applications

Applicable Industries:
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.

Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.

Samples

Fiber laser marker CE, SGS, FDA

Fiber laser marker CE, SGS, FDA

Fiber laser marker CE, SGS, FDA

Fiber laser marker CE, SGS, FDA

Fiber laser marker CE, SGS, FDA



Packaging & Shipping

Laser machine has high requirement for precision, therefore, before delivery after adjustment, our machine will be protected by many measurement to ensure the machine's safety and completion.

Fiber laser marker CE, SGS, FDA


Company Information



Jinan Bodor CNC Machine Co., Ltd. has been always devoted to the research and manufacture of CNC products such as laser cutting machines,laser engraving machines and laser marking machines. Today, Bodor CNC has developed into a large Manufacturing Group, and becomes an excellent leader in this field.

 Fiber laser marker CE, SGS, FDA

 Fiber laser marker CE, SGS, FDA

Fiber laser marker CE, SGS, FDA
