Help CenterFiber Optic Laser Cutting Stainless Steel 500W 1KW 2KW 3KW
Related Products
-
Hot Sale Fiber Optic Laser Cutting Metal/Fiber Laser 500W 1000W 2000W 30000WNegotiableMOQ: 1 Set -
Round Tube and Plate Dual-use Fiber Laser Metal Cutter-tubular ConstructionNegotiableMOQ: 1 Set
-
Fiber Laser Cutting Machine From Jinan BodorNegotiableMOQ: 1 Set
-
500W 1000W 2000W China Bodor Fiber Laser Engraving MetalNegotiableMOQ: 1 Set
-
200W/ 300W/ 400W/ 500W/1000W/ 2000W Fiber Metal Laser Cutting Machine Without MaintainUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
--500w fiber laser cutting machine:1USA Heigh-adjustable Laser Head
2 Japan Servo Motor and Imported Gear,Rack
3CE.FDA.SGS
Selecting Bodor . the world will become yours !
Product Features
BCL-FB Fiber sheet metal laser cutting machine adopts most sophisticated fiber laser, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed, linear guide drive. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Technical Parameter
| Model | BCL 1530FB | BCL 1540FB | Option |
| Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
| Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | SingleCoreJunctionSemiconductorModule | ||
| Max Cutting Speed | 25m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
| Min line width | 0.1nm | ||
| Cutting Depth | 0.2-6mm | ||
| Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight |
Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg |
||
Our Package Advantage:
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Gaurantee and after sale service:
--Gurantee the whole machine for 2 YEARS and laser tube for 4 months;
--Offer lifelong repair;
--Laser tube’s average life is 4000-10000 working hours(depends on the laser power);
--Offer 24 - hour technical support.
About Bodor
Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 12 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working,Bodor laser has developed to a large-scale international manufacturing company.More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers,2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 12 years,Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.
Bodor certificate
Bodor laser cutting machine --Exhibition show

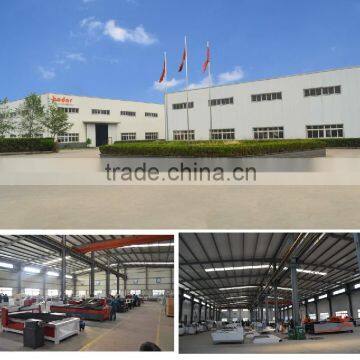

Our Factory

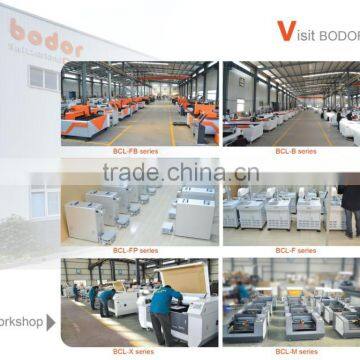

Our product line
--Metal cutting machine
--Laser engraving cutting machine
--Fiber laser machine
--Laser marking machine
--Small fiber laser making machine
Laser machine--Our Customer in Factory
Our Team
