200W/ 300W/ 400W/ 500W/1000W/ 2000W Fiber Metal Laser Cutting Machine Without Maintain
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
Qindao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Fiber Laser 2000 Watt Cutting MachineNegotiableMOQ: 1 Set -
Hot Sale 500W 1000w Fiber Laser Cutting Metal MachineNegotiableMOQ: 1 Set
-
Round Tube and Plate Dual-use Fiber Laser Metal Cutter-tubular ConstructionNegotiableMOQ: 1 Set
-
Hot Sale! Fiber Laser Metal Cutting Machine BCL- FC From BodorNegotiableMOQ: 1 Set
-
Fiber Laser Metal Cutting Machine BCL- FC Made in China BodorNegotiableMOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
Applicable Material
Metal
Cutting Thickness
0.2-20mm
Cutting Area
1500*3000mm, 1500*4000mm
Cutting Speed
25m/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
Cypcut control system
Graphic Format Supported
AI, BMP, DST, DWG, DXF, LAS, PLT
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL-FB
Certification
CE, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

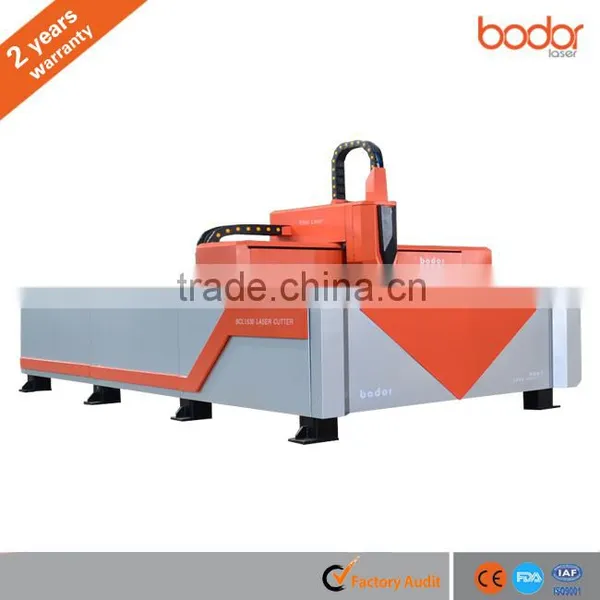

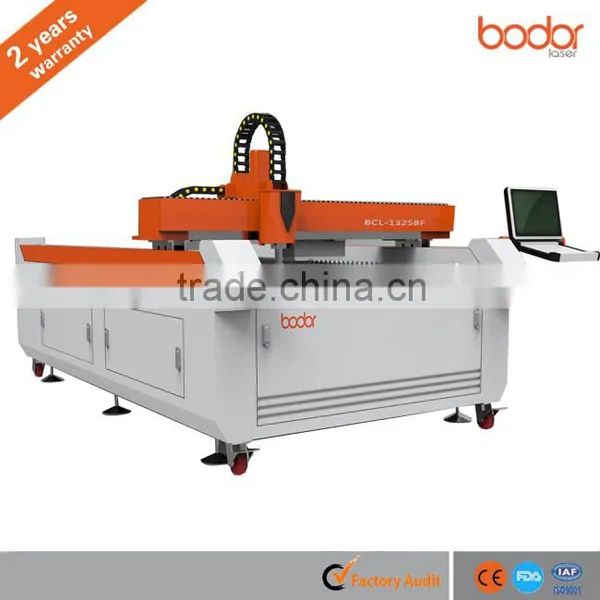

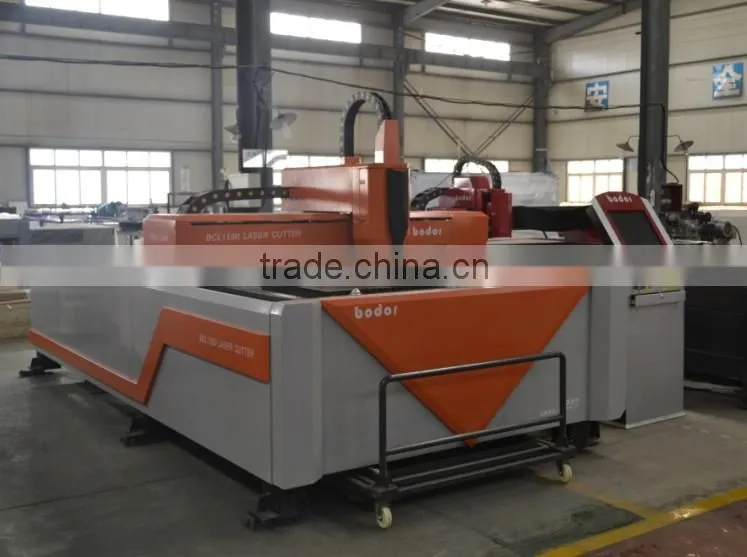

Fiber metal laser cutting machine
Main Features

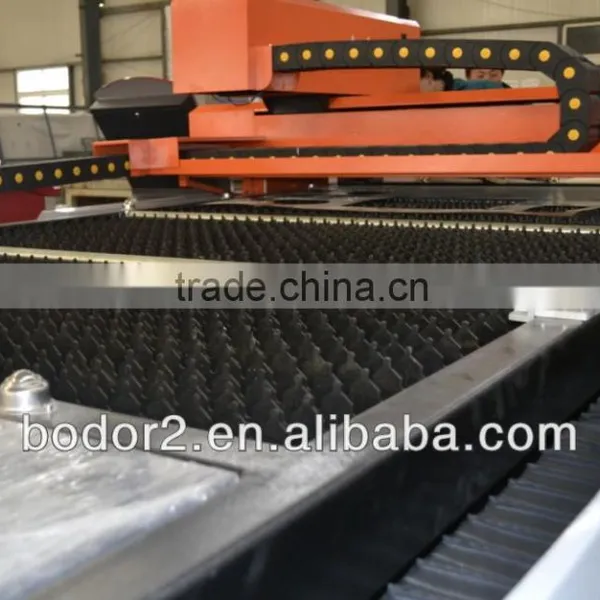

BCL-FB Fiber sheet metal laser cutting machine adopts most sophisticated fiber laser, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision and fast speed, linear guide drive. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity. It is mainly for cutting sheet metal below 6mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, alloy steel, copper, titanium and other metal materials' precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.

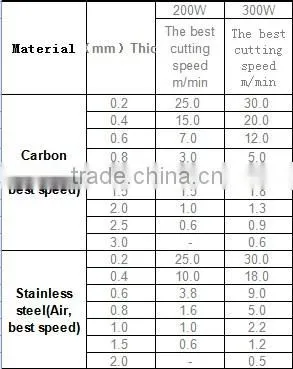

Technical Parameter
| Model | BCL 1530FB | BCL 1540FB | Option |
| Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
| Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
| Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
| Laser Medium | SingleCoreJunctionSemiconductorModule | ||
| Max Cutting Speed | 25m/min | ||
| Cooling Way | Water Cooling | ||
| Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
| Min line width | 0.1nm | ||
| Cutting Depth | 0.2-6mm | ||
| Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
| Power Requirements | 380V/50Hz/16A | ||
| Continuous Working Time | 24Hours | ||
| Related Weight |
Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg |
||
Adjust the height of laser head automatically

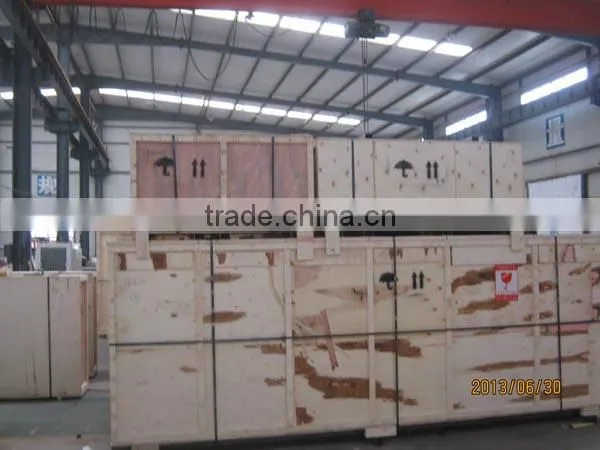

Packaging & Shipping
Packaging : standard wooden case
Shipping: by sea or air.
Our Services
2-year warranty
engineer avaiable to service machinary overseas

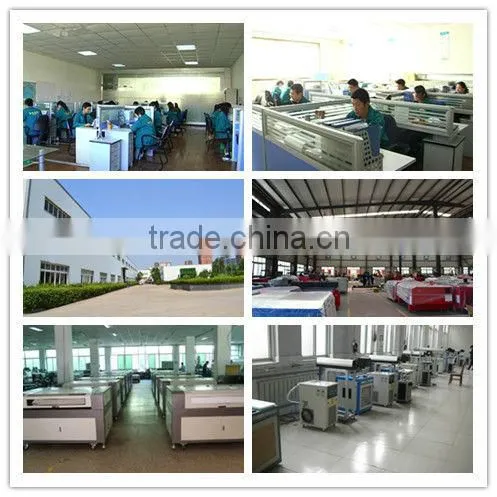

Company Information

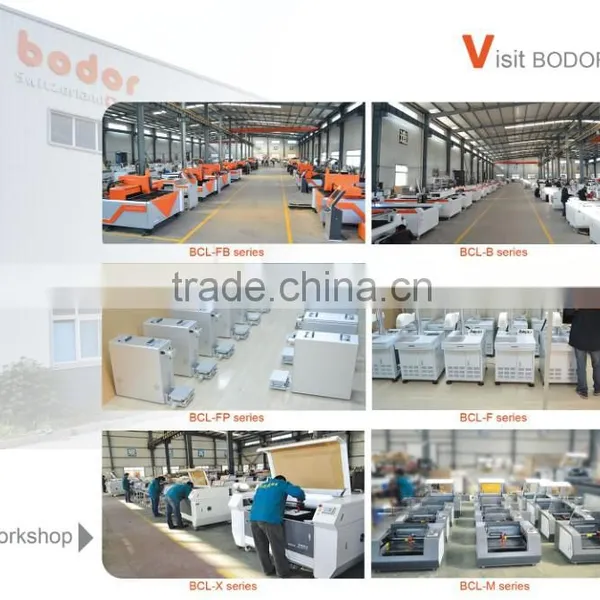

Bodor Laser,focus on laser cutting.engraving.marking industries
Jinan Bodor CNC Machine Co.,Ltd has been always devoting to the research and manufacturing of the CNC products such as Cutting, Engraving and Marking Machines and so on.Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.Bodor CNC was founded in 2002, and changed its name to "bodor" formly in 2008.We can supply Laser Cutting, Engraving and Marking Machines,Dot Peen Marking Machines, and many other industrial automation equipments.Meanwhile,we can also supply industrial automation sulutions according to your special needs ...
