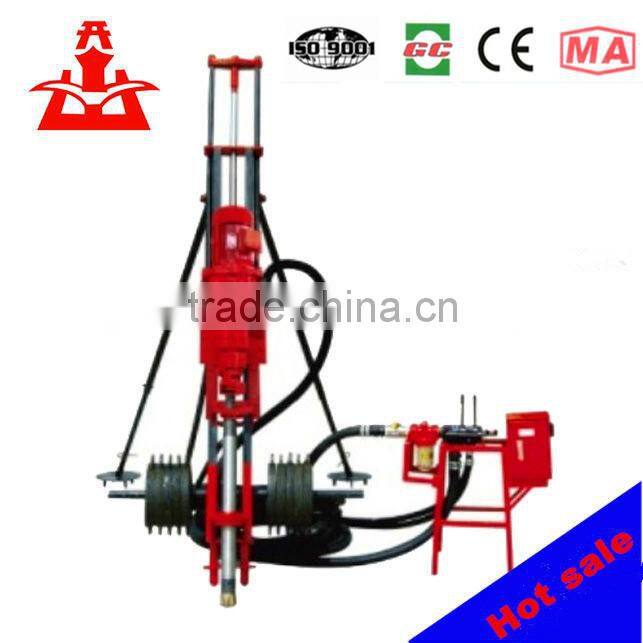

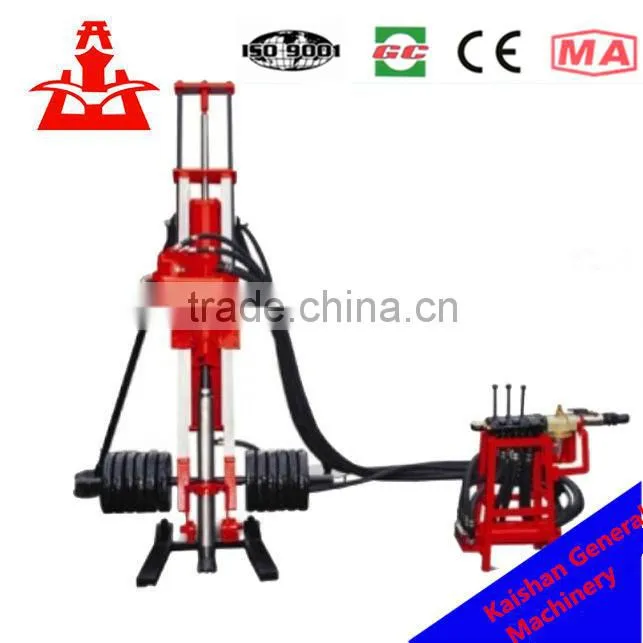

KQD100 water exploration down hole mutifuntional mobile device
KQD 100 Down the hole Drill rig/Small bore hole drilling machine
Specification :
1.High performance-all air driven down the hole drill
2.Simple structure and single dynamic
3.Adapt to any geological feature
4.Easy operating and move
5.Good noise reduction effect, reduce the pollution
KQD120 Down the hole drill:
It's used for drilling large blast hole.It's especially convenient to be used during the initial period of opencast working,other drill carriage unable to reach,unable to carry on the normal work.

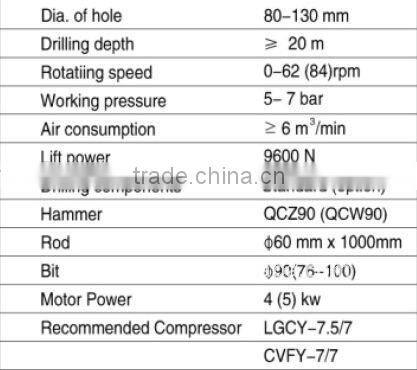

Details information:
| Model No | KQD100 |
| Hole diameter(mm) | ≥80-100 |
| Hole Depth(m) | ≥20 |
| Working Pressure(Mpa) | 0.5-0.7 |
| Air consumption(M3/min) | ≥6 |
| Motor Power(kw) | 4 |
More Technical Parameters:
| Model | Hole diameter | Hole depth | Working pressure | Air consumption | Remark |
| (mm) | (m) | (MPa) | (m3/min) | ||
| KQD 70 | 60--80 | ≥15 | 0.5—0.7 | ≥3.5 | 3kw |
| KQD100B | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
| KQD 100 | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
| KQD 120 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 5.5kw |
| KQD145B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
| KQD150B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
| KQD165 | 90-150 | ≥50 | 0.7-1.4 | ≥15 | 11kw |
Advantages :
A----Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.
B----In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
C----Centralized control mechanism,easy to operate.
D----Unique dual muffler,muffler effect, reducing environmental pollution
Hammer :
Part name |
QCZ90 |
Dirll hole dia. |
90-100mm |
Suitable drill rod |
Φ50 Φ 60 |
Capacity |
7m3/min |
Working pressure |
5-7bar |
Outside dia. |
80mm |
Length |
855mm |
Wight |
22kg |
Advantages
1.High performance-all air driven down the hole drill
2.Simple structure and single dynamic
3.Adapt to any geological feature
4.Easy operating and move
5.Good noise reduction effect, reduce the pollution
Advanced technology
A----Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.
B----In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
C----Centralized control mechanism,easy to operate.
D----Unique dual muffler,muffler effect, reducing environmental pollution

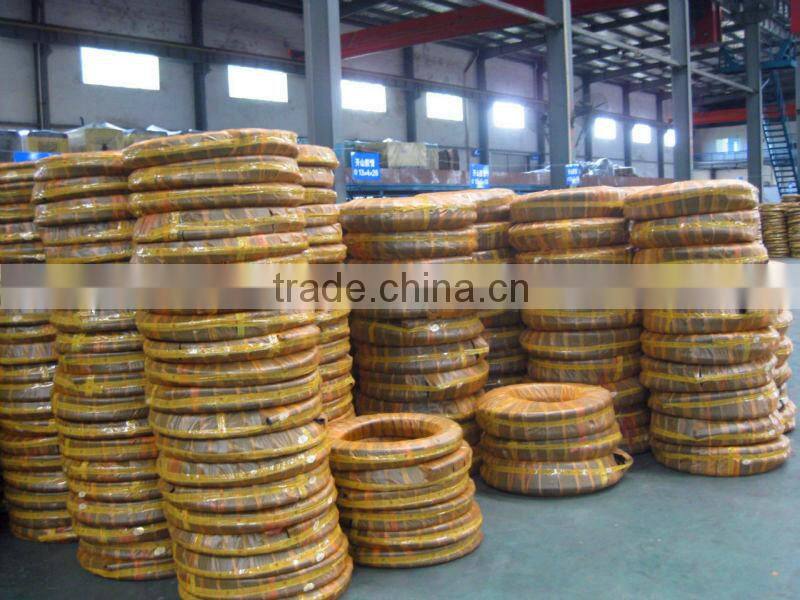

Matched air hose

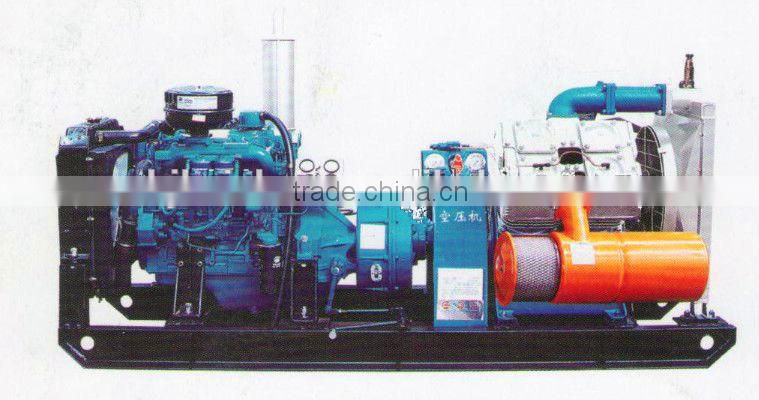

Air compressor for KQD100 pneumatic &electrical dth drilling machine

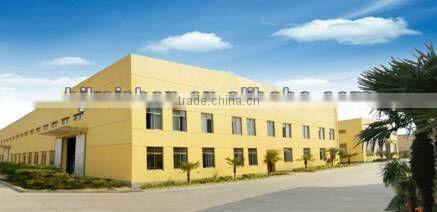

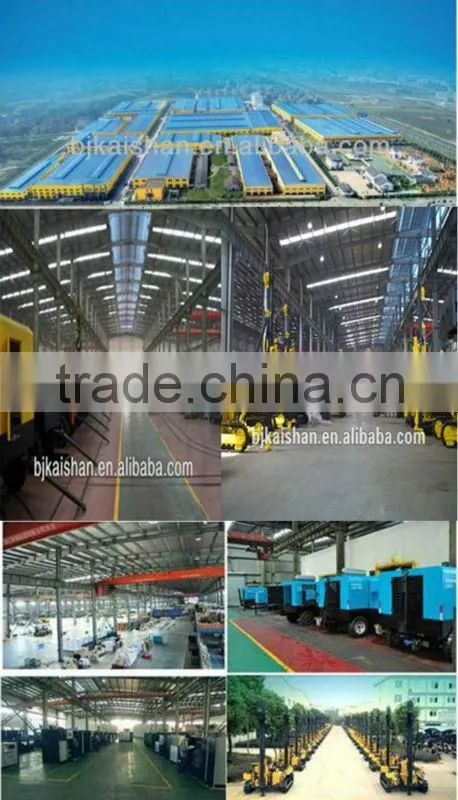

Company and cooperative pics dispaly
Certification for Kaishan brand KQD100 pneumatic &electrical dth drilling machine
