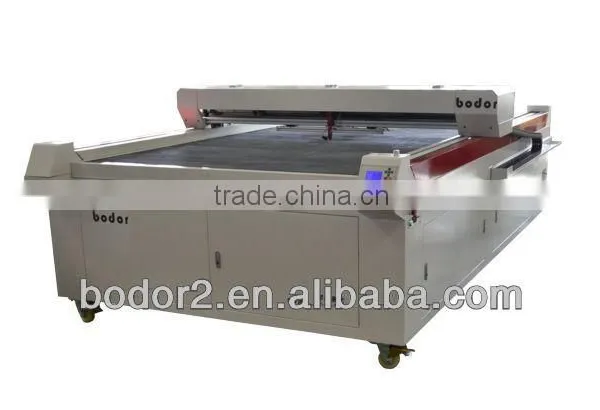

Hot Sale! Metal and Non-metal Double Use Mix Laser Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tinajin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Metal and Non-metal Double Use Mix Laser Cutting MachineNegotiableMOQ: 1 Set -
Mix Laser Cutting Machine for Metal and Non-metalNegotiableMOQ: 1 Set
-
Double or More Head Co2 Laser Cutting BedNegotiableMOQ: 1 Set
-
Metal Non-metal Multifunctional Cutting Bed BCL-XM/BM SeriesNegotiableMOQ: 1 Set
-
Hot Sale! Jinan Bodor Metal Non-metal Multifunctional Cutting Bed BCL-XM/BM SeriesNegotiableMOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Area
1300*2500mm
Cutting Speed
0-30000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
RD Control System
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL-XM/BM
Certification
CE, SGS, Other, CE, SGS, FDA,TUV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Computer control easy for complex design2. High accuracy and fast speed
3. CE,TUV,SGS,FDA certificated
Mix cutting machine BCL-XM/BM series
Metal and non-metal mix laser cutting machine with Economical and high cost performance , could meets your cutting requests for different materials.
Main Features
1.Economical with cost-effective metal and nonmetal laser cutting machine.
2.Stable machine's quality(2-year warranty),with comprehensive cutting applications(both able to cut stainless steel,carbon steel,arcylic,etc. metal and nonmetsl)
3.Lower investment cost,lower operating cost and lower maintance cost.
4.Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.
5. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.
6. Steady chassis: Stability and precision during high speed work.
7. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
8. High efficiency tube with stable laser path, life time around 10000 hours.
2.Stable machine's quality(2-year warranty),with comprehensive cutting applications(both able to cut stainless steel,carbon steel,arcylic,etc. metal and nonmetsl)
3.Lower investment cost,lower operating cost and lower maintance cost.
4.Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.
5. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.
6. Steady chassis: Stability and precision during high speed work.
7. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
8. High efficiency tube with stable laser path, life time around 10000 hours.
Technical Parameter
| Model | BCL1309XM | BCL1325BM | BCL1630BM | Option |
| Working Area | 1250*850mm | 1200*2500mm | 1500*3000mm | According to Demands |
| Laser Power | 150w mixed cutting laser head mixed-cutting laser tube | |||
| Laser Type | CO2 Sealed Laser Tube, 10.6μm | |||
| Cooling Type | Water Cooling | |||
| Laser Output Control | (0-100% Set by Software ) | |||
| Min. Engraving Speed | Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm | |||
| Highest Scanning Precision | 4000DPI | |||
| Positioning Accuracy | ±0.05mm/m | |||
| Positioning Speed | 20m/min | |||
| Max. Cutting Thickness | 40mm | |||
| Max. Cutting Speed | 20m/min | |||
| Controlling Software | DSP Control System | |||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS, etc | |||
| Compatible Software | TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD, All type of AUTOCAD software in cloth | |||
| Color Separation | Yes | |||
| Drive System | High-precision 3-phase Stepper Motor | |||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | |||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | |||
Applications
Applicable Industries:
Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and artcrfts industries,etc.
Applicable Materials:
non-metal materials: cloth, leather, paper, wood, bamboo, plexiglass, glass, thin film ,canvas etc.
Metal materials: stainless steel , carbon steel
Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and artcrfts industries,etc.
Applicable Materials:
non-metal materials: cloth, leather, paper, wood, bamboo, plexiglass, glass, thin film ,canvas etc.
Metal materials: stainless steel , carbon steel
