Specifications
1,European design china produce2,on sale 5% off
3.Delivery in time
4.Manufacturer.
5.Third party inspection is welcome.
Detailed specification

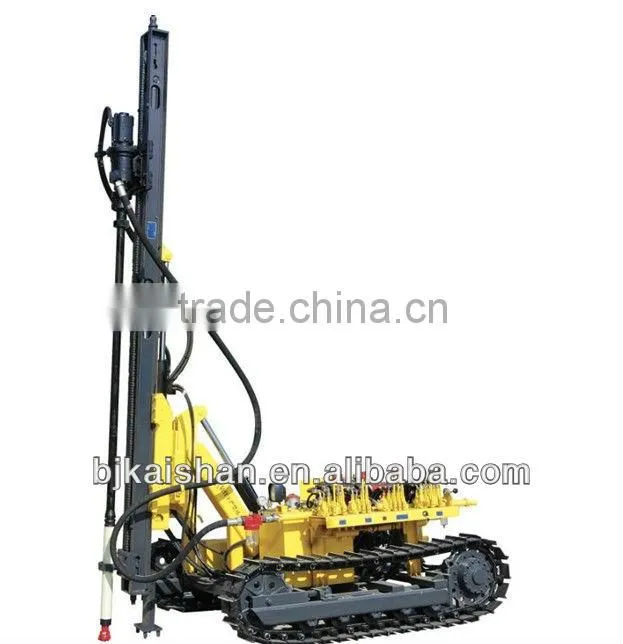

China drill rig manufacturer! Mining drilling rig model KG910A drill rig
Rock rigidity |
F=6-20 |
Diameter of hole |
Φ80-105mm |
Optium drilling depth |
25m |
Rotation speed |
105r/min |
Rotation torque |
980N.m |
Lift power |
15 KN |
Feed way |
oil cylinder-chain |
Feed distance |
2000mm |
Walk speed |
0-2.0 km/h |
gradeability |
30° |
Ground clearance |
254mm |
Weight |
3100kg |
Size of drill rig |
4100*2030*2020mm |
Sliding carriage pitch angle |
Blow 118.5°,elevation23.5, total 142° |
Sliding carriage swing angle |
Left36.5°,righ11.5,total 48° |
Drill boom pitch angle |
|
Drill boom pitch swing angle |
Left44°, right45°, total 89° |
Sliding carriage suppling length |
900mm |
power |
ZS1125GM(20.2KW 2200r/min) |
Drill pipe |
Φ60 |
Working air pressure |
0.7-1.0Mpa |
Air consumption |
9-13 m³/min |

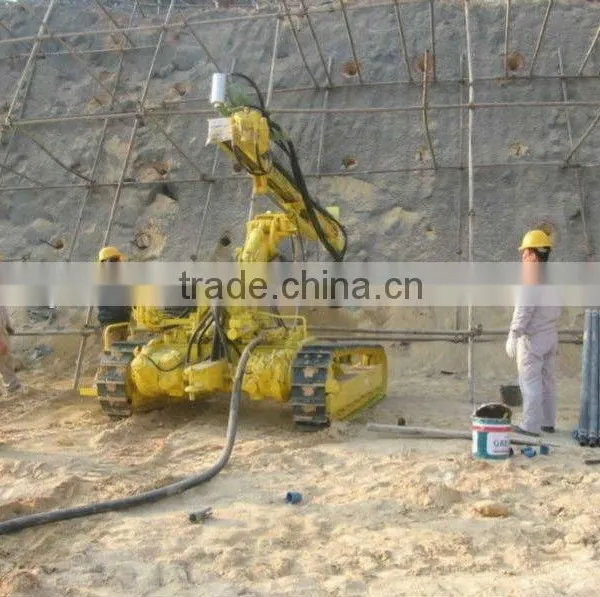

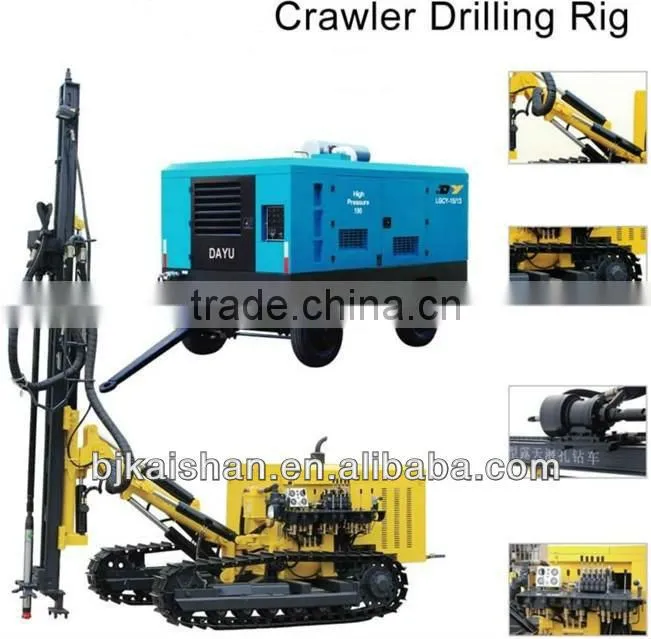

Detailed product picture

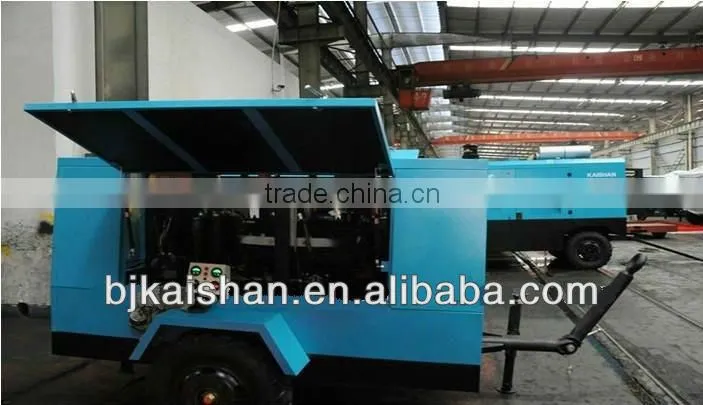

Matched diesel engine portable screw air compressor
LGCY-10/10 Diesel Driven portable Screw Air Compressor | ||
Air compressor | ||
Model No: |
LGCY-10/10 Kaishan brand |
|
Air capacity(m³/min/cfm) |
10(357) |
|
Work pressure(Bar/Psig) |
10(257) |
|
Fluid capacity(l) |
65 |
|
Compression Stage |
Double |
|
Diesel Engine | ||
Engine Model No. |
yuchai YC6M395L-K20 |
|
Cylinder bore stroke number of cylinders |
120*145*6 |
|
Capacity (L) |
9.839 |
|
Rated RPM (r/min) |
1800 |
|
Unload RPM(r/min) |
1400 |
|
Rated Power (KW/hp) |
93kw |
|
Fuel Capacity(L) |
530 |
|

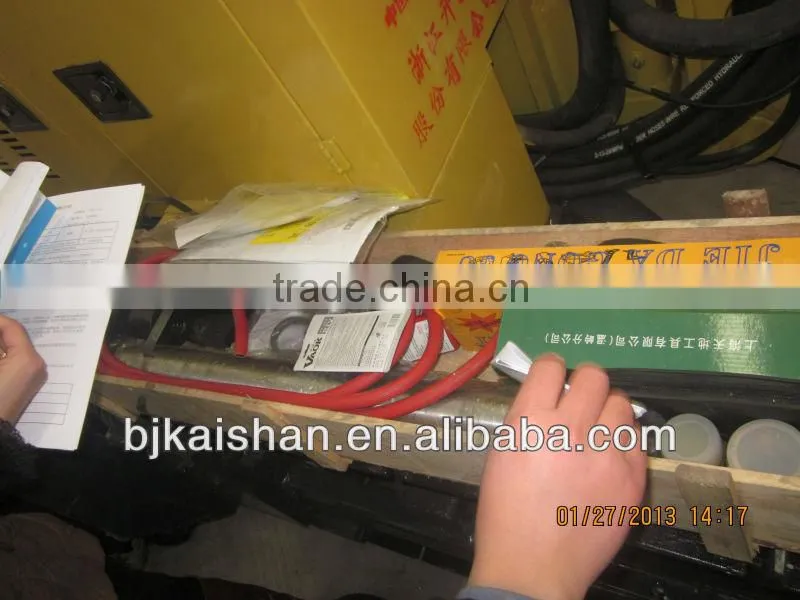

matched Drill rod/ drill bit /hammer
» » cooperation « «
About us:
1. KAISHAN is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable air compressor, breaking the monopoly of foreign brand in the air compressor.
2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor
3. Operation parameter is straightforward, with multiple warning and shut down protection device
Our Factory produce all kinds of air compressor and rock drill and drill rig, any feedback from you will be highly appreciate.
Ms.Susan.
Skype:air compressor1 mobile:+0086-13810843563
