Kaishan KW30 Water Well Drill Rig Drill Depth 300m Water Well Drilling Rig
- 100 Set / Sets per Month
- NINGBO SHANGHAI TIANJIN
- T/T Credit Card
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Place of Origin: | China | Brand Name: | Kaishan |
| Model Number: | KW30 | Voltage: | 220V | Dimension(L*W*H): | 5200*2300*3200 mm |
| Weight: | 9500KG | Certification: | ISO | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.Diameter of Hole:168-300 mm2.Drilling Depth:300 m
3.Air Consumption:16-40 m3/min
4.Working Pressure:10.5-24.6 bar
Introductions:

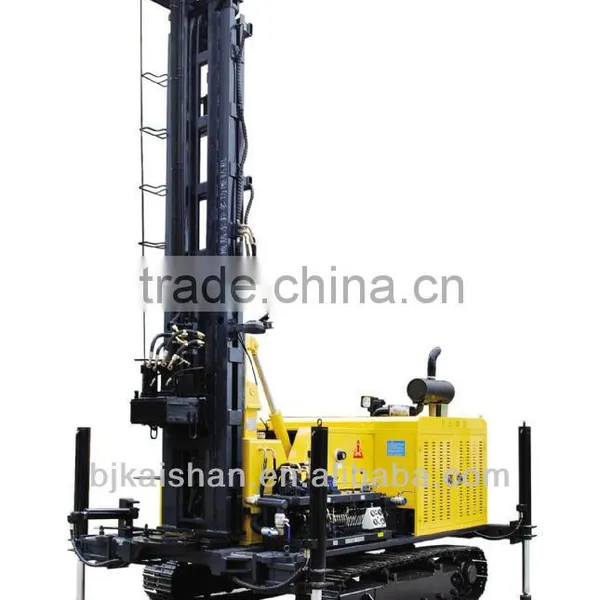

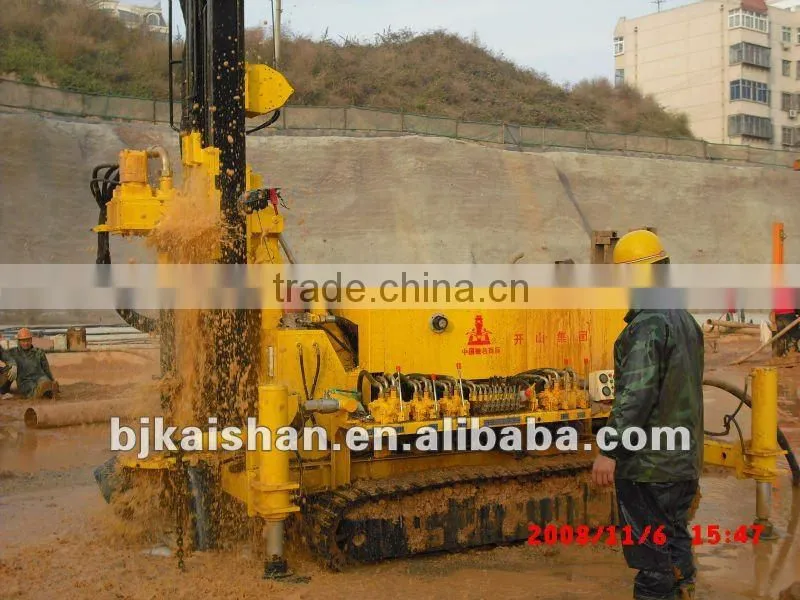

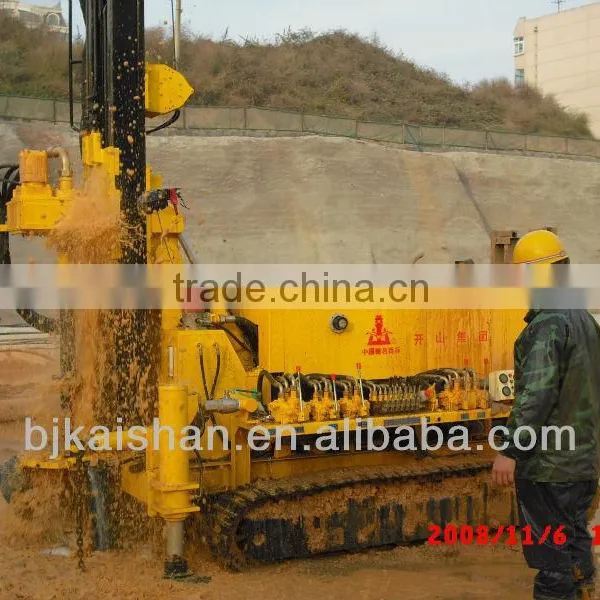

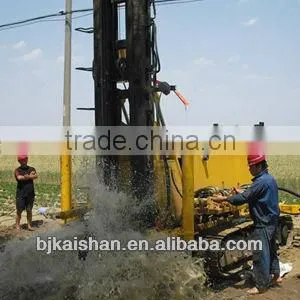

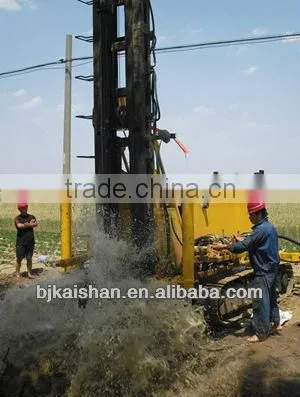

KW30 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by
the air compressor. It is well received by professionals of drilling well, irrigation well, geothermy well and other
well holes, especially for water intake projects in mountain areas and lithostrome. The drill rig can drill holes in
various stratum and the diameter of the hole reaches 300mm. It uses the latemodel hydraulics, large torque
hydraulic motor and cylinder system powered by wellknown multicylinder engine. Its unique pump package design
easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill
rig adopts crawler chassis and cross-country performance is very well.
Specification of KW30 Multi-Function Well Drill Rig
Structure | Parameters |
Diameter of Hole | Φ168-300 mm |
Drilling Depth | 300 m |
Air Consumption | 16-40 m3/min |
Working Pressure | 1.05-2.46 Mpa |
Ground Clearance | 280 mm |
Support Cylinder Stroke | 460 mm |
Feed Cylinder Stroke | 1750 mm |
Feed Power | 50000 N |
Lift Power | 150000 N |
Speed of Rotator | Low: 43/52/69 rpm; Quick: 85/102/125 rpm |
Rotation Torque | Low: 8000N.M; Quick:4000N.M |
Climb Capacity | 25 |
Traveling Speed | 0-2.5 km/h |
Weight | 9500 kg |
Dimension | 5200×2300×3200 mm(L*W*H) |

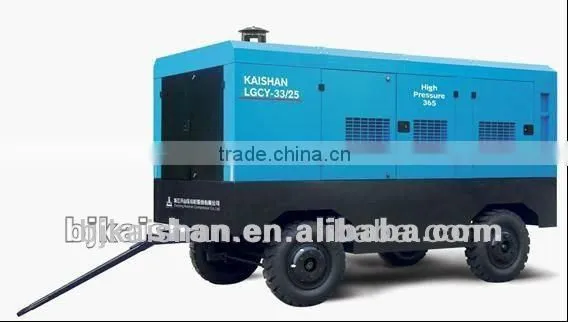

Specification of LGCY-33/25 Screw Air Compressor
Structure | Parameters |
Complete Machine | |
Model | LGCY-33/25 |
Capacity | 33(m³/min) |
Working Pressure | 25(Bar) |
Weight | 6800(kg) |
L×W×T | 4700×2100×2850(mm) |
Tyre Size × Number | 7.50-16×4 |
Diesel Engine | |
Diesel Manufacturer | Yu Chai |
Type | YC6K550L |
Model | Vertical, line,Water-cooled |
Breathing Method | Inter-cooling |
Bore × Stroke × Cylinder | 130×163×6 |
Rated Power | 550 (kw) |
Diesel Oil Capacity | 35(L) |
Tank Capacity | 600(L) |
Voltage | 24(L) |
Air Compressor | |
Compress Grade | 2 |
Compressor Oil Capacity | 80 |
Air Supply Valve Specification × No. | G2×1, G3/4×1 |
