KW10 Water Well Drilling Rig 100m~120m Water Well Drilling Rig

Name: KW10 Water Well Drilling Rig 100m~120m Water Well Drilling Rig
Brand: Kaishan
SKU: 101494875
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Drilling Speed:

50rpm-100rpm

Kaishan General Machinery Co., Ltd. (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Drilling Speed 50rpm-100rpm

Place of Origin Beijing, China

Brand Name Kaishan

Model Number KW10 Water Well Drill Rig

Voltage 380v

Power(W) 58kw

Dimension(L*W*H) 6000*2300*2500mm

Weight 6000 kg

Certification CE, ISO

After-sales Service Provided Overseas service center available

Specifications

Diameter of Hole: 152-254 mm
Drilling Depth: 30 -120 m
3.Air Consumption: 16-30 m3/min
4.16-30 m3/min: 10.5-24.6 Mpa

Introductions:

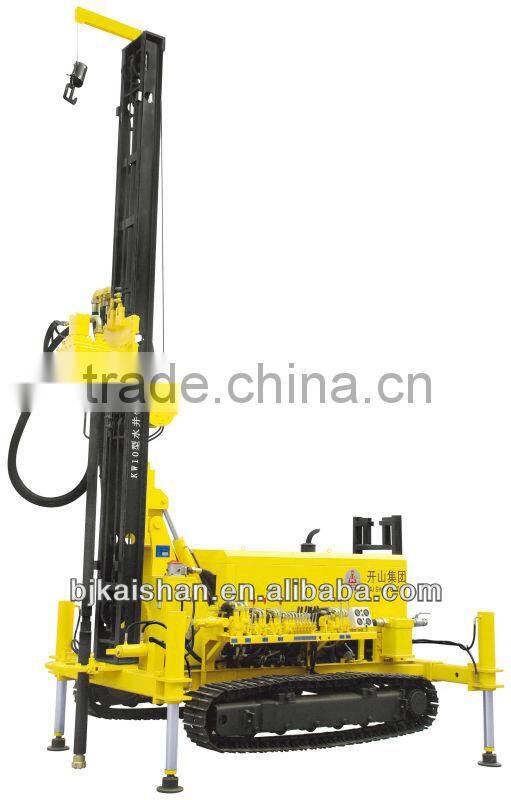

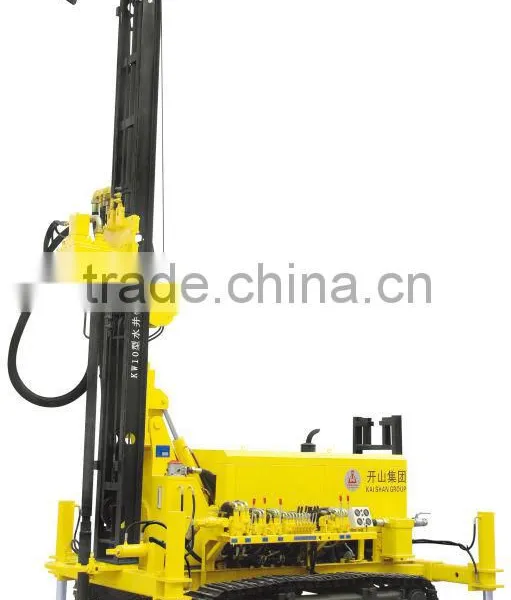

KW10 Water Well Drill Rig is a light, efficient and multifunction drilling plants. The power system is provided by the air compressor. It is

well received by professionals of drilling well, irrigation well, geothermy well and other well holes, especially for water intake projects in

mountain areas and lithostrome. The drill rig can drill holes in various stratum and the diameter of the hole reaches 254mm. It uses the

latemodel hydraulics, large torque hydraulic motor and cylinder system powered by wellknown multicylinder engine. Its unique pump

package design easy to maintenance and lower cost of upkeep. Its centralized hydraulic control board facilitates operation. The drill

rig adopts crawler chassis and cross-country performance is very well.

Specification of KW10 Multi-Function Well Drill Rig

Specification of LGCY-22/20 Screw Air Compressor

Structure	Parameters
Complete Machine
Model	LGCY-22/20
Capacity	22(m³/min)
Working Pressure	2.0(Mpa)
Weight	4850(kg)
Dimension L×W×T	4600×1950×2850(mm)
Tyre Size × Number	7.50-16×4
Diesel Engine
Diesel Manufacturer	Cummins
Type	6LTAA8.9-C325
Model	Vertical, line,Water-cooled
Breathing Method	Inter-cooling
Bore × Stroke × Cylinder	114×145×6
Rated Power	239 (kw)
Diesel Oil Capacity	27.6(L)
Tank Capacity	400(L)
Voltage	24(L)
Air Compressor
Model	SKY11G165
Compress Grade	2
Compressor Oil Capacity	48
Air Supply Valve Specification × No.	G2×1, G3/4×1
