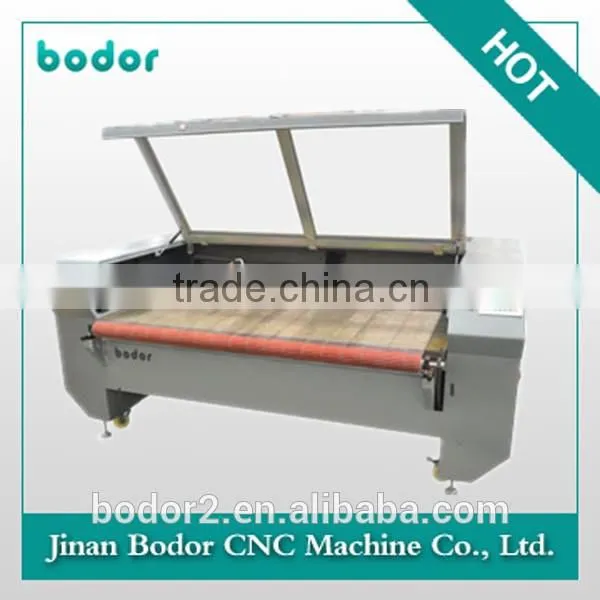

China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A

China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A thumbnail-1
China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Leather, Other, Leather, clothing, leather, carpet, suede fabric, denim jeans, stuffed toys
Contact Supplier Request Quote Chat Now
Jinan Bodor CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type CO2
Applicable Material Leather, Other, Leather, clothing, leather, carpet, suede fabric, denim jeans, stuffed toys
CNC or Not Yes
Cooling Mode Water Cooling
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Place of Origin Shandong, China
Brand Name Bodor
Model Number BCL1610XH2H(M)A
Certification CE, Other, CE, FDA
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Save time
reduce cost
improve work efficiency for you


Product Description



Main Features

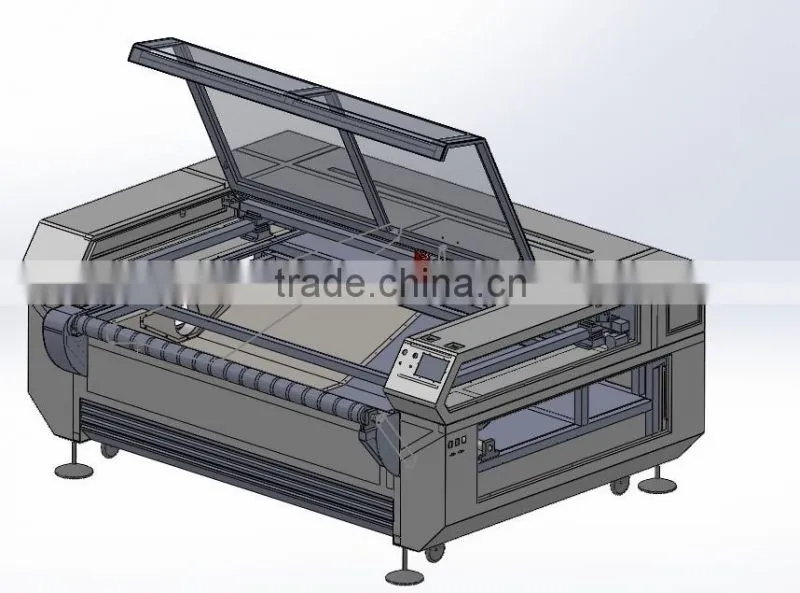

1.BCL1610XH2HA is the double-head auto feeding laser cutting machine which is independently researched and improved by bodor, it is one high speed and scientific auto feeding device . After improvement, it achieves, it achieves to keep on working and collecting material automatically, and make sure the integrity of material at same time.
2. BCL1610XH2HMA with electric laser head that can move freely, you could adjust distance between two heads according your needs. It is no need to move by hand any more .Each head can finish whole format processing work independently.

China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)AChina Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A

Technical Parameter

Model BCL1610XH2HA BCL1610XH2HMA Option
Amountof Laser Head Double-head Double-head According to Demands
Lase Head Adjustment Manually Electrically
Working Area 1600*1000mm 1600*1000mm
Laser Power 60w/80w/100w/130w/150w
Laser Type CO2 Sealed Laser Tube,10.6μm
Cooling Type Water Cooling
Max.Moving Speed 1600mm/s
Max.Working Speed 1400mm/s
Laser Output Control 0-100% Set by Software
Min.Character Engraved Chinese:2.0mm×2.0mm,Englishletter:1.0mm×1.0mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤+0.02mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Smoke Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ
Working Environment Temperature0-45°C,Humidity5-95%(No Condensate Water)



Applications

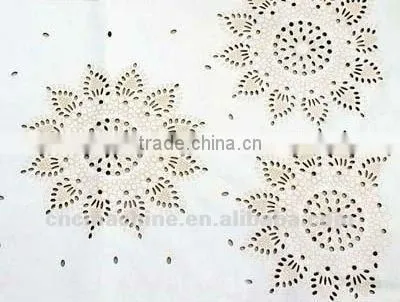

Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet, suede fabric, denim jeans, stuffed toys, textiles, industrial fabrics etc.

China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)AChina Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A



Packaging & Shipping



China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)AChina Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A




Our Services



China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A



Warranty and after sale service:



Warranty the whole machine for 2 YEARS and laser tube for 4 months; offer lifelong repair; laser tube’s

average life is 4000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.


Company Information

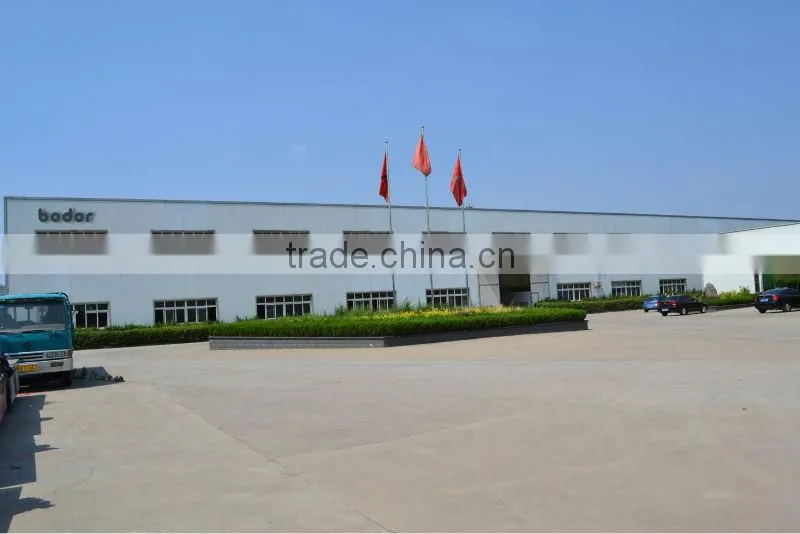

About Bodor

Jinan Bodor CNC Machine Co.,Ltd has been always devoting to the research and manufacturing of the CNC products such as Cutting, Engraving and Marking Machines and so on.Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.

Bodor CNC was founded in 2002, and changed its name to "bodor" formly in 2008.We can supply Laser Cutting, Engraving and Marking Machines,Dot Peen Marking Machines, and many other industrial automation equipments.Meanwhile,we can also supply industrial automation sulutions according to your special needs.

Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology,standardized producing management,stable products,and the best services.Through years of international marketing experience,we have established business relationships with customers from North America,West Europe,South Asia,and Middle East,etc.Welcome to join the world of Bodor CNC,you can experience the world-class products and services together with our customers all over the world.

China Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)AChina Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)AChina Bodor Doublei-head (Movable) Auto Feeding Laser Cutting Machine BCL1610XH2H(M)A
